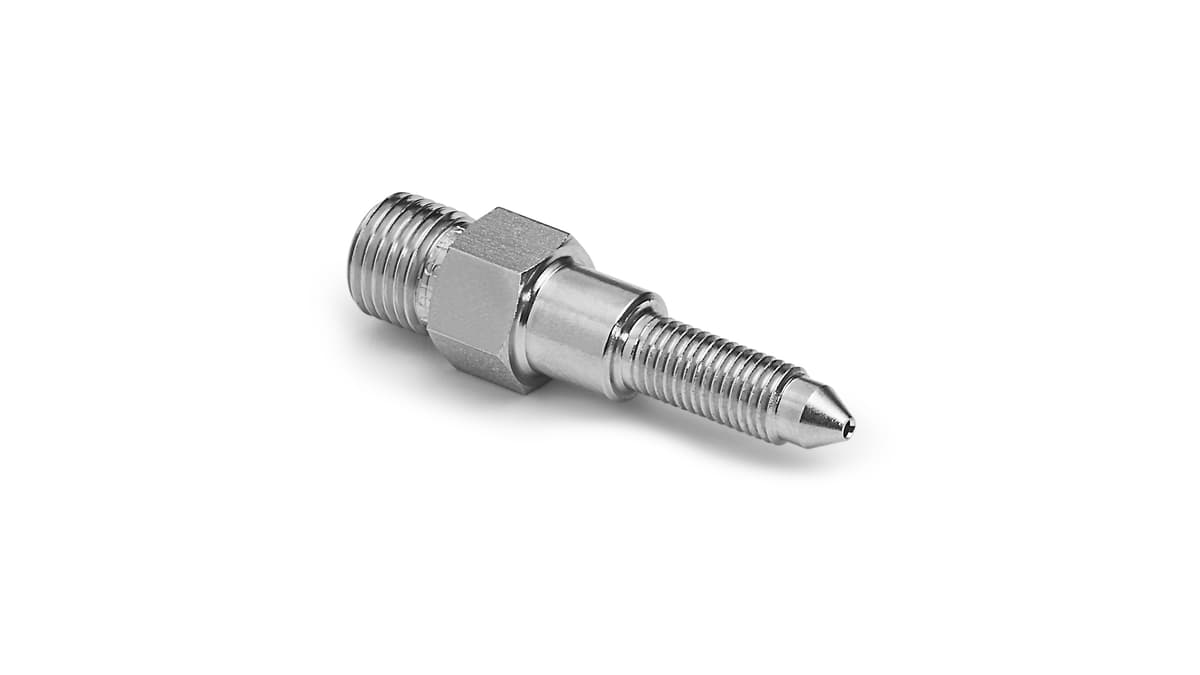

Ralston DP Transmitter Quick-test Adapters
Bleed-port × male Quick-test adapters for DP transmitters and gauge valves — connect a Quick-test hose when the transmitter is not on an accessible manifold
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
DP Transmitter Quick-test adapters connect a Quick-test hose directly to a gauge valve or transmitter bleed port when the transmitter is not mounted on an accessible 3-valve manifold.
- Match the bleed-port thread on your transmitter or manifold
- Male Quick-test hose end, no check-valve
- Max pressure 5,000 psi / 350 bar / 35 MPa
- Stainless steel
- Made in USA
Part of the Ralston Quick-test system of safe, stable, leak-free connections without a wrench.
Shipping and tax are confirmed when we review your order.
OEM family: DP Transmitter Quick-test Adapters (https://www.ralstoninst.com/dp-transmitter-quick-test-adapters).
Specifications
| Family | DP Transmitter Quick-test Adapters |
| Process connection | Transmitter / gauge-valve bleed port (thread varies by model) |
| Hose connection | Male Quick-test |
| Max pressure | 5,000 psi / 350 bar / 35 MPa |
| Materials | Stainless steel |
| Country of origin | USA |
Build your part number
Configure your QTHA-DP
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model to build your part number.
Choose the bleed-port thread that matches your DP transmitter, manifold, or gauge valve. No check-valve. For Quick-test XT hose use the XT DP adapters page. Shipping and tax are confirmed when we review your order.
Ordering information
8 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| QTHA-ABS0 | M6 x 0.75MM x male Quick-test, no check-valve, S.S. | $78.22 | |
| QTHA-EHS0 | DP Transmittter adapter for DP Transmitters with M8 x 1.25 bleed plugs, S.S. | $62.97 | |
| QTHA-FRS0 | 5/16"-24 UNF x male Quick-test, no check-valve, S.S. | $52.06 | |
| QTHA-FRS0-SN | 5/16"-24 UNF (short threads) x male Quick-test, no check-valve, S.S. | $89.27 | |
| QTHA-HNS0 | 1/4"-28 UNF X male Quick-test, no check-valve, S.S. | $56.92 | |
| QTHA-NPS0 | 1/4"-20 UNC Male Bleed Port x male Quick-test adapter, S.S. | $104.19 | |
| QTHA-RGS0 | M8 x 1.0 gauge valve bleed port x male Quick-test adapter, S.S. | $104.97 | |
| QTHA-SES0 | M6 x 1mm Transmitter x Male QT Adapter, S.S. | $93.48 |
