Electrical Test Instruments

Electrical test instruments for industrial maintenance and troubleshooting — multimeters, clamp meters, insulation testers, voltage detectors, and related tools, primarily from REED Instruments, with ISO/IEC 17025 accredited calibration available on most meters.

Choosing an electrical tester

• Multimeters — voltage, current, resistance, and often temperature or capacitance in one handheld.
• Clamp meters — measure current without breaking the circuit; look for True RMS on non-sinusoidal loads.
• Insulation / continuity — megohm and continuity checks for motors, cables, and panels.
• NCV / specialty — non-contact voltage detectors, phase rotation, and GFCI/receptacle testers for quick field checks.

Safety

Match the meter’s CAT rating and voltage range to the work. Use fused leads and rated PPE for the circuit under test.

Models in this category

Clamp meters

• REED R5015 True RMS Mini Clamp Meter: measures AC/DC current/voltage, resistance and capacitance.
• REED R5020 AC Clamp Meter: measures AC current, AC/ DC voltage, resistance, capacitance, frequency, duty cycle and temperature.
• REED R5030 AC/DC Clamp Meter: measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature.
• REED R5040 AC/DC Clamp Meter: measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature.
• REED R5055 AC/DC Clamp Meter: measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle, and contact temperature.
• REED R5065 Flexible 18" Current Probe: expands clamp meter measurement range to 3000A AC.
• REED R5075 Professional Clamp Meter, Solar, CAT. III 1500V: measures AC/DC current and voltage, resistance, capacitance, frequency, and contact temperature.
• REED R5720 AC Leakage Clamp Meter

Insulation testers and ground testers

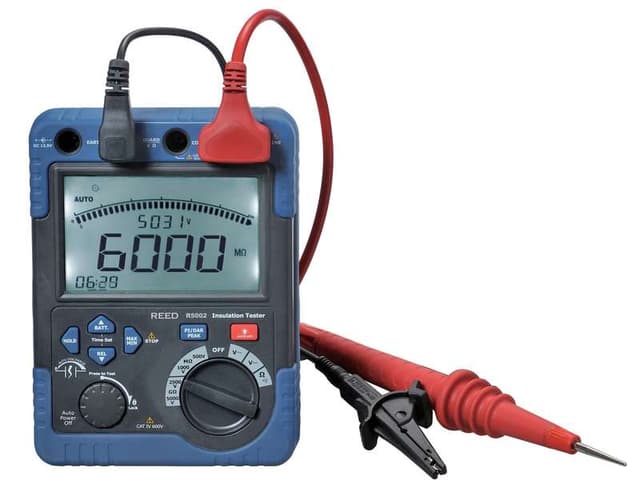

• REED R5002 Digital High Voltage Insulation Tester: 500V, 1000V, 2500V and 5000V test voltages, insulation resistance to 60GΩ, with PI and DAR.
• REED R5600 Insulation Tester (Megohmmeter): 250V, 500V or 1000V test voltages, insulation resistance to 2000MΩ, with a Lo Ω function.
• REED R5710 Clamp-On Ground Resistance Tester: auto-ranging ground resistance and leakage current measurements.

Multimeters

• REED R5005 Multimeter: measures AC/DC voltage and current, frequency, resistance, capacitance and temperature.
• REED R5010 AC/DC Digital Multimeter: true RMS measures frequency, resistance, capacitance and temperature.
• REED R5077 True RMS Digital Multimeter, AC/DC 1000V: measures AC/DC voltage and current, frequency, resistance, capacitance and temperature.
• REED R5099 Compact Multimeter with NCV: measures AC/DC voltage and current, resistance, capacitance,frequency, diode and continuity.

Motor rotation and phase rotation testers

• REED R5004 Motor Rotation and 3-Phase Tester: LEDs show motor rotation and phase status (clockwise or counterclockwise, and whether each phase is live), 40 to 600V.
• REED R5044 Non-Contact Phase Rotation Tester: non-contact voltage sensing alligator clips check phase rotation from 75 to 1000VAC.

Voltage, circuit and power testers

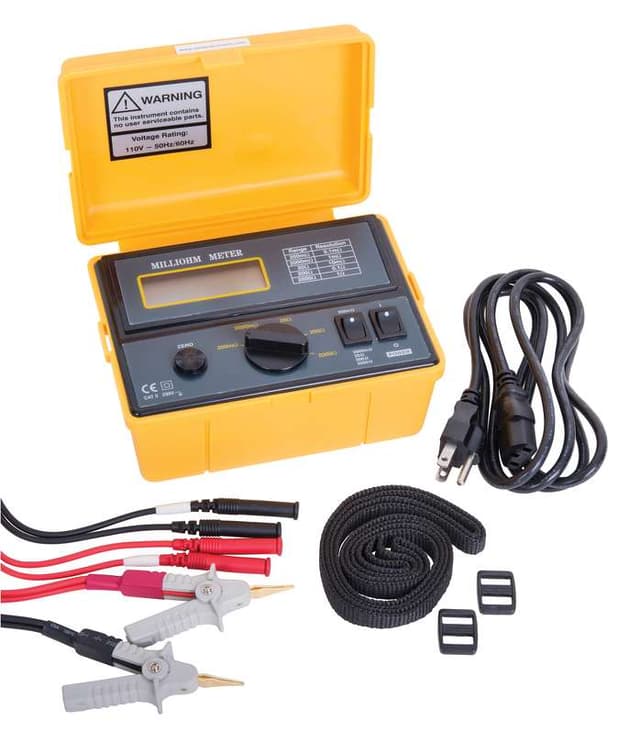

• REED K5090 Milli-Ohmmeter: 4 terminal input for high accuracy of low resistance.

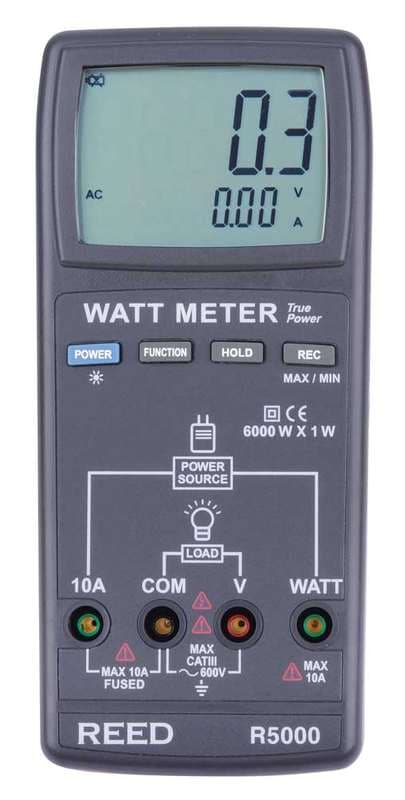

• REED R5000 Watt Meter: measures Watt, AC Voltage/Current and Power Factor.

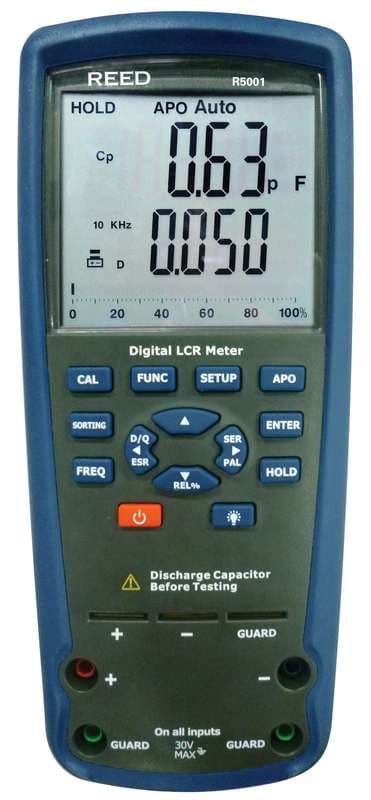

• REED R5001 LCR Meter: measures inductance, capacitance and resistance.
• REED R5003 Dual Input TRMS AC Voltage/Current Datalogger: datalog up to 256,000 AC voltage and current measurements.
• REED R5090 Power Meter: calculates operating costs of electronic devices.
• REED R5110 Non-Contact Voltage Detector with Flashlight: suitable for receptacles or against insulated wire.
• REED R5120 Non-Contact Voltage Magnetic Field Detector: check receptacles or insulated wire for presence of AC voltage.
• REED R5210 Receptacle Tester with GFCI
• REED R5300 Continuity Tester: local and remote continuity tester.
• REED R5320 Wire Tracer and Circuit Testing Kit
• REED R5330 Advanced Cable Locator: LCD screens display signal strength, transmission code, and voltage presence.
• REED R5340 Cable Length Tester: measures cable lengths up to 100,000 feet (30km).
• REED R5400 Line Splitter: enables user to measure AC current on a 2-wire or 3-wire power cord to 15A.
• REED R5406 Capacitance Decade Box
• REED R5408 Resistance Decade Box
• REED R5500 Circuit Breaker Finder: simply plug the transmitter into a receptacle and scan breaker box to identify the circuit.

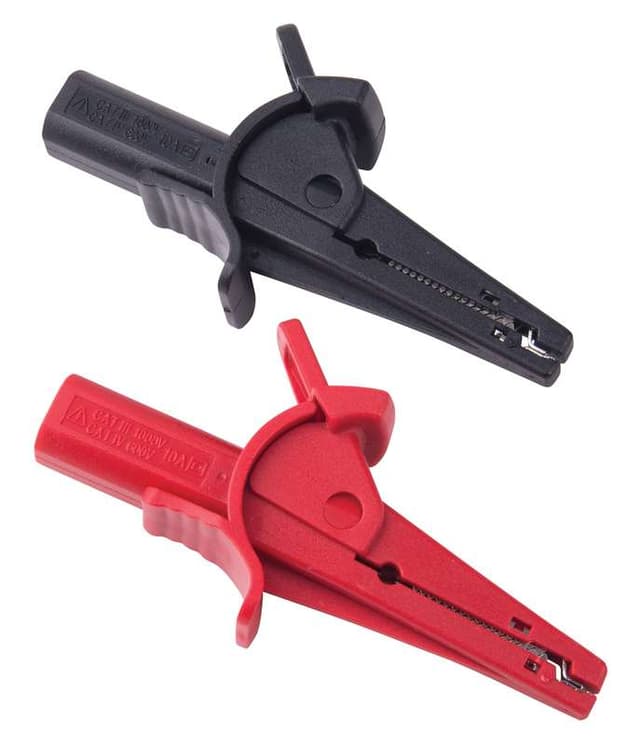

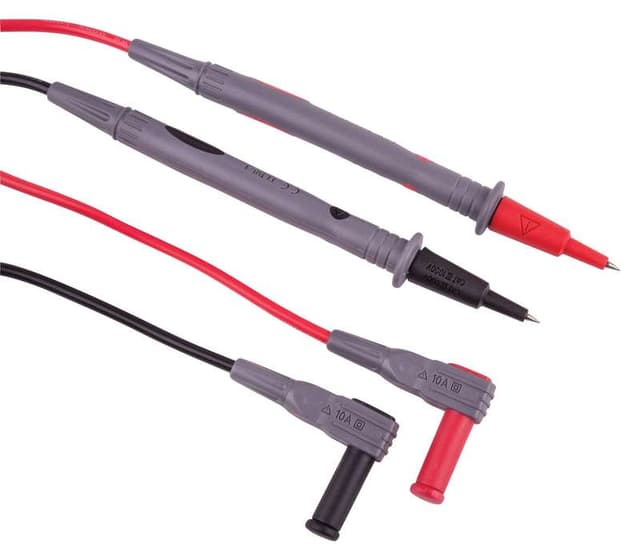

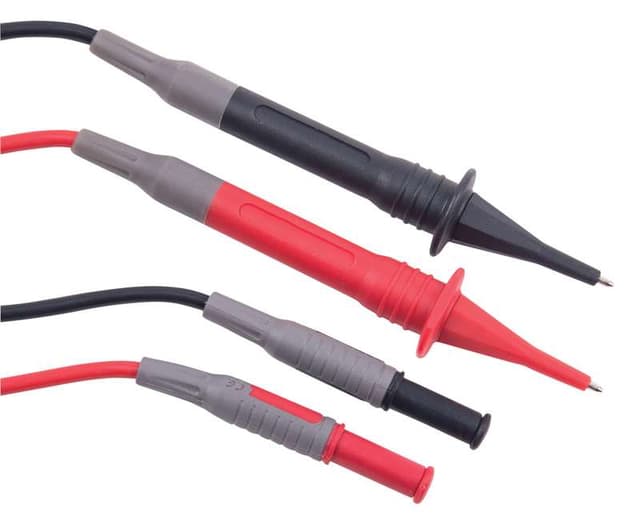

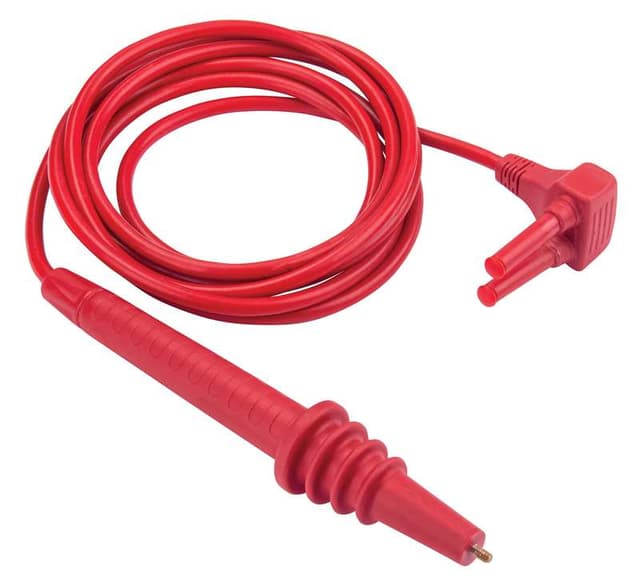

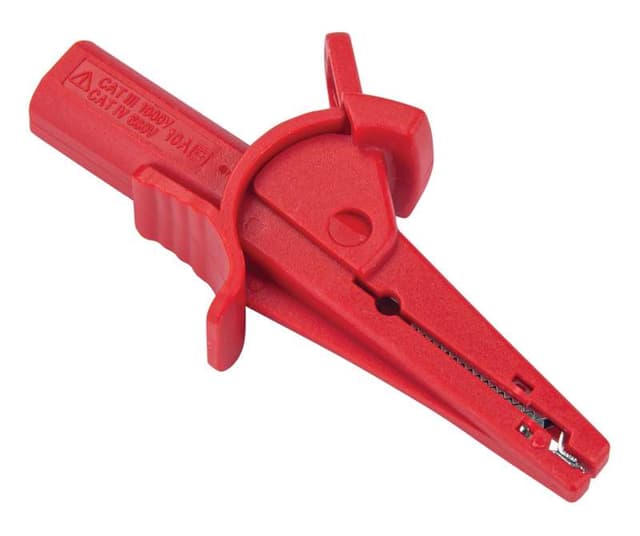

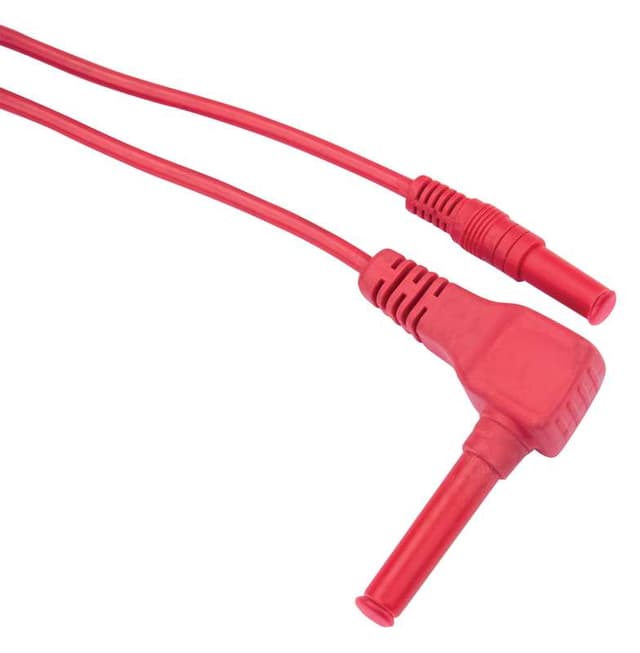

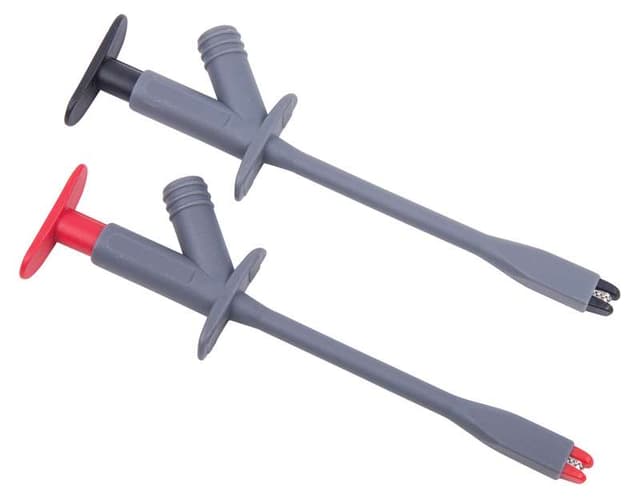

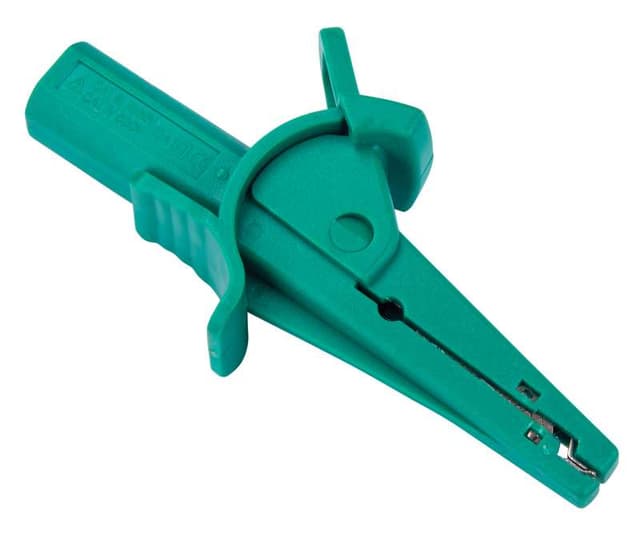

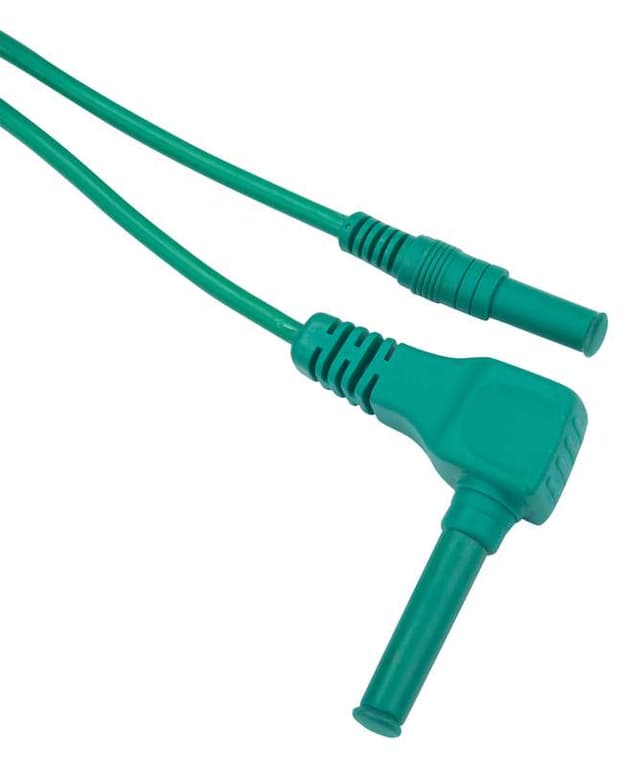

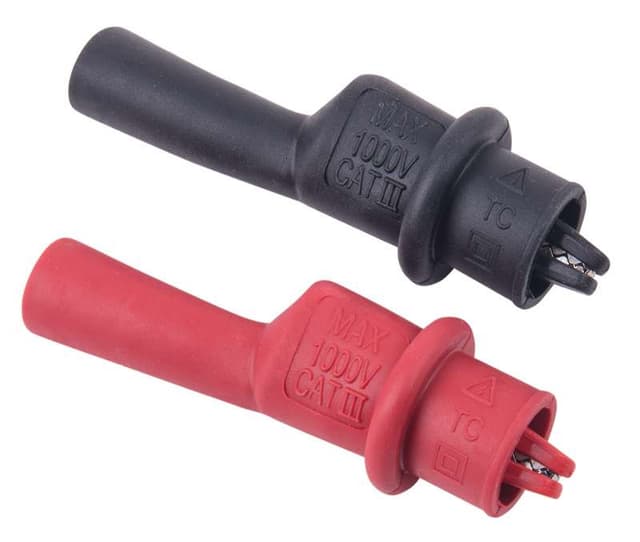

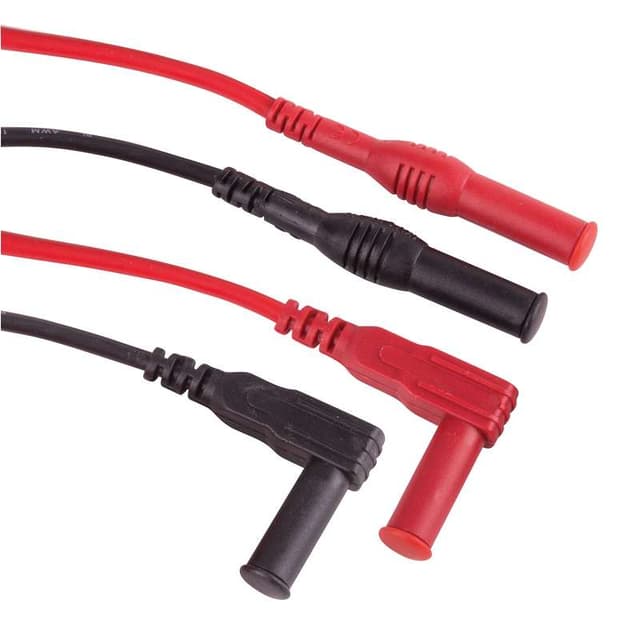

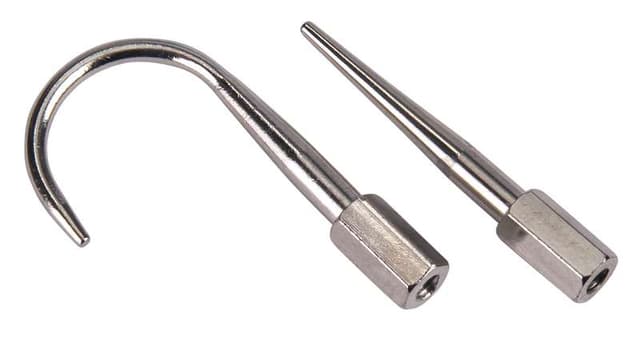

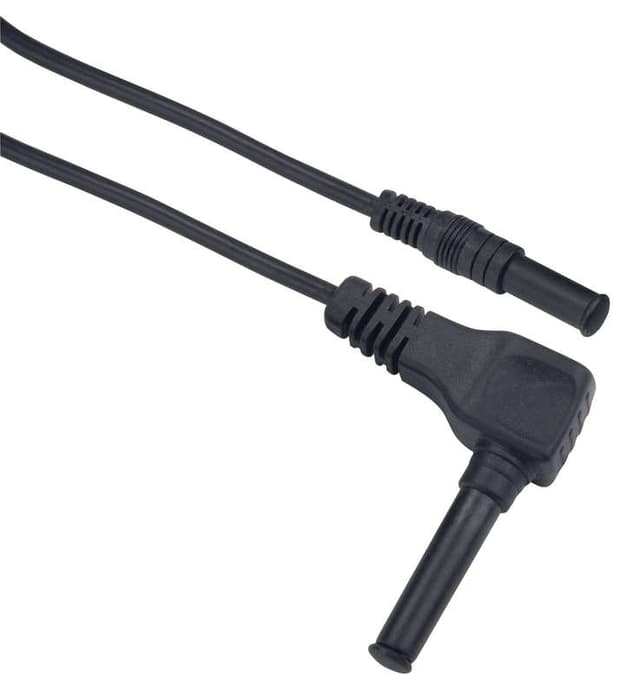

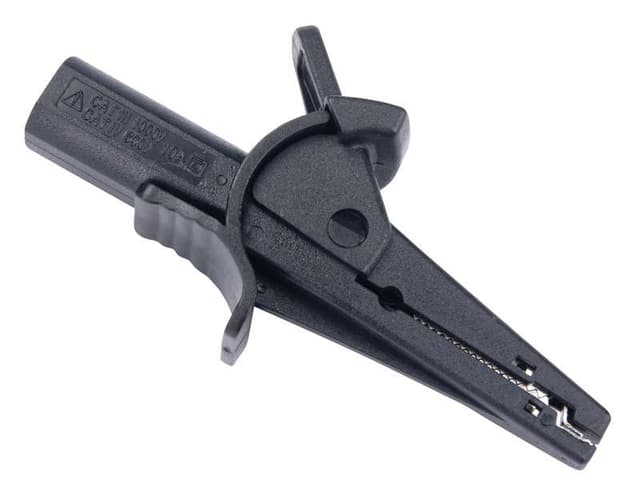

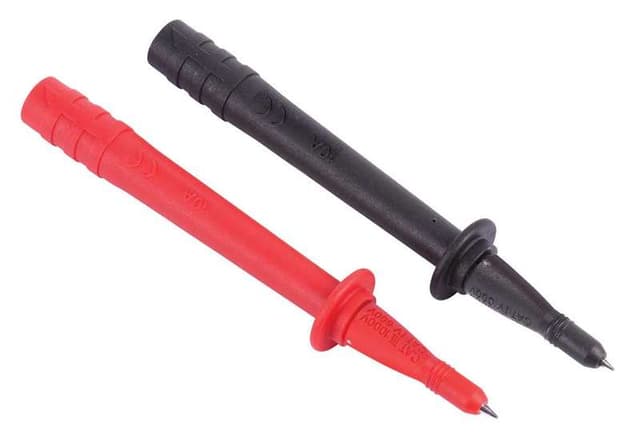

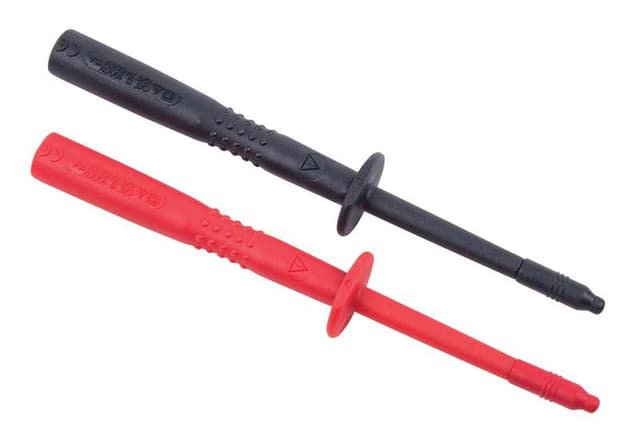

Accessories and replacement parts: REED R1000 Safety Test Lead Set, REED R1020 Fused Test Lead Set, REED R1020-Fuse Replacement Fuse For R1020 Test Leads, REED R1050 Basic Test Lead Set, REED R1100 Test Probe Set, REED R1110 Test Probe Set, REED R1120 Safety Test Probe Set, REED R1130 Test Probe Set, REED R1140 Electronic Test Probe Set, REED R1200 Plunger Style Alligator Clip, REED R1210 Safety Alligator Clips, REED R1220 Alligator Clip Set, REED R5002-Clipb Replacement Black Alligator Clip For R5002, REED R5002-Clipg Replacement Green Alligator Clip For R5002, REED R5002-Clipr Replacement Red Alligator Clip For R5002, REED R5002-Hook Replacement Hooks For R5002, REED R5002-Probe Replacement Red Test Probe For R5002, REED R5002-TLB Replacement Black Test Lead For R5002, REED R5002-TLG Replacement Green Test Lead For R5002, REED R5002-TLR Replacement Red Test Lead For R5002, REED R5003-ADP-NA Replacement Power Adapter For R5003, REED R5077-Fuse Replacement 1000V/10A Fuse For Reed R5077, REED R5110-10PK AC Voltage Detector With Flashlight, REED R5600-Clip Replacement Alligator Clip For R5600, REED R5600-Stand Replacement Kickstand For R5600, REED R5900 Magnetic Hanging Strap For R5600 & R5007.

Calibration

Most electrical meters here can ship with ISO/IEC 17025 accredited calibration. Tell us which functions and ranges matter for your procedure.

Frequently asked questions

Which clamp meter should I choose?

• R5015: true RMS mA clamp with 0.1 mA AC resolution, for low-current work.
• R5030: AC/DC, 50 and 500 A ranges.
• R5040: AC/DC, 50 and 1000 A ranges.
• R5055: 1.7" (42 mm) jaw, rated CAT III 1000 V / CAT IV 600 V.
• R5075: solar clamp meter rated CAT III 1500 V, to 999.9 A.
• R5065: 18" flexible current probe that extends a clamp meter to 3000 A AC.

Which multimeter logs data or connects wirelessly?

The REED R5005 is a true RMS multimeter and data logger with Bluetooth, rated IP67 and CAT IV 600 V. Other true RMS options are the R5010 and R5077. The R5099 is a compact multimeter with non-contact voltage (NCV) detection.

Which insulation tester should I choose?

It depends on the test voltage and resistance range you need. - R5600 megohmmeter: 250 V, 500 V and 1000 V test voltages, reading up to 2000 MΩ, rated CAT III 1000 V. - R5002 high voltage insulation tester: 500 V, 1000 V, 2500 V and 5000 V, reading up to 60 GΩ, with polarization index (PI), dielectric absorption ratio (DAR) and a 1 to 15 minute test timer. Rated CAT IV 600 V.

Which motor rotation tester or phase rotation tester should I use?

• R5004 Motor Rotation and 3-Phase Tester: LEDs display motor rotation and phase status; tests phase orientation from 40 to 600 V, 2 to 400 Hz. Rated CAT III 600 V.
• R5044: checks phase rotation without contact, using voltage-sensing alligator clips (75 to 1000 VAC), with LED and beeper indication. Rated CAT III 1000 V / CAT IV 600 V.

Which meters measure low or ground resistance?

• K5090 Milli-Ohmmeter: 4-terminal input, 200 mΩ range at ±(0.75% rdg. + 4 dgt.).
• R5710: clamp-on ground resistance tester with auto-ranging ground resistance and leakage current measurement.
