REED Instruments

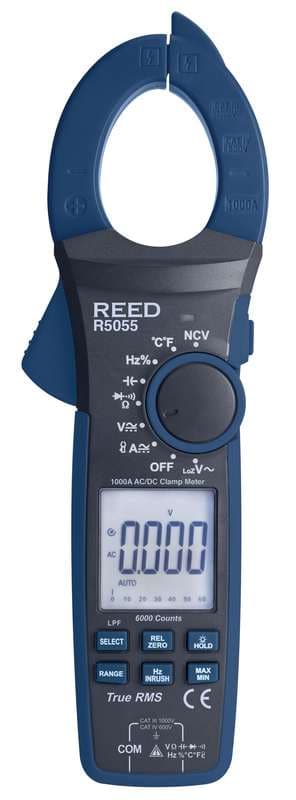

Reed R5055 Clamp Meter Trms
Model R5055
REED R5055 AC/DC Clamp Meter: measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle, and contact temperature. 6,000-count backlit LCD display and analog bargraph.
From $199.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5055 is an AC/DC clamp meter from REED Instruments.
Features (REED datasheet)
- Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle, and contact temperature.
- 6,000-count backlit LCD display and analog bargraph.
- Flexible current probe can expand AC current measurements up to 3000A; (R5065, sold separately).
- Ergonomic design fits in your hand and can be used while wearing protective gloves.
- Built-in LED flashlight.
- Low battery and over range indicators.
- Built-in non-contact voltage detector with LED indicator.
- True RMS voltage and current for accurate measurements.
- Low Pass Filter and Low Impedance (LoZ) modes.
- Min/Max, display hold and relative mode.
- Diode test and continuity check functions.
- Durable double molded plastic housing.
- Cat. III 1000V, Cat. IV 600V safety rating.
- Includes type K thermocouple, test leads, batteries and carrying case.
Specifications
| Ranges | |
| Overvoltage Category | CAT. III 1000V, CAT. IV 600V |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| General | |
| Jaw Opening | 1.7" (42mm), up to 1500 MCM |
| Product Certifications | CE, ETL |
| Dimensions | 10.7 x 3.2 x 1.7" (272 x 81 x 43.5mm) |
| Weight | 15.8oz (447g) |
Documents
Ordering information
3 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5055-KIT | CLAMP METER W/FLEX CLAMP | $349.00 | |
| R5055-KIT-NIST | CLAMP METER KIT, W/NIST | $459.00 | |
| R5055-NIST | CLAMP METER TRMS, 1000A AC/DC W/TEMP W/NIST CERT | $309.00 |
