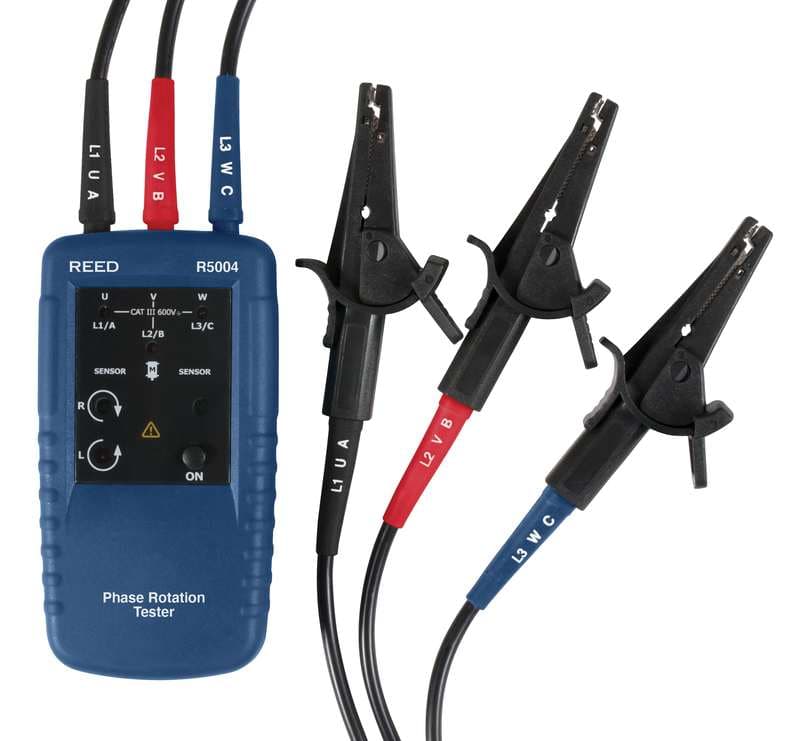

Reed R5004 3-Phase & Motor Rotation Tester
REED R5004 motor rotation tester and 3-phase tester: LEDs show phase orientation (clockwise/counterclockwise) and live phases, 40 to 600V. CAT III 600V.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5004 is a motor rotation tester and 3-phase tester from REED Instruments. LEDs display motor rotation and phase status, so you can confirm phase orientation (clockwise or counterclockwise) and that each of the three phases is live, from 40 to 600V and 2 to 400Hz.
Features (REED datasheet)
- Tests phase orientation of 3-phase power sources.
- Indicates phase orientation (clockwise or counterclockwise) and whether each of the three phases is live.
- LEDs display motor rotation and phase status.
- Easy to open alligator clips with wide jaws.
- Durable double molded plastic housing.
- Cat. III 600V safety rating.
- Includes three color coded cables, three alligator clips, battery and soft carrying case.
Key specifications (REED datasheet)
Published specifications include Voltage Range: 40 to 600V.
Specifications
| Ranges | |
| Voltage Range | 40 to 600V |
| Frequency | 2 to 400Hz |
| Overvoltage Category | CAT. III 600V, CAT. IV 300V |
| Power | |
| Power Supply | 9V Battery |
| Battery Life | Approx. 1 year (regular usage) |
| Environmental | |
| Operating Temperature | 0 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| General | |
| Product Certifications | CE |
| Dimensions | 5.1 x 2.7 x 1.3" (130 x 68 x 32 mm) |
| Weight | 4.5oz (130g) |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5004-KIT | PHASE ROTATION/CLAMP KIT | $305.00 | |
| R5004-NIST | 3-PHASE & MOTOR ROTATION TESTER, 600V W/NIST CERT | $209.00 |
