REED Instruments

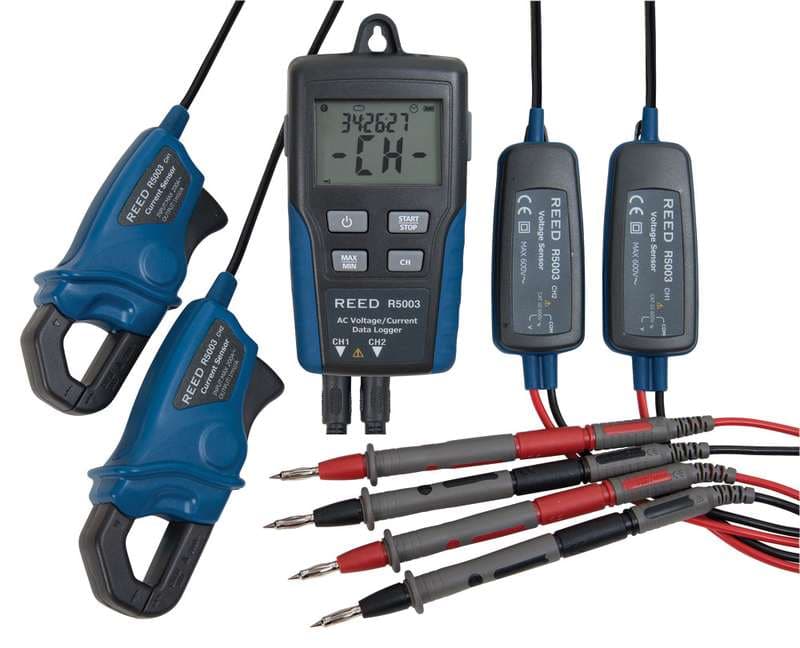

Reed R5003 Ac Voltage/Current Data Logger
Model R5003
REED R5003 Dual Input TRMS AC Voltage/Current Datalogger: datalog up to 256,000 AC voltage and current measurements; range 10 to 600V. Dual input measures 2 voltage/current measurements or 1 of each.
From $399.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5003 is a dual input TRMS AC voltage/current datalogger from REED Instruments.
Features (REED datasheet)
- Datalog up to 256,000 AC voltage and current measurements.
- Dual input measures 2 voltage/current measurements or 1 of each.
- LCD simultaneously displays time/date, current readings and Max/Min readings.
- User adjustable sample rate from 1 sec to 24 hrs.
- High and low alarms.
- Download measurements via USB interface and analyze results with included software.
- Magnetic back allows instrument and sensors to be secured firmly in a variety of locations.
- Low battery indicator and auto shut off.
- Includes two AC current clamp sensors, two voltage sensors, four large alligator clips, four basic test probes, USB cable, software, AC adapter and batteries.
Key specifications (REED datasheet)
Published specifications include AC Voltage Accuracy: ±(2.0% rdg + 1V); AC Current Accuracy: ±(2.0% rdg + 1A); AC Voltage Range: 10 to 600V; AC Voltage Resolution: 0.1V.
Specifications
| Accuracy | |
| AC Voltage Accuracy | ±(2.0% rdg + 1V) |
| AC Current Accuracy | ±(2.0% rdg + 1A) |
| Ranges | |
| AC Voltage Range | 10 to 600V |
| AC Voltage Resolution | 0.1V |
| AC Current Range | 10 to 200A |
| AC Current Resolution | 0.1A |
| Channels | Dual channel, TRMS AC |
| Overvoltage Category | CAT. III 600V |
| Power | |
| Power Supply | 4 AAA Batteries or |
| Battery Life | Sampling Time Dependent |
| Environmental | |
| Operating Temperature | 0 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 75% |
| General | |
| Display | Dual LCD |
| Datalogging Capabilities | Yes |
| Date Stamp | Yes |
| Max Datapoints | 256,000 |
| Auto Shut-off | Yes (after 5 mins of inactivity) |
| Clamp Jaw Opening | 0.5" (12.7mm) |
| PC Connectivity | USB Cable |
| Software | Yes (Included) |
| Software OS Compatibility | Windows 7/8/10/11 |
| Product Certifications | CE |
| Dimensions | 4.5 x 2.5 x 1.3" (114 x 63 x 34mm) |
| Weight | 8.7oz (248g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5003-NIST | AC VOLTAGE/CURRENT DATA LOGGER, 2-CH, W/NIST CERT | $579.00 |
