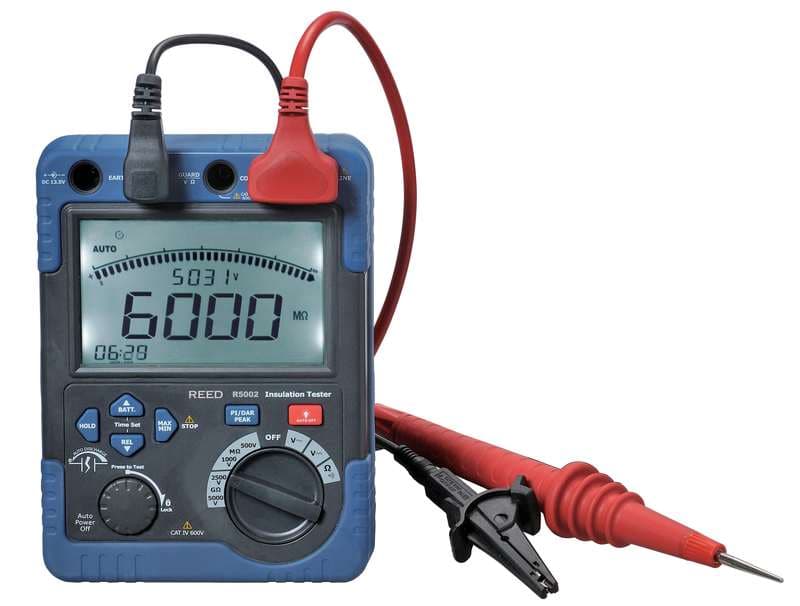

Reed R5002 High Voltage Insulation Tester
Model R5002
REED R5002 digital high voltage insulation tester: 500V, 1000V, 2500V and 5000V test voltages, insulation resistance to 60GΩ, PI and DAR. CAT IV 600V.
From $799.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5002 is a digital high voltage insulation tester (insulation resistance meter) from REED Instruments. It applies 500V, 1000V, 2500V or 5000V test voltages, measures insulation resistance to 60GΩ, and adds polarization index (PI), dielectric absorption ratio (DAR) and a 1 to 15 minute test timer.
Features (REED datasheet)
- Test Voltages of 500V, 1000V, 2500V, and 5000V.
- Measure Insulation Resistance to 60GΩ.
- Large backlit LCD display with analog bargraph.
- Timer function for insulation resistance measurements (1 to 15min).
- AC/DC Voltage from 0 to 600V with Max/Min, peak and relative functions.
- Polarization index measurement (PI).
- Dielectric absorption ratio measurements (DAR).
- Max/Min, Peak, Relative value and Data Hold functions.
- Cat. IV 600V safety rating.
- Low battery indicator and auto shut off.
- Includes test leads, alligator clips, AC adapter, batteries and hard carrying case.
Specifications
| Ranges | |
| Range Selection | Manual / Autoranging |
| Sampling Rate | 2.5 times/sec. |
| Overvoltage Category | CAT. IV 600V |
| Power | |
| Power Supply | 8 C Batteries or AC Adapter (included) |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| General | |
| Display | 6000 count LCD display with bargraph Max/Min, Peak, Relative |
| Analog Bargraph | Yes |
| Auto Power Off | Yes (after 20 minutes) |
| Continuity Buzzer | Yes (< 35Ω) |
| Fuse Protection | Yes |
| Product Certifications | CE |
| Dimensions | 7.8 x 5.8 x 3.4" (198 x 148 x 86mm) |
| Weight | 3lbs (1.5kg) |
