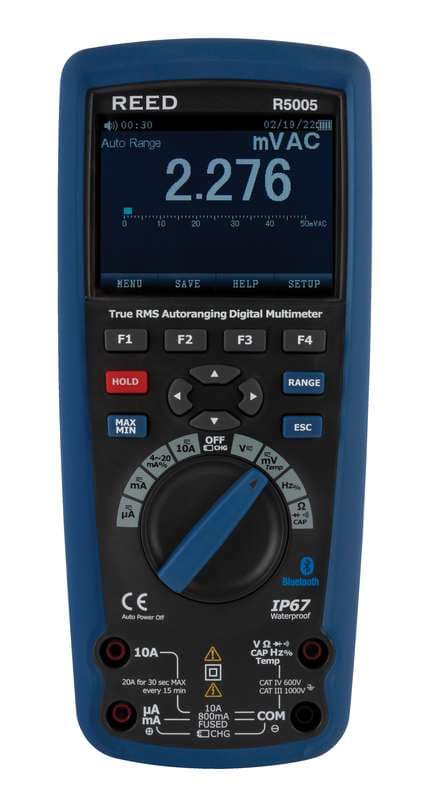

Reed R5005 Multimeter
REED R5005 true RMS multimeter and data logger: AC/DC V and A, resistance, capacitance, frequency and temperature, Bluetooth, IP67, CAT IV 600V.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5005 is a true RMS multimeter and data logger. It measures AC/DC voltage and current, frequency, resistance, capacitance and temperature, and records data so you can review trends in the included software.
Features (REED datasheet)
- Measures AC/DC voltage (to 1000V) and current (to 10A), frequency (to 10MHz), resistance (to 50MΩ), capacitance (to 10mF) and temperature (-58 to 1832°F / -50 to 1000°C).
- Records data (over 2 hours of recording time) with wireless Bluetooth connectivity via the software.
- Relative, peak, min/max and data hold functions.
- 50,000-count 320 × 240 TFT color display with a digital analog bargraph.
- Waterproof (IP67) double-molded housing.
- CAT IV 600V, CAT III 1000V safety rating.
- Includes test leads, a type K thermocouple wire probe, thermocouple adapter, weatherproof plugs, AC adapter, Li-ion battery and software.
Optional accessories (REED datasheet)
R2990 thermocouple adapter, TP-01 type K wire probe, R1000 and R1020 test lead sets, R1220 safety alligator clips, thermocouple probes R2920, R2930, R2940, R2950 and R2960, and the CA-05A soft or R8888 hard carrying case.
Specifications
| AC/DC Voltage | |
| Range | AC/DC: 50, 500mV, 5, 50, 500, 1000V |
| DC Accuracy | 500mV to 500V: ±(0.025% rdg. + 5 dgt.) |
| AC Accuracy | 50/60Hz: ±(0.3% rdg. + 25 dgt.) |
| AC/DC Current | |
| Range | 500, 5000µA, 50, 500mA, 10A |
| DC Accuracy | 500µA to 50mA: ±(0.1% rdg. + 20 dgt.) |
| Resistance | |
| Range | 50, 500Ω, 5, 50, 500kΩ, 5, 50MΩ |
| Capacitance | |
| Range | 5, 50, 500nF, 5, 50, 500µF, 10mF |
| Frequency | |
| Range | 50, 500Hz, 5, 50, 500kHz, 5, 10MHz; ±(0.01% + 10 dgt.) |
| Temperature | |
| Range | -58 to 1832°F (-50 to 1000°C); ±(1.0% rdg. + 4.5°F / 2.5°C) |
| Ranges | |
| Range Selection | Autoranging/Manual |
| Overvoltage Category | CAT. IV 600V, CAT. III 1000V |
| General | |
| True RMS | Yes |
| Measure AC/DC signals simultaneously | Yes |
| Display | 50,000 count 320 x 240 TFT color LCD display |
| Display Hold | Yes |
| Max/Min | Yes |
| Peak Hold | Yes |
| Relative Mode | Yes |
| Diode Test | Yes |
| Recording Capabilities | Yes (Over 2 hr recording time) |
| Wireless Connectivity | Yes (Bluetooth via software) |
| Backlit Display | Yes |
| Digital Analog Bargraph | Yes |
| Continuity Check | Audible signal if resistance ≤25Ω |
| Duty Cycle | Yes (0.1 - 99.9%) |
| Kick Stand | Yes |
| Auto Power Off | Yes (after 15 minutes) |
| Power | |
| Power Supply | Li-ion Rechargeable Battery |
| General | |
| Low Battery Indicator | Yes |
| Fuse Protection | Yes |
| Replaceable Test Leads | Yes |
| Software OS Compatibility | Windows XP/7/8/10 |
| Product Certifications | CE, IP67 |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| General | |
| Dimensions | 8.7 x 3.8 x 2.4" (220 x 96 x 60mm) |
| Weight | 22oz (631g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5005-NIST | MULTIMETER, TRMS, 1000V AC/DC W/TEMP, DATA LOGGER W/NIST CERT | $654.00 |
