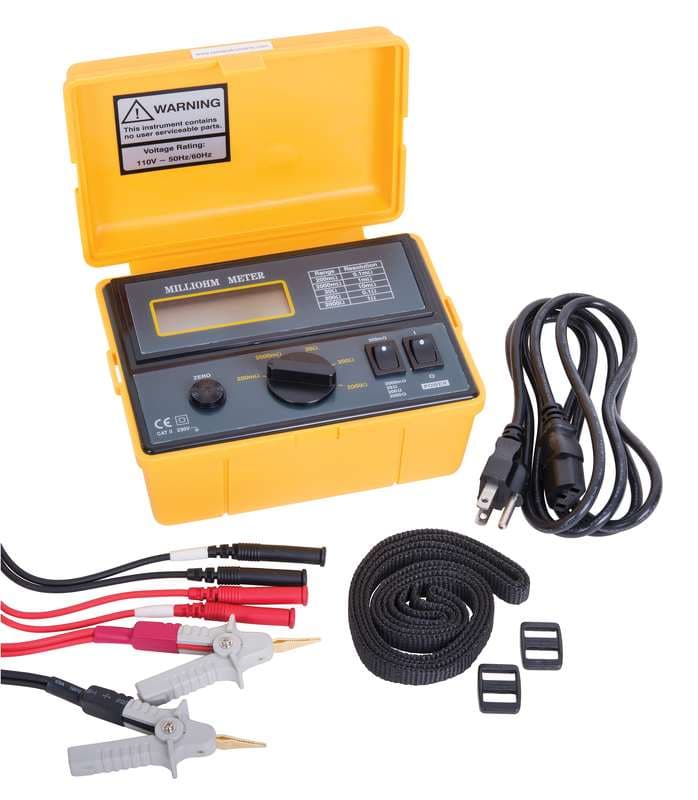

Reed K5090 Milliohm Meter
REED K5090 milli-ohmmeter: 4-terminal low resistance ohmmeter, 200mΩ to 2000Ω ranges, 0.1mΩ resolution, kelvin clip leads included, 110V.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED K5090 is a digital milli-ohmmeter (low resistance ohmmeter) from REED Instruments. Its 4-terminal input gives high accuracy on low resistance, across five manual ranges from 200mΩ to 2000Ω with 0.1mΩ resolution on the lowest range.
Features (REED datasheet)
- 4 terminal input for high accuracy of low resistance.
- Large LCD display.
- Zero adjustment dial.
- Built-in overload protection.
- Includes 4-wire with 2 kelvin clips, protective case, power cord and shoulder strap.
Frequently asked questions
What range does the K5090 low resistance ohmmeter cover?
Five manual ranges: 200mΩ, 2000mΩ, 20Ω, 200Ω and 2000Ω, with resolution from 0.1mΩ to 1Ω. Accuracy is ±(0.75% rdg. + 4 dgt.) on 200mΩ and ±(0.75% rdg. + 2 dgt.) on the other ranges.
Why does it use a 4-terminal input?
REED specifies the 4-terminal input for high accuracy on low resistance. The meter ships with 4-wire leads with 2 kelvin clips, and has a zero adjustment dial.
How is it powered?
The K5090 runs on 110V (50/60Hz) mains power, with fuse and built-in overload protection.
What is included?
4-wire leads with 2 kelvin clips, protective case, power cord and shoulder strap.
Specifications
| Accuracy | |
| Accuracy | 200mΩ: ±(0.75% rdg. + 4 dgt.) 2000mΩ, 20Ω, 200Ω, 2000Ω: ±(0.75% rdg. + 2 dgt.) |
| Ranges | |
| Range | 200mΩ, 2000mΩ, 20Ω, 200Ω, 2000Ω |
| Resolution | 0.1mΩ, 1mΩ, 10mΩ, 0.1Ω, 1Ω |
| Sampling Time | 2x/per sec. |
| Range Selection | Manual |
| Overvoltage Category | CAT. II 230V |
| Power | |
| Power Supply | 110V (50/60Hz) |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| General | |
| Display | LCD |
| Fuse Protection | Yes |
| Product Certifications | CE |
| Dimensions | 6.3 x 4.7 x 3.3" (160 x 120 x 85mm) |
| Weight | 1.5lbs (680g) |
| Overrange Indicator | Yes |
| Zero Adjustment Dial | Yes |
| Input | 4 terminal (4-wire with 2 kelvin clips included) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| K5090-NIST | MILLIOHM METER W/NIST CERT | $624.00 |
