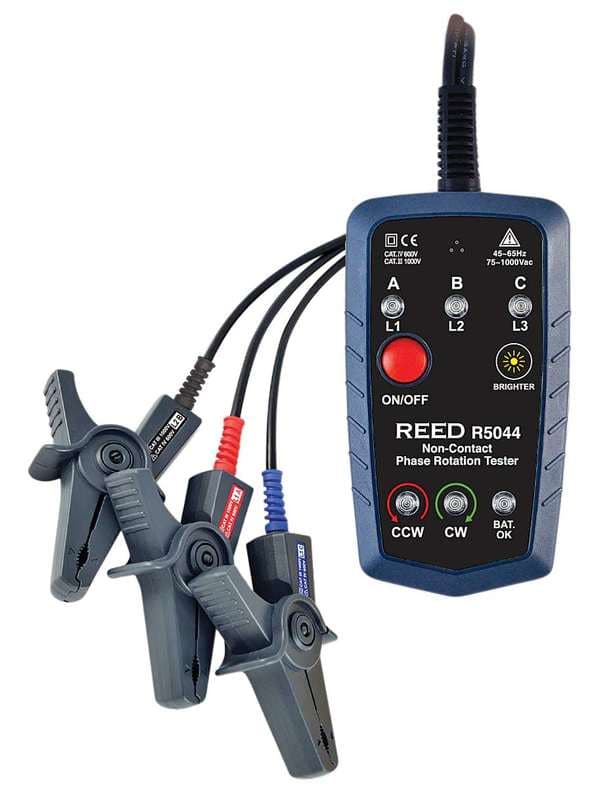

Reed R5044 3-Phase & Motor Rotation Tester
Model R5044
REED R5044 non-contact phase rotation tester: voltage-sensing alligator clips check 3-phase rotation from 75 to 1000VAC, with LED and beeper indication.
From $239.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5044 is a non-contact phase rotation tester from REED Instruments. Its non-contact voltage sensing alligator clips check 3-phase rotation from 75 to 1000VAC, and LEDs plus a beeper indicate correct or reversed phase.
Features (REED datasheet)
- Non-contact voltage sensing alligator clips promote safety.
- Color-coded leads (red, black, blue) adhere to Canadian wire color codes and meet IEC 60446 standards.
- LEDs indicate phase orientation (clockwise or counterclockwise) and whether each phase is live.
- Adjustable LED brightness allows for measurement in sunlight and lowly lit environments.
- Beeper sounds intermittently when detecting correct phase and continuously for a reversed phase.
- Durable housing with magnets frees hands and allows for easy measurement.
- Low battery indicator.
- Includes 3 color coded cables with alligator clips, carrying case and battery.
Key specifications (REED datasheet)
Published specifications include Voltage Range: 75 to 1000VAC.
Specifications
| Ranges | |
| Voltage Detection Method | Static Induction |
| Voltage Range | 75 to 1000VAC |
| Frequency | 45 to 65Hz |
| Overvoltage Category | CAT. III 1000V, CAT. IV 600V |
| Power | |
| Power Supply | "9V" Battery |
| Environmental | |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| General | |
| Cable Length | 31.5" (800 mm) |
| Cable Color | Red (L1)/Black (L2)/Blue (L3) |
| Indicators | Audible (Buzzer)/Visual (LED) |
| Adjustable LED Brightness | Yes |
| Jaw Opening | 1.18" (30 mm) |
| Auto Shut Off | Yes (after 5 minutes without power detection) |
| Product Certifications | CE |
| Dimensions | 5 x 2.8 x 1.8" (128 x 72 x 46 mm) |
| Weight | 13.2 oz (375 g) |
