REED Instruments

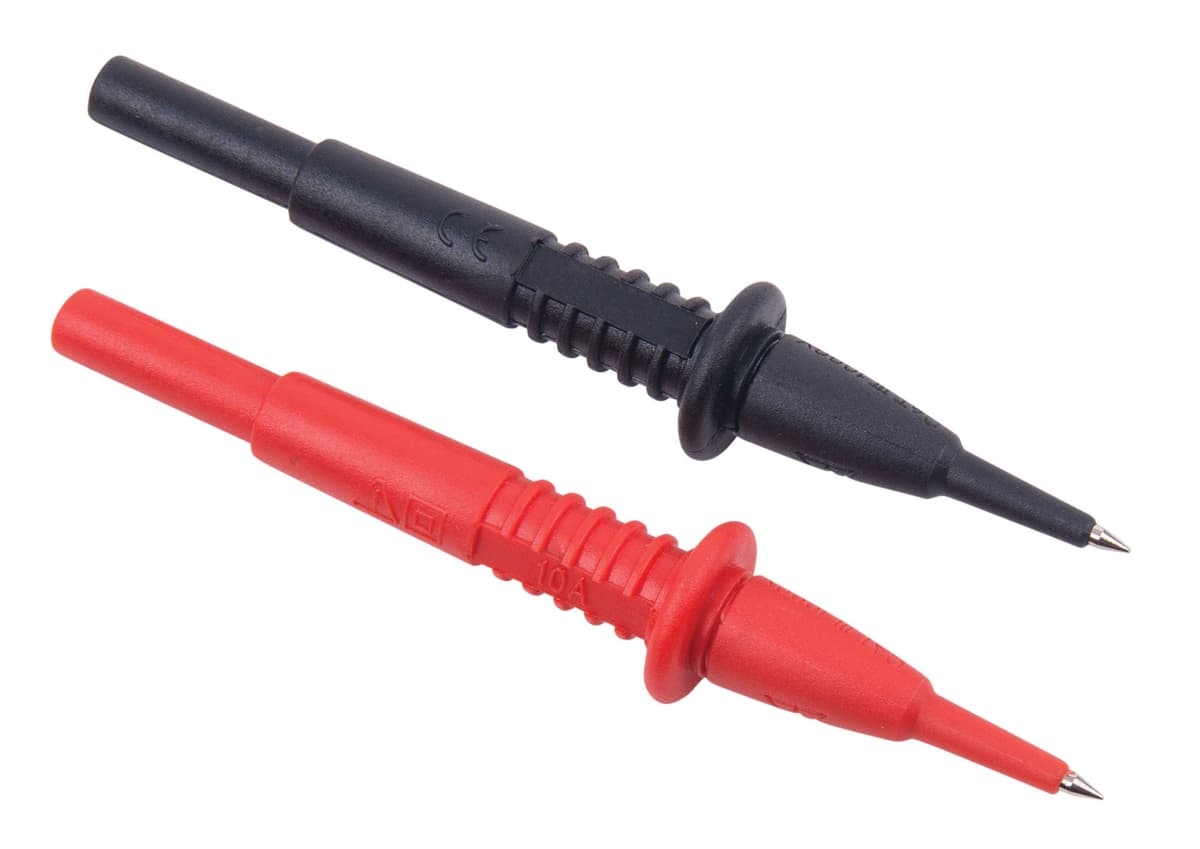

Reed R1110 Test Probe Set
Model R1110
REED R1110 Test Probe Set, Sharp Point: Sharp points for piercing insulation; Stainless steel tips; Probe tip length: 0.6" (16mm).
$10.00list price
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R1110 is a test probe set, sharp point, as listed in REED's "Industrial Test Leads" datasheet.
From the REED datasheet
- Sharp points for piercing insulation
- Stainless steel tips
- Probe tip length: 0.6" (16mm)
- Probe length: 3.9" (100mm)
- 1000V, 10A
- Cat. II 1000V, Cat. III 1000V and Cat. IV 600V safety ratings
- Compatible with test leads that accept 0.16" (4mm) diameter shrouded banana connectors
- 10A Maximum
- Includes protective tip caps
