REED Instruments

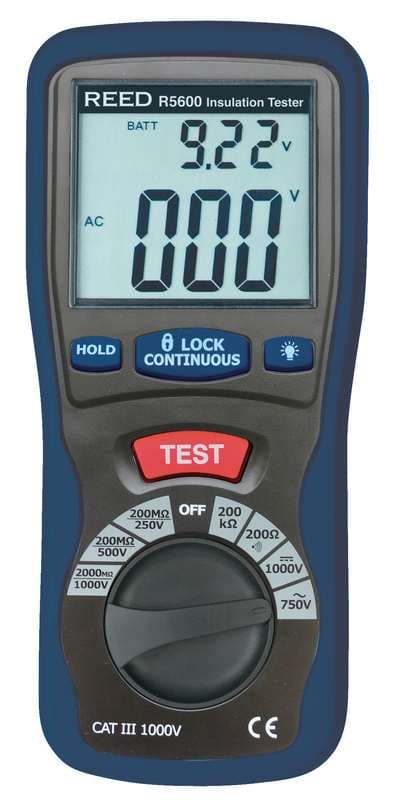

Reed R5600 Insulation/Resistance Meter
Model R5600
REED R5600 Insulation Tester (Megohmmeter): large backlit dual displays insulation resistance and test voltage simultaneously; range 250V, 500V, 1000V. 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ.
From $279.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5600 is an insulation tester (megohmmeter) from REED Instruments.
Features (REED datasheet)
- Large backlit dual displays insulation resistance and test voltage simultaneously.
- 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ.
- Lock function and hanging strap for handfree operation.
- Lo Ω function for testing connections.
- Datahold function.
- Double molded plastic housing for added protection.
- Low battery indicator and auto shut off.
- Cat. III, 1000V safety rating.
- Includes test leads, alligator clip, hanging strap, hard carrying case and batteries.
Specifications
| Accuracy | |
| Voltage Accuracy | DC: ±(0.8% rdg. + 3 dgt.) |
| OHMS Accuracy | ±(1.0% rdg. + 2 dgt.) |
| Meg OHMS Accuracy | ±(3.0% rdg. + 5 dgt.) Test Current: 250KΩ, 500KΩ, 1MΩ |
| Ranges | |
| Ranges | 250V, 500V, 1000V |
| Voltage Resolution | 1V |
| Ranges | 200Ω, 200kΩ |
| OHMS Resolution | 0.1Ω, 0.1kΩ |
| Ranges | 200MΩ/250V, 2000MΩ/500V, 0-1000MΩ/1000V, 1000-2000MΩ/1000V |
| Meg OHMS Resolution | 0.1MΩ, 1MΩ, 1mA |
| Range Selection | Autoranging/Manual |
| Sampling Rate | 2.5 times/sec. |
| Overvoltage Category | CAT. III 1000V |
| Power | |
| Power Supply | 6 AA Batteries |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| General | |
| AC | ±(1.2% rdg. + 10 dgt.) |
| Display | LCD with dual display |
| Continuity Check | Audible signal if resistance ≤40Ω |
| Auto Power Off | Yes (after 15 minutes) |
| Fuse Protection | Yes |
| Replaceable Test Leads | Yes |
| Product Certifications | CE |
| Dimensions | 7.9 x 3.6 x 2.0" (200 x 92 x 50mm) |
| Weight | 25oz (700g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5600-NIST | INSULATION/RESISTANCE METER W/NIST CERT | $424.00 |
