REED Instruments

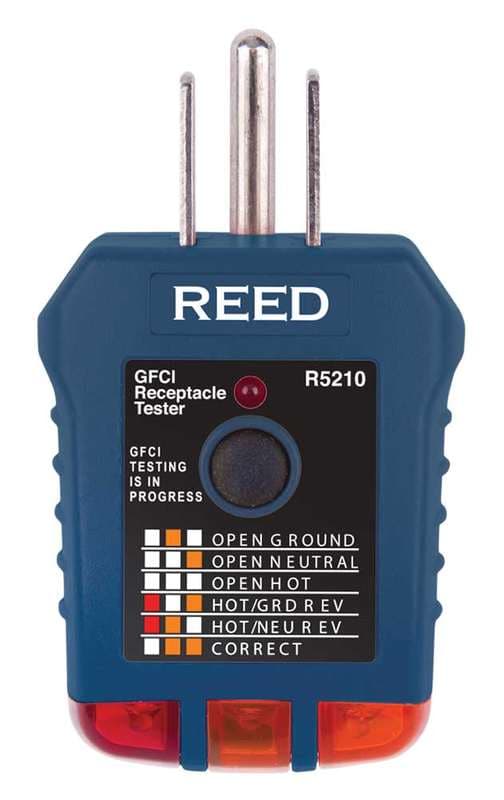

Reed R5210 Receptacle Tester
Model R5210
REED R5210 Receptacle Tester with GFCI: compact design; range 110 to 125V AC. Detects most common 3-wire receptacle issues.
$15.00list price
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5210 is a receptacle tester with GFCI from REED Instruments.
Features (REED datasheet)
- Compact design.
- Detects most common 3-wire receptacle issues.
- LED indicators identify 5 wiring faults.
- Status indicator chart.
- GFCI trip test.
Specifications
| Ranges | |
| Voltage Range | 110 to 125V AC |
| Frequency Range | 50 to 60Hz |
| Current Max | 15A |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity | 0 to 85% |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| General | |
| Receptacle Compatibility | 3-wire with GFCI |
| Product Certifications | CE, UL |
| Dimensions | 3 x 2 x 1" (75 x 51 x 25mm) |
| Weight | 1oz (23g) |
