REED Instruments

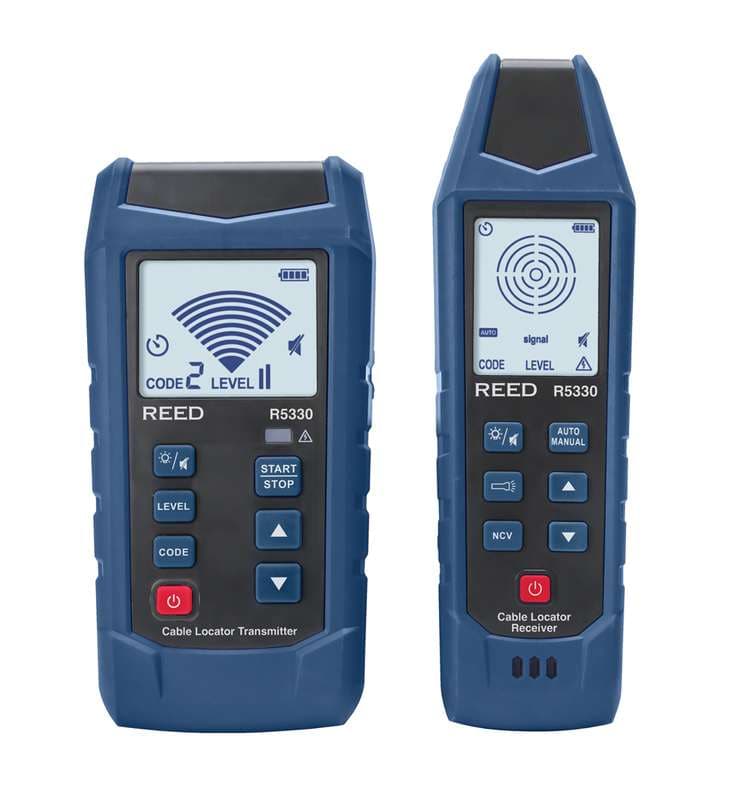

Reed R5330 Advanced Cable Locator
Model R5330
REED R5330 Advanced Cable Locator: LCD screens display signal strength, transmission code, and voltage presence. Coded transmission for increased precision.
$295.00list price
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5330 is an advanced cable locator from REED Instruments.
Features (REED datasheet)
- LCD screens display signal strength, transmission code, and voltage presence.
- Coded transmission for increased precision.
- Audible and visual signal strength indicators with variable tone.
- Adjustable sensitivity.
- Backlit LCD.
- Integrated flashlight supports applications in low lit environments.
- Built-in non-contact voltage detector.
- Low battery indicator and auto shut-off.
- Includes in-line test leads, alligator clips, lantern-tip test probes, ground rod, carrying case and batteries.
Specifications
| Ranges | |
| Overvoltage Category | CAT. III 600V |
| Output Signal Frequency | 33kHz |
| Voltage Detection | (0 to 0.4m) |
| Power | |
| Power Supply | 6 x AA Batteries |
| Battery Life | 10 hours |
| Power Supply | 6 x AAA Batteries |
| Battery Life | 15 hours |
| Environmental | |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Altitude | ≤6561' (2000m) |
| General | |
| Display | LCD |
| Adjustable Sensitivity | Yes (3 levels) |
| Fuse Protection | Yes (F0.6A 600V) Replaceable Leads: |
| Compatible | Yes (R5900 sold separately) |
| Product Certifications | CE, UKCA, RoHS |
| Dimensions | 7.4 x 3.8 x 1.9" (189 x 96 x 48mm) |
| Weight | 18.6oz (528g) |
| Detection Depth | Single Pole: (0 to 2.5m) |
| Double Pole | (0 to 0.5m) |
| Analog Bargraph Display | Yes |
| Detector | Yes (80-1000V, 50/60Hz) |
| Built-in Flashlight | Yes |
| Dimensions | 8.9 x 2.7 x 1.5" (226 x 68 x 38mm) |
| Weight | 12.5oz (354g) |
