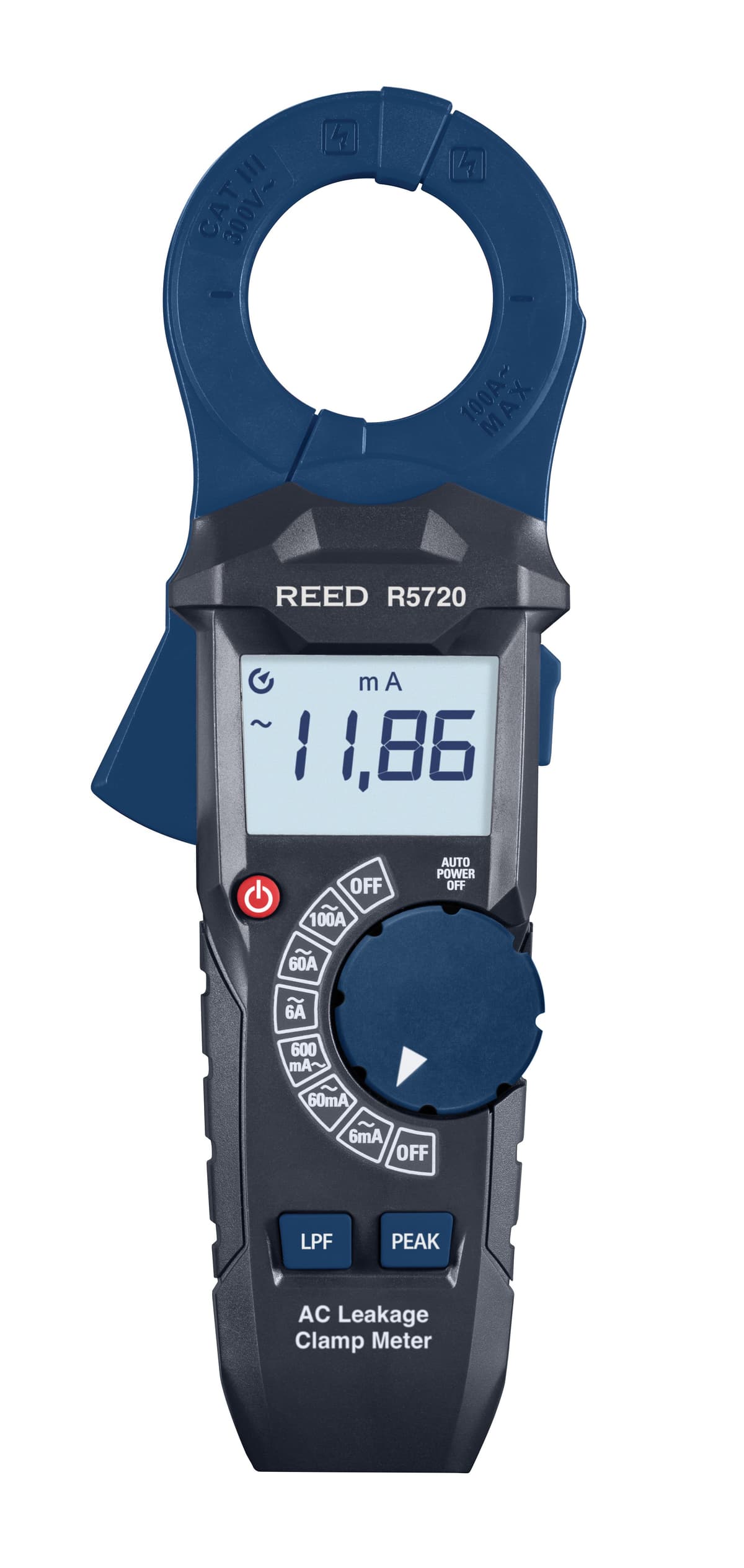

Reed R5720 Ac Leakage Clamp Meter
REED R5720 AC leakage clamp meter for electrical maintenance troubleshooting
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5720 is an AC leakage clamp meter for measuring AC current from 6 mA to 100 A. Per the REED R5720 datasheet, it provides True RMS AC measurements on a 6000-count backlit LCD, with a 1.26" (32 mm) jaw opening and a built-in LED flashlight.
Features (OEM)
- AC TRMS current ranges up to 100 A, including milliamp leakage ranges
- Low-pass filter (LPF) AC TRMS current mode
- Peak Max/Min, display hold, over-range and low-battery indicators
- Auto shut-off; CAT III 300 V; CE
Typical use
Leakage and low-current AC checks in electrical maintenance where a compact clamp and flashlight help in panels and tight spaces.
ISO/IEC 17025 accredited calibration is available on eligible instruments — ask at quote.
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5720-NIST | AC LEAKAGE CLAMP METER, W/NIST | $399.00 |
