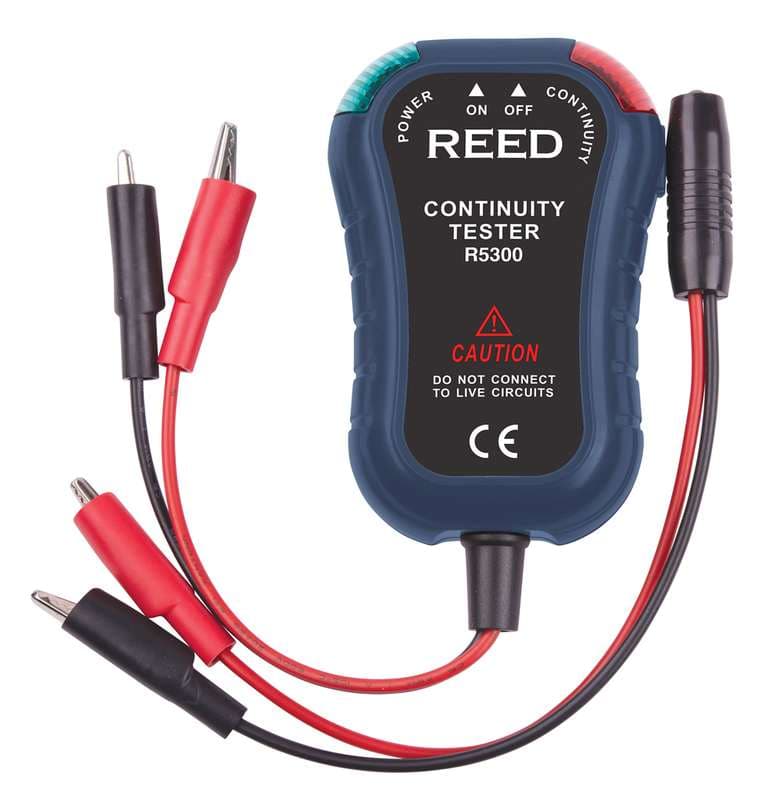

Reed R5300 Continuity Tester
Model R5300
REED R5300 Continuity Tester: local and remote continuity tester. Lightweight design, connect alligator clips and the instrument suspends from wire/cable.
$32.00list price
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5300 is a continuity tester from REED Instruments.
Features (REED datasheet)
- Local and remote continuity tester.
- Lightweight design, connect alligator clips and the instrument suspends from wire/cable.
- Visual (flashing bi-color LEDs) and audible (pulsating beeper) indicators.
- Probe flashes green or red to indicate polarity.
- Remote probe allows for one person operation.
- Capable of sending signal on cable/wire runs up to 10,000 ft (3000m).
- Includes remote probe and battery.
Specifications
| Ranges | |
| Wire Verification Distance | 10,000 feet (3000 meters) |
| Max Test Current | 30mA |
| Max Test Voltage | 9V |
| Power | |
| Power Supply | 9V battery |
| Environmental | |
| Operating Temperature | 14 to 113°F (-10 to 45°C) |
| Operating Humidity | 0 to 85% |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| General | |
| Minimum Wire Size | 26 gage |
| Product Certifications | CE |
| Visual Indicator | Yes (Green and Red LEDs) |
| Audible Indicator | Yes (Pulsating Beeper, approx. 85 dB) |
| Fuse | 0.5A/250V |
| Continuity Confirmation | Equal to or less than 2.0 K Ohms |
| Dimensions | 4.5 x 3 x 1.1 " (115 x 75 x 29mm) |
| Weight | 3.9oz (111g) |
