REED Instruments

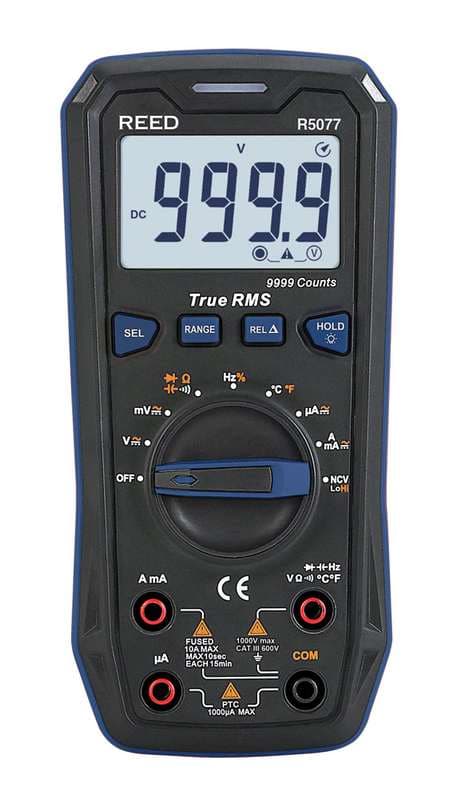

Reed R5077 Multimeter
Model R5077
REED R5077 True RMS Digital Multimeter, AC/DC 1000V: measures AC/DC voltage and current, frequency, resistance, capacitance and temperature. Built-in non-contact voltage detector and rugged double molded plastic housing.
From $79.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5077 is a true RMS digital multimeter, AC/DC 1000V from REED Instruments.
Features (REED datasheet)
- Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature.
- Built-in non-contact voltage detector and rugged double molded plastic housing.
- Diode check and continuity functions.
- Relative and data hold functions.
- Backlit LCD and low battery indicator.
- CAT III 600V safety rating.
- Includes test leads, thermocouple wire probe (type K) and batteries.
Applications (REED datasheet)
- Troubleshooting electrical systems in residential, commercial, and industrial settings.
- Performing routine maintenance checks on electrical equipment.
- Testing and diagnosing issues in various types of machinery and appliances.
- Verifying electrical connections and installations for safety compliance.
- Conducting repairs and maintenance on HVAC and automotive systems.
- Supporting educational and laboratory environments for electronics training and experiments.
- Assisting in general DIY electrical projects and repairs around the home.
Specifications
| Ranges | |
| Overvoltage Category | CAT. III 600V |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| General | |
| ange | AC/DC: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 999.9V |
| ccuracy | AC: 9.999mV, 99.99mV ±(1% rdg. + 3dgt.) 999.9mV, 9.999V, 99.99V, 999.9V ±(0.8% rdg. + 3dgt.) |
| DC | 9.999mV, 99.99mV ±(0.7% rdg. + 8dgt.) 999.9mV, 9.999V, 99.99V, 999.9V ±(0.5% rdg. + 3dgt.) |
| esolution | AC/DC: 0.001mV, 0.01mV, 0.1mV, 0.001V, 0.01V, 0.1V |
| ange | AC/DC: 999.9μA, 999.9mA, 9.999A |
| ccuracy | AC: 999.9μA ±(1.0% rdg. + 3dgt.) 999.9mA, 9.999A ±(1.2% rdg. + 3dgt.) |
| DC | 999.9μA ±(0.8% rdg. + 3dgt.) 999.9mA, 9.999A ±(1.0% rdg. + 3dgt.) |
| esolution | AC/DC: 0.1μA, 0.1mA, 0.001ALength Range: 0-99,999 m/in/ft |
| Strap Compatible | Yes (R5900 sold separately) |
| Kick Stand | Yes Auto Power Off: Power Supply: Yes (after 15 minutes) 3x AA Batteries |
| Fuse Protection | Yes |
| Replaceable Test Leads | Yes |
| Product Certifications | CE, UKCA, ETL |
| Dimensions | 7.4 x 3.5 x 2.2" (187 x 88 x 56mm) |
| Weight | 14oz (400g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5077-NIST | MULTIMETER, 1000V AC/DC W/NIST CERT | $189.00 |
