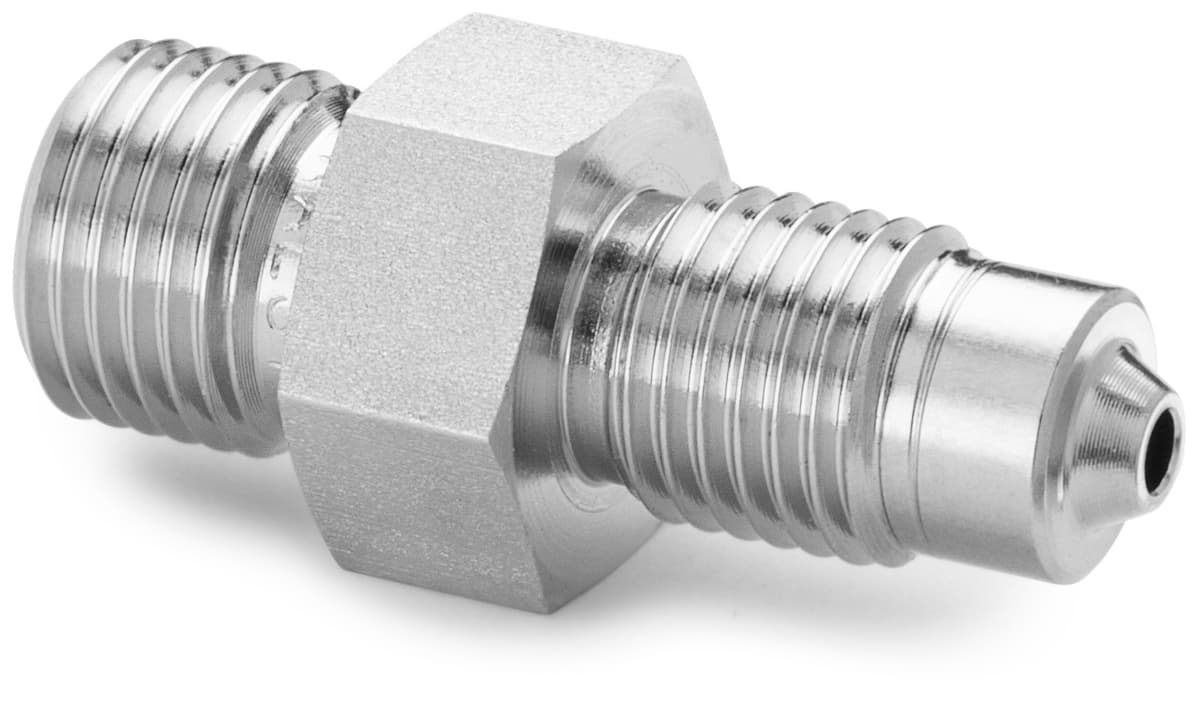

Ralston Medium Pressure Quick-test Adapters
7/16-20 Medium Pressure × Quick-test adapters for Crystal XP2i, m1, nVision, 30 Series, HPC40/HPC50 — up to 5,000 psi, with optional cap and chain
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
Medium Pressure Ralston Quick-test adapters connect 7/16-20 Medium Pressure ports — the connection used on Crystal XP2i and m1 gauges and nVision, 30 Series, HPC40 and HPC50 calibrators — to a Quick-test hose.
- 7/16-20 (1/4" LM4) male Medium Pressure × male or female Quick-test
- Optional cap and chain (QTFT-2MS0-MP)
- Max pressure 5,000 psi / 350 bar / 35 MPa
- Stainless steel
- Made in USA
OEM: Medium Pressure adapters / fittings (https://www.ralstoninst.com/medium-pressure-adapters, https://www.ralstoninst.com/medium-pressure-quick-test-fittings).
Shipping and tax are confirmed when we review your order.
Specifications
| Family | Medium Pressure Quick-test Adapters |
| Process connection | 7/16-20 (1/4" LM4) male Medium Pressure |
| Hose connection | Male or female Quick-test |
| Max pressure | 5,000 psi / 350 bar / 35 MPa |
| Materials | Stainless steel |
| Country of origin | USA |
Build your part number
Configure your QTHA-MP
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model to build your part number.
Choose Medium Pressure end and whether you need cap and chain. Shipping and tax are confirmed when we review your order.
Ordering information
3 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| QTFT-2MS0-MP | 7/16-20 Male Medium Pressure x Male Quick-test with Cap and Chain | $86.52 | |
| QTHA-2MS0-MP | 7/16-20 male Medium Pressure x male Quick-test, S.S. | $66.23 | |
| QTHA-2MSA-MP | 7/16-20 Male Medium Pressure x Female Quick-test Adapter, S.S. | $75.71 |
