REED Instruments

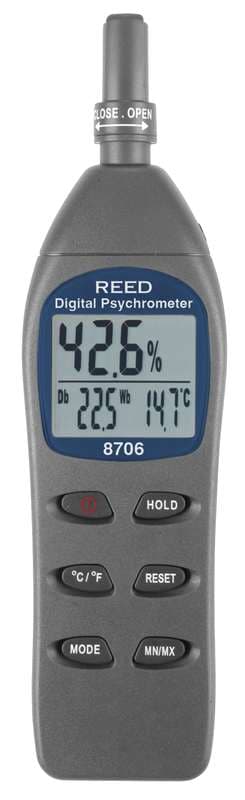

Reed 8706 Digital Psychrometer
Model 8706
REED 8706 Digital Psychrometer / Thermo-Hygrometer: simultaneous display of %RH, temperature and dew point or wet bulb; range -4 to 158°F (-20 to 70°C). Optional external probe (87P6) for contact/differential temperature measurement.
From $125.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED 8706 is a digital psychrometer / thermo-hygrometer from REED Instruments.
Features (REED datasheet)
- Simultaneous display of %RH, temperature and dew point or wet bulb.
- Optional external probe (87P6) for contact/differential temperature measurement.
- Max/Min/Avg readings.
- Fast response.
- Data Hold Function.
- User selectable °F/°C.
- Low battery indicator and auto shut-off.
- Includes batteries.
Specifications
| Accuracy | |
| Temperature Accuracy | ±1.0°F (0.6°C) |
| Humidity Accuracy | ±3% RH |
| Ranges | |
| Temperature Measuring Range | -4 to 158°F (-20 to 70°C) |
| Temperature Resolution | 0.1°F/°C Contact Temperature (Probe sold separately) |
| Temperature Measuring Range | -4 to 122°F (-20 to 50°C) |
| Temperature Resolution | 0.1°F/°C |
| Dew Point Measuring Range | -109 to 122°F (-78 to 50°C) |
| Dew Point Resolution | 0.1°F/°C |
| Wet Bulb Measuring Range | -69 to 122°F (-21 to 50°C) 8706-KIT |
| Wet Bulb Resolution | 0.1°F/°C Psychrometer with Humidity |
| Humidity Measuring Range | 0-100% RH |
| Humidity Resolution | 0.1% RH Humidity Calibration Kit (33% and 75%) |
| Power | |
| Power Supply | 2 AAA Batteries R9975 75% Humidity Calibration Standard |
| Environmental | |
| Operating Temperature | -4 to 158°F (-20 to 70°C) CA-52A |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10-80% 8706-KIT |
| General | |
| Display | LCD |
| Max | Yes 87P6 External Temperature Probe |
| Auto Shut-off | Yes (5 mins/off) |
| Product Certifications | CE R9980 Humidity Calibration Kit |
| Dimensions | 7 x 1.9 x 1" (179 x 48 x 25mm) |
| Weight | 3.3 oz (95g) 8706- |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| 8706-KIT | PSYCHROMETER WITH HUMIDITY CALIBRATION STANDARDS | $269.00 | |
| 8706-NIST | DIGITAL PSYCHROMETER W/NIST CERT | $430.00 |
Related products
Official compatibility and accessories for this model - not look-alike suggestions.
Official REED: 87P6 temperature probe for 8706 digital psychrometer
REED R9933 33% humidity standard for 8706
REED R9975 75% humidity standard for 8706
REED R9980 humidity standard kit for 8706
