REED Instruments

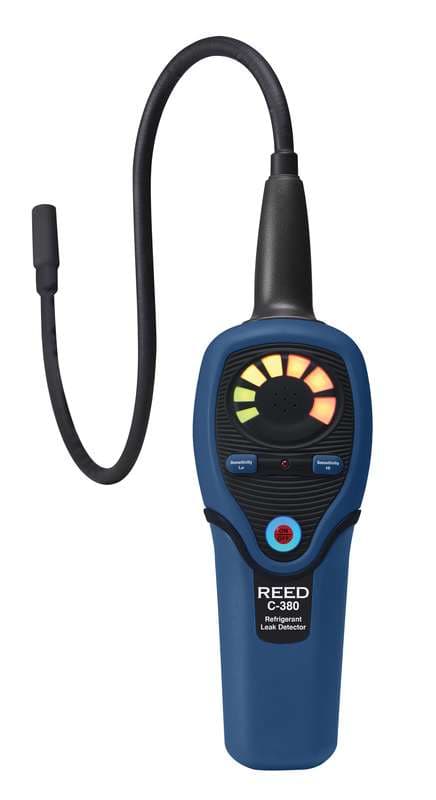

Reed C-380 Refrigerant Leak Detector
Model C-380
REED C-380 Refrigerant Leak Detector: detects all CFCs, HFCs, and HCFCs. Quick response and high accuracy detects small leaks.
From $209.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED C-380 is a refrigerant leak detector from REED Instruments.
Features (REED datasheet)
- Detects all CFCs, HFCs, and HCFCs.
- Quick response and high accuracy detects small leaks.
- 15" (390mm) gooseneck for hard to reach areas.
- Designed for one-handed operation.
- User adjustable sensitivity (High/Low).
- Tricolor visual indicator.
- Audible (buzzer) and visual (LED) alarm indicators.
- Low battery indicator and auto shut off.
- User replaceable sensor.
- Includes reference leak source, batteries and hard carrying case.
Specifications
| Ranges | |
| Sensor Type | Advanced ionization detector |
| Response Time | Less than 1 second |
| Power | |
| Power Supply | 4 AA Batteries |
| Battery Life | Approx. 40 hours |
| General | |
| Detected Gases | CFC's: R11, R12, R13 HCFC's: R22, R502, R500 HFC's: R134a, R123, R125, R23, R404A, R407C, R410A and other halogen based compounds HFO’s: HFO-1234yf and R514A |
| Sensitivity | R22, 134A: 6g/year(H), 30g/year(L) R404A, 407C, 410A: 8g/year(H), 40g/year(L) |
| Display | Tricolor LED bar indicator |
| Alarm | Audible (buzzer) and Visual (bar indicator) |
| Sensitivity Settings | Low and High |
| Warm-up Time | 10 seconds |
| Auto Shut-off | Yes (after 10 mins) |
| Product Certifications | CE, RoHS |
| Probe Length | 15" (390mm) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| C-380-NIST | REFRIGERANT LEAK DETECTOR W/NIST CERT | $294.00 |
