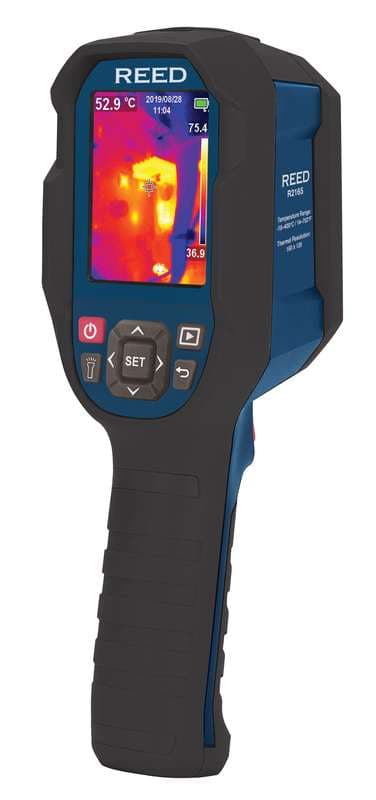

Reed R2165 Thermal Imager
Model R2165
REED R2165 Thermal Imaging Camera: 160 x 120 infrared resolution (19,200 pixels). 2.8" color TFT Display.
From $599.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R2165 is a thermal imaging camera from REED Instruments.
Features (REED datasheet)
- 160 x 120 infrared resolution (19,200 pixels).
- 2.8" color TFT Display.
- Built-in LED flashlight.
- Choice of 7 color palettes.
- Intuitive on-screen measurement tools.
- 3 image modes (Thermal, Visual Image, Thermal Blending).
- High and Low temperature spot and alarm indicators.
- IP65 and 6.5' (2m) drop tested.
- Rechargeable li-ion battery.
- Tripod mountable for continuous long-term monitoring.
- View, analyze stored data and generate reports or project in real-time.
- Low battery indication and auto shut-off.
- Includes USB cable, 32GB micro SD card & soft carrying case.
Specifications
| Ranges | |
| Digital Camera Resolution | 640 x 480 pixels |
| Display Resolution | 320 x 240 pixels |
| Power | |
| Power Supply | 3.7V/5000mAh rechargeable Li-ion battery |
| Battery Life | Approx. 6 hours |
| Environmental | |
| ating Altitude | 6561' (2000m) 9.3 x 3 x 3.4" (236 x 76 x 86mm) 1lbs (454g) |
| General | |
| Digital Camera | Yes |
| Image Format | BMP |
| LED Flashlight | Yes |
| External Memory | Micro SD card |
| Auto Shut-off | Yes (user adjustable 5/10/30 minutes) |
| Charging System | In Camera |
| Charge Time | 4 hours |
| PC Connectivity | USB Cable (Type-C) |
| ctionality | Image Analysis/ |
| Compatibility | Windows 7/8/10/11 |
| nguages | English and French |
| ifications | CE, IP65, 6.5' (2m) drop test |
| mperature | 32 to 122°F (0 to 50°C) |
| erature | -4 to 140°F (-20 to 60°C) orage |
| ange | 10 to 90% |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R2165-KIT | THERMAL IMAGER, 160x120 WITH CARRYING CASE | $665.00 | |
| R2165-NIST | THERMAL IMAGER, 160x120, 752°F/400°C W/NIST CERT | $974.00 |
