REED Instruments

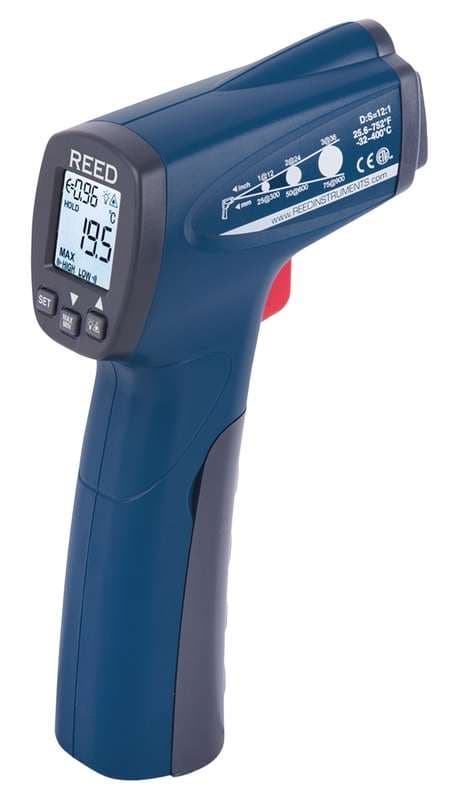

Reed R2300 Ir Thermometer
Model R2300
REED R2300 Infrared Thermometer: built-in laser pointer identifies target area; 12:1 distance-to-spot; range -25.6 to 752°F (-32 to 400°C). User selectable °F or °C.
From $69.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R2300 is an infrared thermometer from REED Instruments.
Features (REED datasheet)
- Built-in laser pointer identifies target area.
- User selectable °F or °C.
- 12:1 distance to spot size ratio.
- Digitally adjustable emissivity.
- Max and Min readings.
- Backlit display.
- High and low alarms.
- Low battery indication and auto shut off.
- Includes battery.
Key specifications (REED datasheet)
Published specifications include Accuracy: ±4°F (2°C) or ±2% rdg.; Temperature Range: -25.6 to 752°F (-32 to 400°C); Resolution: 0.1°F (0.1°C); Optical Resolution (D:S): 12:1.
Specifications
| Accuracy | |
| Accuracy | ±4°F (2°C) or ±2% rdg. |
| Ranges | |
| Temperature Range | -25.6 to 752°F (-32 to 400°C) |
| Resolution | 0.1°F (0.1°C) |
| Optical Resolution (D:S) | 12:1 |
| Spectral Response | 8 to 14μm |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Response Time | 500ms |
| Laser Type | Class II |
| Power | |
| Power Supply | 9V Battery |
| Battery Life | Approx. 10 hours (with continuous use, backlight on) |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | <90% |
| Maximum Operating Altitude | 6561' (2000m) |
| Maximum Storage Altitude | 39370' (12000m) |
| General | |
| Alarm Indicators | Yes (Beeping) |
| Product Certifications | CE, ETL, RoHS |
| Dimensions | 6.0 x 4.3 x 1.6" (153 x 108 x 40mm) |
| Weight | 6.5oz (185g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R2300-NIST | IR THERMOMETER, COMPACT, 12:1, -26/752°F, -32/400°C W/NIST CERT | $239.00 |
