REED Instruments

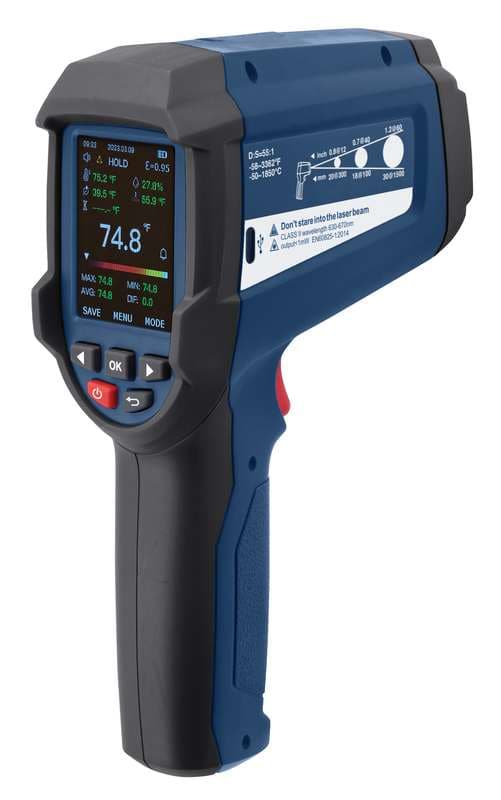

Reed R2340 Ir Thermometer
Model R2340
REED R2340 Professional Infrared Thermometer: infrared thermometer with integral type K thermocouple input for contact measurement.
From $499.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R2340 is a professional infrared thermometer from REED Instruments.
Features (REED datasheet)
- Infrared thermometer with integral type K thermocouple input for contact measurement.
- Built-in laser pointer identifies target area.
- User-selectable °F or °C.
- 55:1 Distance to Spot size ratio.
- Rechargeable li-ion battery.
- High resolution TFT color LCD.
- Digitally adjustable emissivity.
- Max, Min, Average and Differential readings.
- Ambient air temperature, humidity, dew point and wet bulb temperature measurement.
- Surface heat conduction, dew point and temperature comparison detection modes.
- Audible adjustable alarm.
- Internal memory stores up to 999 datapoints.
- Trigger lock for continuous monitoring.
- Low battery indication and auto shut off.
- Includes USB cable, type K bead thermocouple and hard carrying case.
Key specifications (REED datasheet)
Published specifications include Display Resolution: 320 x 240 pixels.
Specifications
| Ranges | |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Response Time | 250ms |
| Display Type | 2.4" TFT LCD |
| Display Resolution | 320 x 240 pixels |
| Laser Type | Class II |
| Power | |
| Power Supply | 3.7V 2600mAh rechargeable Li-ion battery |
| Battery Life | Approx. 20 hours (Fully Charged) |
| Environmental | |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Maximum Operating Altitude | 6561' (2000m) |
| Maximum Storage Altitude | 39.370' (12.000m) |
| General | |
| Average and Differential | Yes |
| Data Storage | Yes (Up to 999 groups) |
| Trigger Lock | Yes |
| Auto Shut-off | Yes (adjustable from 1 to 30 mins) |
| PC Connectivity | Yes |
| Charging System | USB-C |
| Charge Time | 3 hours |
| Product Certifications | CE, RoHS, UKCA |
| Dimensions | 8.07 x 4.88 x 2.56" (205 x 124 x 65mm) |
| Weight | 0.82lbs (375g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R2340-NIST | IR THERMOMETER, DATA LOGGER, 55:1, -58/3362°F, -50/1850°C W/NIST CERT | $774.00 |
