REED Instruments

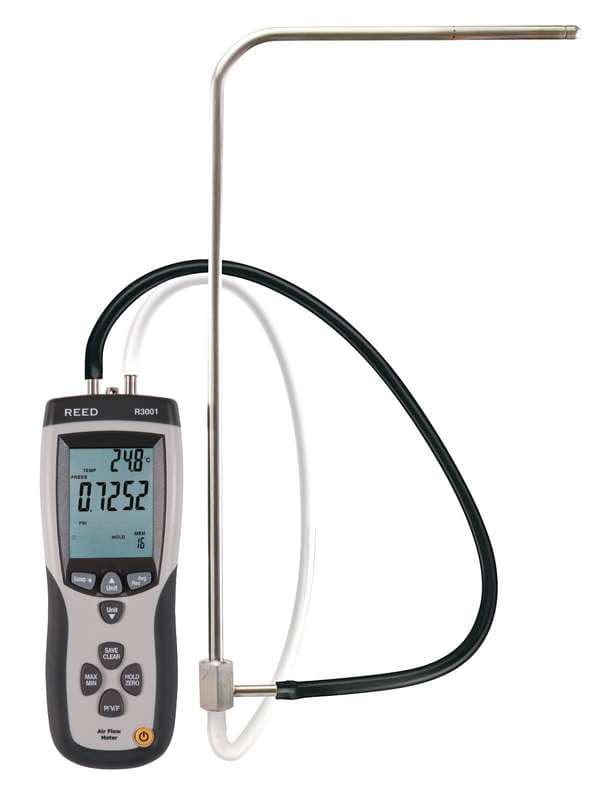

Reed R3001 Anemometer/Manometer
Model R3001
REED R3001 Anemometer/Manometer: dual LCD simultaneously displays pressure, air velocity or airflow with temperature; accuracy ±2.5% rdg. Max, Min, Avg, Relative and Data hold functions.
From $459.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R3001 is an anemometer / manometer from REED Instruments.
Features (REED datasheet)
- Dual LCD simultaneously displays pressure, air velocity or airflow with temperature.
- Max, Min, Avg, Relative and Data hold functions.
- Integrated real-time clock time-stamps measurements.
- Large, easy-to-read backlit LCD display.
- Zero button for offset correction or measurement.
- User selectable unit of measure.
- Push button calculation of rectangular or circular duct areas.
- USB interface and software included.
- Tripod mount for long-term monitoring.
- Low battery indicator and auto shut off.
- Includes black and white silica tubes, pitot tube, USB cable, software, battery, and hard carrying case.
Specifications
| Accuracy | |
| Accuracy | ±2.5% rdg. |
| Pressure Accuracy | ±0.3% FS |
| Repeatability | ±0.2% FS |
| Ranges | |
| Measuring Ranges | 1 to 80 m/s; 200 to 15,733 fpm; 3.6 to 288 km/h; 2.24 to 178.66 mph; 2.0 to 154.6 knots |
| Temperature | 32 to 122°F (0 to 50°C) |
| Temperature | ±1.5°C (3°F) |
| Resolution | 0.01 m/s; 1 fpm; 0.1 km/h; 0.01 mph; 0.1 knots; 0.001 CFM/CMM; 0.1°F/°C |
| Pressure Measuring Ranges | ±5000 Pa; 0.752 psi; 50.00mbar; 20.07 inH2O; 509.8 mmH2O |
| Pressure Resolution | 1 Pa; 0.1 mmH2O; 0.01 mbar / inH2O; 0.0001 psi |
| Max Pressure | 10 psi |
| General | |
| Air Volume | 0 to 99,999 (CFM/CMM) |
| Air Volume | ±1% FS |
| Linearity/Hysteresis | ±0.29% FS |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R3001-NIST | ANEMOMETER/MANOMETER, PITOT TUBE, ±5000PA W/NIST CERT | $684.00 |
