REED Instruments

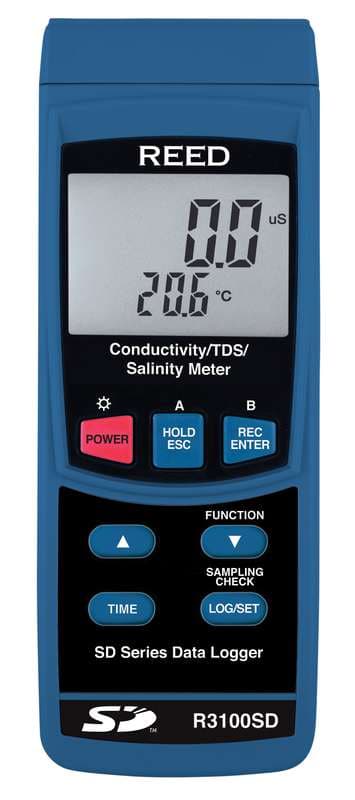

Reed R3100SD Data Logging Conductivity/Salinity/Tds
Model R3100SD
REED R3100SD Data Logging Conductivity/ TDS/Salinity Meter: measures conductivity, total dissolved solids (TDS salt levels in water; range 200μS/cm, 2mS/cm, 20mS/cm, 200mS/cm. Automatic temperature compensation.
From $395.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R3100SD is a data logging conductivity/TDS/salinity meter from REED Instruments.
Features (REED datasheet)
- Measures conductivity, total dissolved solids (TDS) and salt levels in water.
- Automatic temperature compensation.
- Real time datalogger with integrated SD memory card.
- User selectable sampling rate.
- Easy-to-read backlit LCD display.
- Data hold and Min/Max functions.
- Tripod mount for long-term monitoring.
- Low battery indicator and auto shut off.
- Includes conductivity/TDS/salinity probe, hard carrying case & batteries.
Specifications
| Accuracy | |
| Conductivity Accuracy | ±(2%FS +1 dgt) |
| Salinity Accuracy | ±0.5% salt |
| Salinity Accuracy | ±1.5°F (±0.8°C) |
| Ranges | |
| Conductivity Measuring Range | 200μS/cm, 2mS/cm, 20mS/cm, 200mS/cm |
| Conductivity Resolution | 0.1μS, 0.001mS, 0.01mS, 0.1mS TDS (Total Dissolved Solids) |
| Conductivity Measuring Range | 200, 2000, 20 000, 200 000 ppm |
| Conductivity Resolution | 0.1, 1, 10, 100 ppm |
| Salinity Measuring Range | 0 to 12% (% weight) |
| Salinity Resolution | 0.01% salt |
| Temperature | Measuring Range: 32 to 140°F (0 to 60°C) |
| Salinity Resolution | ±0.1°F (±0.1°C) |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R3100SD-KIT | DATA LOGGING CONDUCTIVITY/TDS/SALINITY METER WITH SD CARD, POWER ADAPTER AND SOLUTION | $439.00 | |
| R3100SD-NIST | DATA LOGGING CONDUCTIVITY/SALINITY/TDS W/NIST CERT | $635.00 |
