REED Instruments

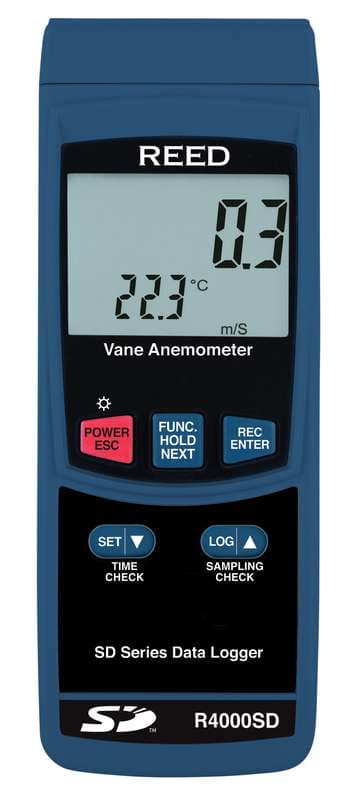

Reed R4000SD Data Logging Thermo-Anemometer
Model R4000SD
REED R4000SD Data Logging Vane Thermo-Anemometer: measures air velocity (fpm, m/s, kph, mph and knots) and air temperature; range fpm: 79 to 5906. Contact temperature measurement with type J/K thermocouple option.
From $399.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R4000SD is a data logging vane thermo-anemometer from REED Instruments.
Features (REED datasheet)
- Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature.
- Contact temperature measurement with type J/K thermocouple option.
- Thermistor sensor for fast air temperature readings.
- Low friction ball-bearing, rotating vane probe ensures high accuracy readings.
- Real-time data logger with integrated SD memory card.
- User selectable sampling rate from 1 to 3600 seconds.
- Easy-to-read backlit LCD display.
- Data hold and Min/Max functions.
- Tripod mount on probe and instrument for long-term monitoring.
- Low battery indicator and auto shut off.
- Includes vane probe, hard carrying case & batteries.
Specifications
| Accuracy | |
| Accuracy | Air Velocity: ±(2% rdg + 40 fpm, 0.2 m/s, 0.8 km/h, 0.4 mph, 0.4 knot) |
| Ranges | |
| Type | Vane |
| Measuring Ranges | fpm: 79 to 5906 |
| Air Temperature | 32 to 122°F (0 to 50°C) Type K Temperature: -148.0 to 2372.0°F (-100.0 to 1300°C) Type J Temperature: -148.0 to 2192.0°F (-100.0 to 1200°C) |
| Air Temperature | 1.5°F (±0.8°C) |
| Temperature | ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C)) |
| Resolution | fpm: 1m/s, km/h, mph |
| Temperature | 0.1°F/°C |
| Response Time | <1 second |
| General | |
| m/s | 0.4 to 30 |
| km/h | 1.4 to 108 |
| mph | 0.9 to 67.1 |
| knots | 0.8 to 58.3 |
| knot | 0.1 |
| Vane Diameter | 2.8" (72mm) |
| Display | 5-digit, Dual LCD Display |
Documents
Ordering information
3 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R4000SD-KIT | DATA LOGGING VANE THERMO-ANEMOMETER WITH POWER ADAPTER AND SD CARD | $425.00 | |
| R4000SD-KIT2 | DATA LOGGING VANE THERMO-ANEMOMETER WITH TRIPOD, SD CARD AND POWER ADAPTER | $505.00 | |
| R4000SD-NIST | DATA LOGGING THERMO-ANEMOMETER, VANE W/NIST CERT | $749.00 |
