REED Instruments

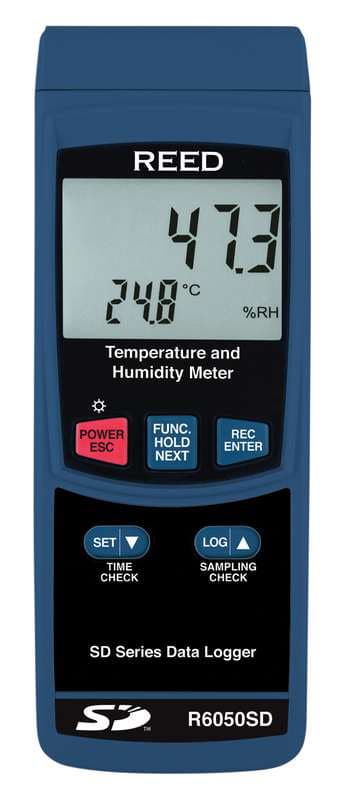

Reed R6050SD Data Logging Thermo-Hygrometer
Model R6050SD
REED R6050SD Data Logging Thermo-Hygrometer: measures relative humidity, ambient temperature an dew point/wet bulb temperatures; range 32 to 122°F (0 to 50°C). Contact temperature measurement with a type J/K thermocouple option.
From $339.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R6050SD is a data logging thermo-hygrometer from REED Instruments.
Features (REED datasheet)
- Measures relative humidity, ambient temperature and dew point/wet bulb temperatures.
- Contact temperature measurement with a type J/K thermocouple option.
- Temperature is measured in °C or °F.
- Real time data logger with integrated SD memory card.
- User selectable sampling rate from 1 to 3600 seconds.
- Easy-to-read backlit LCD display.
- Data hold and Min/Max functions.
- Tripod mount for long-term monitoring.
- Low battery indicator and auto shut off.
- Includes humidity/temperature probe, soft carrying case & batteries.
Specifications
| Accuracy | |
| Temperature Accuracy | ±1.5°F (0.8°C) |
| Temperature Accuracy | ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C)) |
| Dew Point Accuracy | Sum of temp and RH accuracy |
| Wet Bulb Accuracy | Sum of temp and RH accuracy |
| Humidity Accuracy | ±(3% rdg. + 1% RH): ≥70% RH ±3% RH: < 70% RH |
| Ranges | |
| Temperature Measuring Range | 32 to 122°F (0 to 50°C) |
| Temperature Resolution | 0.1°F/°C Contact Temperature (Probe sold separately) |
| Temperature Measuring Range | Type K: -148 to 2372°F (-100 to 1300°C) |
| Type J | -148 to 2192°F (-100 to 1200°C) |
| Temperature Resolution | 0.1°F/°C |
| Dew Point Measuring Range | -13.5 to 120.1°F (-25.5 to 48.9°C) |
| Dew Point Resolution | 0.1°F/°C |
| Wet Bulb Measuring Range | -6.9 to 122.0°F (-21.6 to 50.0°C) |
| Wet Bulb Resolution | 0.1°F/°C |
| Humidity Measuring Range | 5 to 95% RH |
| Humidity Resolution | 0.1% RH |
| General | |
| Display | Dual Display, LCD |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R6050SD-KIT | DATA LOGGING THERMO-HYGROMETER WITH POWER ADAPTER AND SD CARD | $369.00 | |
| R6050SD-NIST | DATA LOGGING THERMO-HYGROMETER W/NIST CERT | $644.00 |
Related products
Official compatibility and accessories for this model - not look-alike suggestions.
REED R9933 33% humidity standard for R6050SD
REED R9975 75% humidity standard for R6050SD
Official REED: R6050SD-PROBE replacement probe for R6050SD data logging meter
REED R9980 humidity standard kit for R6050SD
