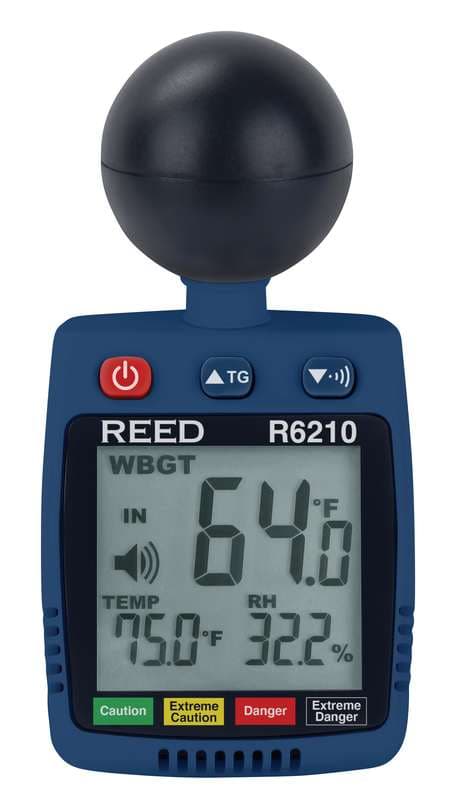

Reed R6210 Heat Stress Meter
REED R6210 Heat Stress WBGT Meter: measures ambient temperature, humidity, wet bulb temperature, black globe temperature, WBGT (wet bulb global temperature); range Air Temperature: 32 to 122°F (0 to 50°C).
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R6210 is a heat stress WBGT meter from REED Instruments.
Features (REED datasheet)
- Measures ambient temperature, humidity, wet bulb temperature, black globe temperature, WBGT (wet bulb global temperature).
- Black Globe Temperature (TG) monitors the effects of direct solar radiation on an exposed surface.
- IN/OUT function displays the WBGT value with or without direct sun exposure.
- Multi-line backlit LCD display simultaneously displays 3 measurements.
- User selectable unit of measure (°F or °C).
- User adjustable WBGT threshold alarm (audible).
- Flexible armband and tripod mount for long-term monitoring.
- Low battery indicator.
- Includes flexible armband, fastener for armband with screws, keyring, carabiner, silicone elbow for anti-skid, screw for silicone elbow and battery.
Key specifications (REED datasheet)
Published specifications include Temperature Accuracy: Air Temperature: ±1.1°F (±0.6°C); Temperature Measuring Ranges: Air Temperature: 32 to 122°F (0 to 50°C); Temperature Resolution: 0.1°F/°C; Humidity Measuring Ranges: 5 to 90% RH Accuracy (@ 25°C): 30 to 90% RH: ±5%.
Specifications
| Accuracy | |
| Temperature Accuracy | Air Temperature: ±1.1°F (±0.6°C) |
| Ranges | |
| Temperature Measuring Ranges | Air Temperature: 32 to 122°F (0 to 50°C) |
| Temperature Resolution | 0.1°F/°C |
| Humidity Measuring Ranges | 5 to 90% RH Accuracy (@ 25°C): 30 to 90% RH: ±5% |
| Rest of Range | ±7% |
| Humidity Resolution | 0.1% RH |
| Sampling Interval | 20 seconds |
| Power | |
| Battery Life | Approx. 500 hours |
| Power Supply | CR2032 Battery |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity | <80% (non-condensing) |
| Storage Temperature | 32 to 140°F (0 to 60°C) |
| Storage Humidity | <70% (non-condensing) |
| Operating Altitude | 6561' (2000m) |
| General | |
| Black Globe | 32 to 176°F (0 to 80°C) |
| WBGT | 32 to 122°F (0 to 50°C) |
| Black Globe | ±1.1°F (±0.6°C) |
| WBGT | ±3.6°F (±2.0°C) |
| Display | LCD |
| WBGT Alarm | Yes (audible) |
| Product Certifications | CE, RoHS |
| Dimensions | 4.6 x 2.4 x 1.9" (116 x 60 x 50mm) |
| Weight | 2.8oz (80g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R6210-NIST | HEAT STRESS METER, PERSONAL W/NIST CERT | $444.00 |
