REED Instruments

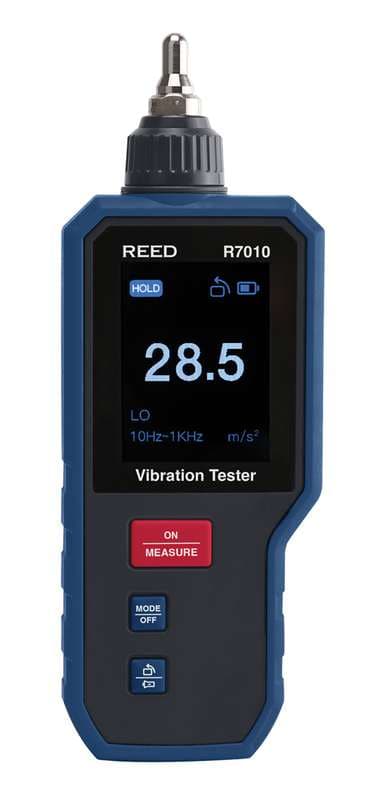

Reed R7010 Vibration Meter
Model R7010
REED R7010 Vibration Meter: measures velocity, acceleration and displacement to determine vibration level; range 10-90%. 360° screen rotation allows users to view measured readings from any angle.
$599.00list price
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R7010 is a vibration meter from REED Instruments.
Features (REED datasheet)
- Measures velocity, acceleration and displacement to determine vibration level.
- 360° screen rotation allows users to view measured readings from any angle.
- Easy-to-read color LCD display.
- Built-in LED flashlight.
- Rechargeable li-ion battery.
- Interchangeable short and long probes to meet application requirements.
- Low battery indication and auto-shut off.
- Includes long probe, short probe, USB cable, and carrying case.
Specifications
| Ranges | |
| Response Time | 1sec |
| Power | |
| Power Supply | 1350mAh/3.7V rechargeable |
| Battery Life | Approx. 12 hours |
| Environmental | |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10-90% |
| General | |
| Display | 2.4"TFT Color LCD |
| Rotatable Screen | Yes |
| Auto Shut-off | Yes (after 5mins) |
| Charging System | In Meter |
| Charge Time | Approx. 3 hours |
| Product Certifications | CE, UKCA, ROHS |
| Dimensions | 7.1 x 2.5 x 1.1" (180 x 64 x 28mm) |
| Weight | 6.7oz (191g) |
