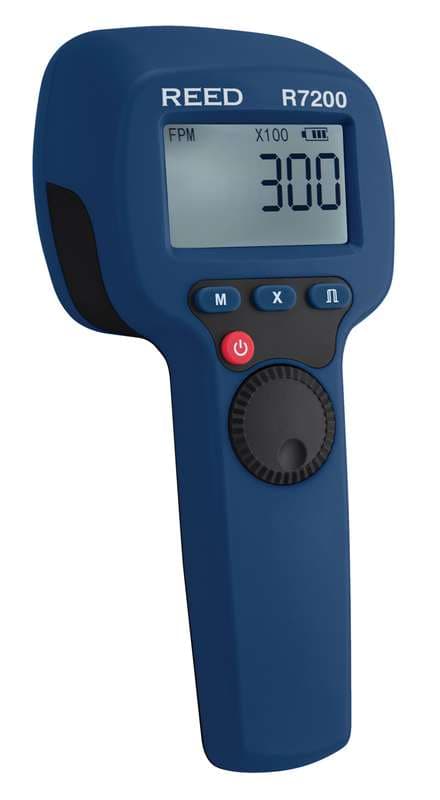

Reed R7200 Stroboscope
REED R7200 LED stroboscope: 60 to 99,999 FPM/RPM at ±0.001%, 16-LED array, internal phase shift, x1/x10/x100 multiplier, rechargeable Li-ion battery.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R7200 is a handheld LED stroboscope from REED Instruments. Its 16-LED array flashes from 60 to 99,999 FPM/RPM (0.1667 to 1666.67 Hz) at ±0.001% accuracy, and the x1/x10/x100 multiplier button allows quick verification of actual RPM.
Features (REED datasheet)
- Bright LEDs with uniform light output.
- High accuracy of ±0.001%.
- Rechargeable Li-ion battery.
- Extended battery life of 8 hours continuous use at 6000FPM/RPM.
- Flash rate may be displayed in Flashes per Minute (FPM) or Flashes per Second (Hz).
- Multiplier (x1/x10/x100) push button allows for quick verification of actual RPM.
- Easy-to-read LCD display.
- Low battery indicator.
- Includes LED Stroboscope and USB cable.
Key specifications (REED datasheet)
Published specifications include Accuracy: ±0.001%; Measuring Range: 60 to 99,999fpm 0.1667 to 1666.67Hz; Resolution: 1 fpm 0.1667Hz.
Frequently asked questions
What is the flash rate range of the R7200 stroboscope?
60 to 99,999 FPM/RPM (0.1667 to 1666.67 Hz) with 1 FPM/RPM resolution and ±0.001% accuracy. The flash rate can be shown in flashes per minute (FPM) or flashes per second (Hz).
How do I confirm the actual RPM?
The multiplier push button (x1/x10/x100) allows quick verification of actual RPM. The stroboscope also has internal phase shift.
How long does the battery last?
About 8 hours of continuous use at 6000 FPM/RPM on the 7.4V 2000mAh rechargeable Li-ion battery. A USB cable is included.
Where can it be used?
REED rates it for 14 to 131°F (−10 to 55°C), 10 to 90% humidity and altitudes up to 6561' (2000m).
Specifications
| Accuracy | |
| Accuracy | ±0.001% |
| Ranges | |
| Measuring Range | 60 to 99,999fpm 0.1667 to 1666.67Hz |
| Resolution | 1 fpm 0.1667Hz |
| Display Type | 5-digit LCD |
| Power | |
| Power Supply | 7.4V 2000mAh rechargeable Li-ion battery |
| Battery Life | Approx. 8 hours (fully charged); 8 hours continuous use at 6000 FPM/RPM |
| General | |
| Internal Phase Shift | Yes |
| Light Source | 16 LED Array |
| Selectable Units | FPM or Hz |
| Multiplier | x1 / x10 / x100 push button |
| Low Battery Indicator | Yes |
| Product Certifications | CE |
| Environmental | |
| Operating Temperature | 14 to 131°F (-10 to 55°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 10 to 90% |
| Maximum Operating Altitude | 6561' (2000m) |
| General | |
| Dimensions | 8.26 x 3.54 x 2.24" (210 x 90 x 57mm) |
| Weight | 0.71lbs (320g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R7200-NIST | STROBOSCOPE, PISTOL GRIP W/NIST CERT | $429.00 |
