REED Instruments

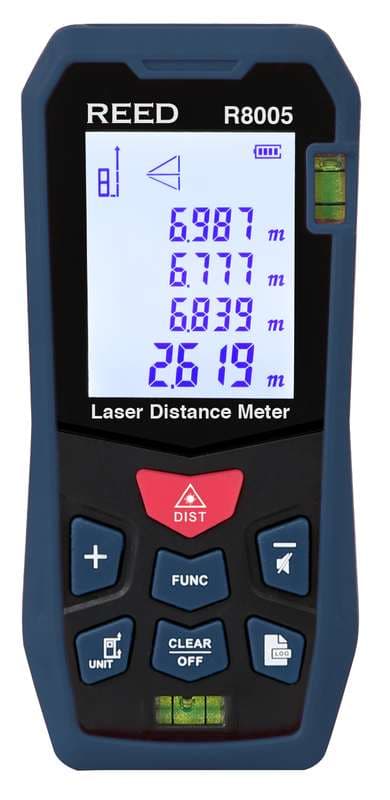

Reed R8005 Laser Distance Measurer 164Ft
Model R8005
REED R8005 Laser Distance Meter: designed for one-handed operation; range 164' (50m). User selectable unit of measure (imperial/metric).
From $65.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R8005 is a laser distance meter from REED Instruments.
Features (REED datasheet)
- Designed for one-handed operation.
- User selectable unit of measure (imperial/metric).
- Laser target pointer.
- Reference point selection (front or rear of instrument).
- Quick, self calculation with real-time readout.
- Backlit multi-line LCD display.
- Area, Volume and Max/Min functions.
- Addition, Subtraction and indirect 2/3 point (Pythagoras) calculations.
- Integrated bubble level (Horizontal and vertical).
- Continuous measurement mode.
- Internal memory saves up to 99 readings.
- Low battery indicator and auto shut off.
- Includes carrying case and batteries.
Specifications
| Accuracy | |
| Accuracy | ±(2.0mm + d x 0.005 %) |
| Ranges | |
| Measuring Range | 164' (50m) |
| Measuring Units | m, ft, in, ft + in |
| Sensor Type | Laser |
| Laser Type | 630 to 670nm, <1mW |
| Response Time | 2 seconds |
| Power | |
| Power Supply | 2 x AAA Batteries |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | <85 % RH |
| General | |
| Display | LCD (multi-line) |
| Start Point Selection | Yes (Front/Back) |
| Reading Mode | 2 (Single/Continuous) |
| Calculation Functions | Addition, Subtraction, Area, Volume, Sum of Lengths, 2 point indirect (pythagoras), 3 point indirect |
| Internal Memory | Yes (up to 99 readings) |
| Auto Shut-off | Yes (after 3 minutes) |
| Laser Class | Class II |
| Product Certifications | CE, RoHS |
| Dimensions | 4.8 x 2.05 x 1.16" (122 x 52 x 29.5mm) |
| Weight | 3.5oz (100g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R8005-NIST | LASER DISTANCE MEASURER 164FT, 50M W/NIST CERT | $360.00 |
