REED Instruments

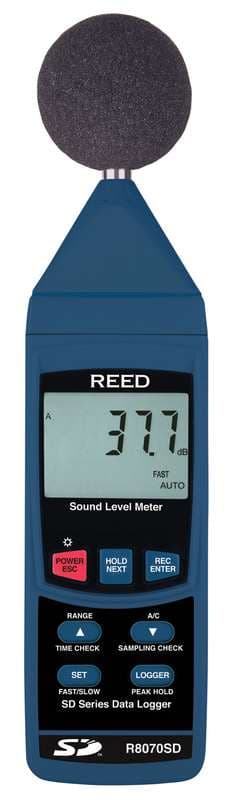

Reed R8070SD Data Logging Sound Level Meter
Model R8070SD
REED R8070SD Data Logging Sound Level Meter: high accuracy of ±1.4dB meets Type 2 standards; range 30 to 130dB. Triple range measurement (50dB dynamic range).
From $399.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R8070SD is a data logging sound level meter from REED Instruments.
Features (REED datasheet)
- High accuracy of ±1.4dB meets Type 2 standards.
- Triple range measurement (50dB dynamic range).
- A & C frequency weighting.
- Fast & Slow time weighting.
- Real time data logger with integrated SD memory card.
- User selectable sampling rate from 1 to 3600 seconds.
- Easy-to-read backlit LCD display.
- Peak hold, Data hold and Min/Max hold.
- Tripod mount for long-term monitoring.
- Low battery indicator and auto shut off.
- The single AC output jack (3.5mm stereo mini-plug) provides analog signals to frequency analysers, level recorders, FFT analysers, graphic recorders, etc.
- Includes windshield ball, soft carrying case & batteries.
Specifications
| Accuracy | |
| Accuracy | 31.5Hz ±3.0dB, 63Hz ±2.0dB, 125Hz ±1.5dB, 250Hz ±1.5dB, 500Hz ±1.5dB, 1kHz ±1.0dB, 2kHz ±2.0dB, 4kHz ±3.0dB, 8kHz ±5.0dB |
| Ranges | |
| Measuring Ranges | 30 to 130dB |
| Dynamic Range | 50dB (in each range) |
| Resolution | 0.1dB |
| Response Time | 500ms |
| Frequency Range | 31.5Hz to 8kHz |
| Frequency Weighting | A, C |
| General | |
| Low | 30 to 80dB |
| Med | 50 to 100dB |
| High | 80 to 130dB |
| Full | 30 to 130dB |
| Time Weighting | Fast/Slow (125ms and 1s) |
| Microphone | 0.5" (12.7mm) electret condenser |
| Display | 4-digit LCD |
| Alarm Indicators | Under and Over (visual on screen) |
| Datalogging Capabilities | Yes |
| Date Stamp | Yes |
Documents
Ordering information
3 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R8070SD-KIT | DATA LOGGING SOUND METER WITH ADAPTER AND SD CARD | $429.00 | |
| R8070SD-KIT2 | DATA LOGGING SOUND METER WITH TRIPOD, SD CARD AND POWER ADAPTER | $505.00 | |
| R8070SD-NIST | DATA LOGGING SOUND LEVEL METER W/NIST CERT | $714.00 |
