REED Instruments

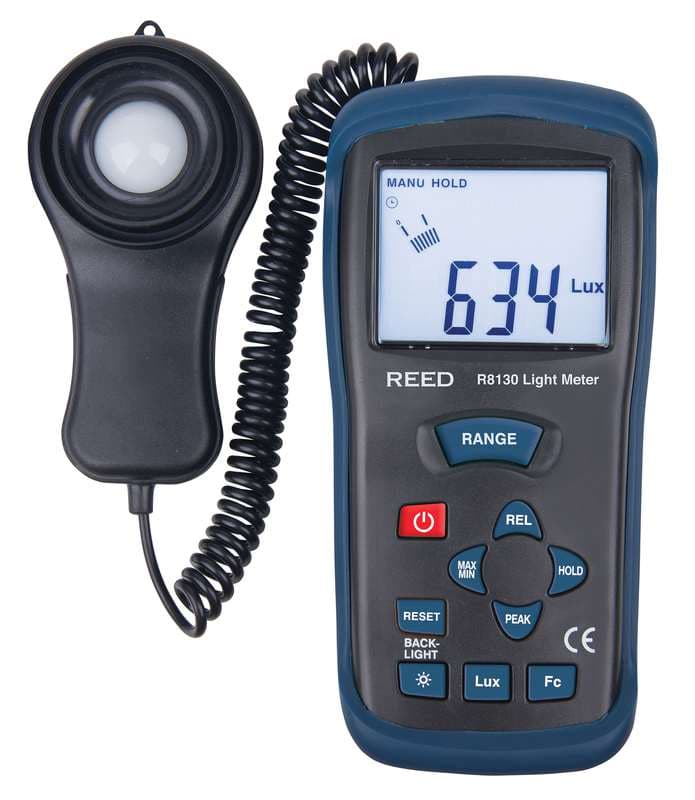

Reed R8130 Light Meter 400
Model R8130
REED R8130 Light Meter: wide measuring range (up to 40,000 Fc or 400,000 Lux); range Lux: 0 to 400,000. Easy-to-read backlit LCD display.
From $125.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R8130 is a light meter from REED Instruments.
Features (REED datasheet)
- Wide measuring range (up to 40,000 Fc or 400,000 Lux).
- Easy-to-read backlit LCD display.
- 42-segment Digital analog bargraph.
- Min/Max and Relative Mode functions.
- Peak and Data Hold.
- Low battery indicator and auto shut off.
- Includes sensor cover, protective holster, carrying case & battery.
Key specifications (REED datasheet)
Published specifications include Accuracy: ±(5% rdg.+ 0.5% Full Scale); Repeatability: ±3%; Spectral Accuracy: CIE Vλ function f1'≤6%; Measuring Range(s): Lux: 0 to 400,000.
Specifications
| Accuracy | |
| Accuracy | ±(5% rdg.+ 0.5% Full Scale) |
| Repeatability | ±3% |
| Spectral Accuracy | CIE Vλ function f1'≤6% |
| Ranges | |
| Measuring Range(s) | Lux: 0 to 400,000 |
| Resolution | Lux/Fc: 0.01 (Max resolution) |
| Response Time | Bargraph: 13.3 times/second |
| Sensor Type | Photo diode with spectral response filter |
| Spectral Response | CIE Photopic (CIE Human Response Curve) |
| Power | |
| Power Supply | 9V battery |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 50°C) |
| Operating Humidity Range | 10 to 80% |
| General | |
| Fc | 0 to 40,000 |
| Numeric display | 1.3 times/second |
| Cosine Response | f2' ≤2% |
| Display | 3 3/4" (3999) digit LCD |
| Digital Analog Bargraph | Yes (42 segment) |
| Data Hold | Yes Min, Max and |
| Relative Mode | Yes |
| Auto Shut-Off | Yes (after 30 mins) |
| Product Certifications | CE |
| Dimensions | 7.4 x 2.5 x 1" (188 x 64.5 x 24.5mm) |
| Weight | 14.2oz (403g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R8130-NIST | LIGHT METER 400,000 LUX W/NIST CERT | $430.00 |
