REED Instruments

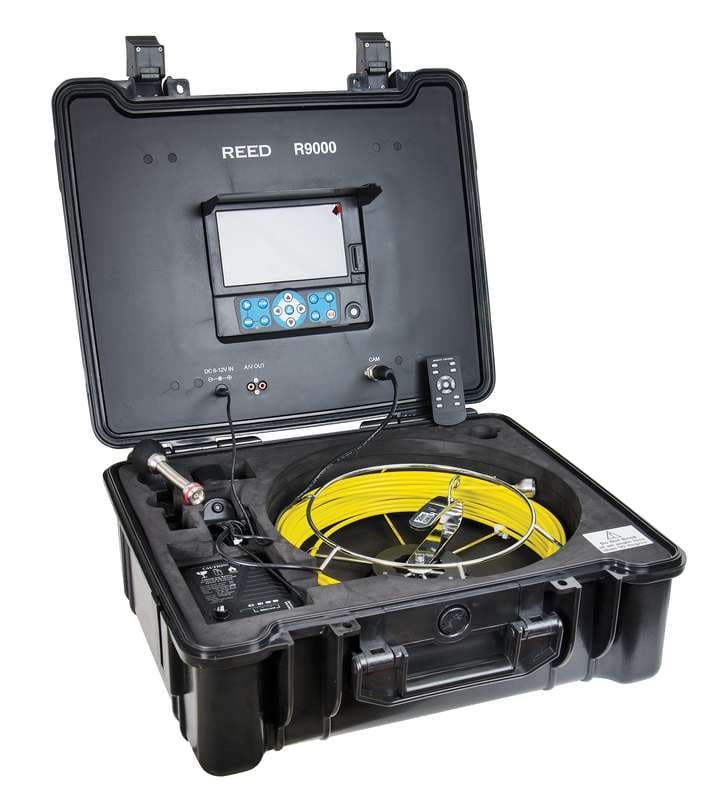

Reed R9000 Hd Pipe Video Inspection System
Model R9000
REED R9000 Video Inspection Camera System: complete video inspection system built in a hard carrying case. Camera and video functions save high resolution images and records video/audio.
$2,249.00list price
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9000 is a video inspection camera system from REED Instruments.
Features (REED datasheet)
- Complete video inspection system built in a hard carrying case.
- Camera and video functions save high resolution images and records video/audio.
- Twelve high visibility LED lights provide illumination in dimly lit environments.
- Scratch-resistant sapphire lens and durable stainless steel camera housing.
- 65.6ft (20m) cable mounted on cable reel.
- High resolution 16:9 7" TFT LCD display.
- Video and audio output.
- Rechargeable lithium-ion battery and car charger.
- Sun visor is included to act as a sun shield for outdoor inspections.
- 90° mirror rotation and low battery indicator.
- Includes camera head, 20m cable reel and push cable, remote control, hard carrying case with built-in DVR, battery pack and cable, car charger, fuse, 2 ball guides, plastic skid, 2 screws, 2 nuts, waterproof ring and adapters and screwdriver.
Specifications
| Ranges | |
| Camera Resolution | 800 x 480 |
| Viewing Distance | 7.9 to 39.4" (20 to 100cm) |
| Display Resolution | 800 x 480 |
| Power | |
| Power Supply | Rechargeable Li-ion Battery, AC Adapter, Car Charger |
| Environmental | |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | 4 to 140°F (-20 to 60°C) |
| Operating Humidity | 30 to 90% |
| General | |
| Camera Diameter | 0.91" (23mm) |
| Camera Length | 4.7" (120mm) |
| Lens/Housing Material | Saphire / Stainless Steel |
| Depth of Field | 100cm to infinity |
| Viewing Angle | 0 to 140° |
| Display | 7" Color TFT LCD (16x9) |
| Frames per Second (FPS) | 30 |
| Cable Length | 65.6' (20m) |
| Cable Diameter | 0.2" (5.2mm) |
| Rotate Display | Yes (90°) |
| Playback | Photo, Video and Audio |
| Memory | Internal / SD Card |
| TV Out | PAL / NTSC |
| Data Output | USB / SD Card |
| LED Brightness Adjustment | Yes (12 white LEDs) |
| Supported Languages | English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese |
| Product Certifications | CE, IP67 (Camera Head) |
| Dimensions | 22.7 x 10.4 x 20.4" (575 x 265 x 520 mm) |
| Weight | 22lbs (10kg) |
