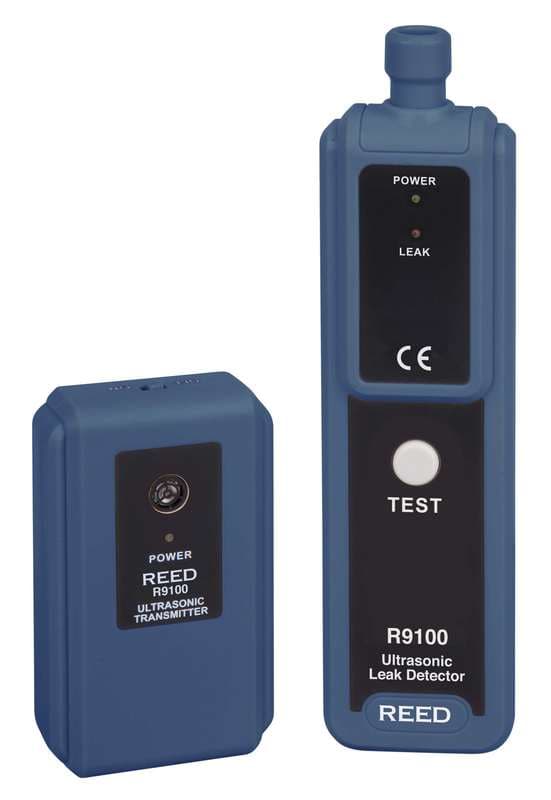

Reed R9100 Ultrasonic Leak Detector
REED R9100 ultrasonic leak detector with 40 kHz transmitter: finds pressure, vacuum, water, gas or air leaks with LED and audible alarms; earphones included.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9100 is an ultrasonic leak detector from REED Instruments, supplied as a kit with a receiver and a 40 kHz ultrasonic transmitter. It locates leaks generated by pressure, vacuum, water, gas or air, using visible (LED) and audible (ticking) alarms to pinpoint them.
Features (REED datasheet)
- Locates leaks generated by pressure, vacuum, water, gas or air.
- Visible (LED) and Audible (ticking) alarms assist in pinpointing leaks.
- Earphone jack for loud environments (earphones included).
- User adjustable sensitivity wheel.
- Ultrasonic Transmitter generates a 40 kHz signal.
- Includes transmitter, earphones, carrying case and batteries.
Frequently asked questions
What leaks can the R9100 ultrasonic leak detector find?
Leaks generated by pressure, vacuum, water, gas or air.
How does the ultrasonic leak detection kit work?
The kit's ultrasonic transmitter generates a 40 kHz signal; the receiver's frequency response is 40 kHz ±2 kHz, and visible LED and audible ticking alarms help pinpoint leaks. Sensitivity is adjusted with a wheel.
Can I use it in loud environments?
Yes. The receiver has an earphone jack and earphones are included.
What is included?
Receiver, transmitter, earphones, carrying case and batteries (power supply: 2 x 9V batteries).
Specifications
| Ranges | |
| Frequency Response | 40 kHz ±2 kHz |
| Output Frequency | 40 kHz |
| Power | |
| Power Supply | 2 "9V" Batteries |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 122°F (-20 to 50°C) |
| General | |
| Sensitivity Adjustment | Yes (wheel) |
| Alarm | Audible (Ticking) / Visual (LED) |
| Earphone Jack | Yes (Earphones included) |
| Power Indicator | LED |
| Product Certifications | CE, RoHS |
| Dimensions | Receiver: 7.6 x 2 x 1.2" (192 x 50 x 30 mm) |
| Transmitter | 3.9 x 2.3 x 1.1" (101 x 59 x 28 mm) |
| Weight | Receiver: 4.1 oz (115 g) |
| Transmitter | 3.2 oz (90 g) |
