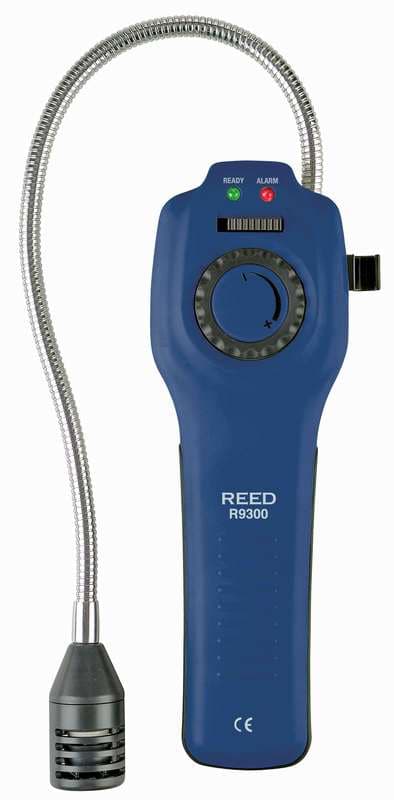

Reed R9300 Combustible Gas Detector
Model R9300
REED R9300 Combustible Gas Leak Detector: detects a wide range of combustible gases including; gasoline, propane, natural gas and fuel oil. High sensitivity detects small leaks.
From $129.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9300 is a combustible gas leak detector from REED Instruments.
Features (REED datasheet)
- Detects a wide range of combustible gases including; gasoline, propane, natural gas and fuel oil.
- High sensitivity detects small leaks.
- Designed for one-handed operation.
- 16" (406mm) gooseneck for hard to reach areas.
- User adjustable sensitivity wheel.
- Alarm set at 10% LEL for methane.
- Earphone jack for loud environments (earphones sold separately).
- Tricolor visual indicator.
- Audible (variable tick rate) and visual (LED) alarm indicators.
- User replaceable sensor.
- Includes batteries and soft carrying case.
Specifications
| Ranges | |
| Sensor Type | Heated semiconductor gas sensor |
| Response Time | Less than 2 seconds |
| Power | |
| Power Supply | 3 C Batteries |
| Battery Life | Approx. 8 hours |
| Environmental | |
| Operating Humidity | 10-90% R9300-RS Sensor Tip |
| General | |
| Detected Gases | Methane, Natural Gas, Benzene, Ethane, Propane, Butane, Acetone, Alcohol, Ammonia, Gasoline, Jet Fuel, Industrial Solvents, Lacquer, Paint Thinner |
| Sensitivity | 50ppm (methane) |
| Alarm | Audible (buzzer) and Visual (LED indicator) |
| Alarm Limit | Set at 10% LEL for Methane (Can be calibrated for other concentrations or gases up to 40% LEL) |
| Sensitivity Settings | Adjustable Wheel |
| Warm-up Time | Approx. 5 mins |
| Earphone Jack | Yes |
| Certifications | CE |
| Probe Length | 16" (406mm) |
| Operating Temp. | 32 to 122°F (0 to 50°C) |
| Storage Temp. | 14 to 140°F (-10 to 60°C) R9300 Combustible Gas Leak Detector |
| Dimensions | 8.7 x 2.8 x 1.8" |
| Weight | 18.4 oz (520g) R9300- |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R9300-NIST | COMBUSTIBLE GAS DETECTOR W/NIST CERT | $214.00 |
