REED Instruments

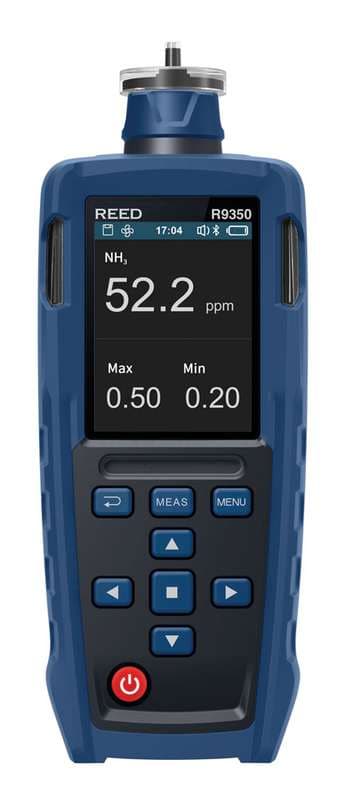

Reed R9350 Ammonia Gas Detector
Model R9350
REED R9350 Ammonia Gas Detector, 0 to 100ppm: 0 to 100 ppm detection range with built-in pump; range 0 to 100ppm. Easy-to-read 2.8" (71mm) LCD color screen.
From $749.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9350 is an ammonia gas detector, 0 to 100ppm from REED Instruments.
Features (REED datasheet)
- 0 to 100 ppm detection range with built-in pump.
- Easy-to-read 2.8" (71mm) LCD color screen.
- User selectable unit of measure (ppm, mg/m³).
- Real-time clock and date stamp.
- Audible, visual, and buzzer alarms.
- Rechargeable Li-ion battery.
- Low battery indicator and auto shut-off.
- Includes power adapter, filters, telescopic probe, and carrying case.
Key specifications (REED datasheet)
Published specifications include Accuracy: ±3.0% FS; Range: 0 to 100ppm; Resolution: 0.1ppm.
Specifications
| Accuracy | |
| Accuracy | ±3.0% FS |
| Ranges | |
| Range | 0 to 100ppm |
| Resolution | 0.1ppm |
| Pump Pressure | 90 to 110kPa |
| Power | |
| Power Supply | Universal AC adapter/charger; 3.7V rechargeable battery |
| Battery Life | Approx. 8-10 hours |
| Battery Charge Time | Approx. 4-5 hours |
| Environmental | |
| Operating Temperature | -4 to 104°F (-20 to 40°C) |
| Operating Humidity | 10 to 80% |
| Storage Temperature | -4 to 104°F (-20 to 40°C) |
| Storage Humidity | 10 to 80% |
| General | |
| Test Run Time | ~90 seconds |
| Internal Memory | 100 000 datapoints |
| Alarms | Yes (audible/visual/buzzer) |
| Unit of Measure | ppm, mg/m3 |
| Display | 2.8" (71mm) LCD Color Screen |
| and Date Stamp | Yes |
| Belt Clip | Yes |
| Max Probe Length | 3.5' (1.06m) |
| Autoshut off | Yes (10 mins, 30 mins, off) |
| Product Certifications | CE |
| Dimensions | 8 x 3 x 2.75" (203 x 76 x 70 mm) |
| Weight | 15.2oz (430g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R9350-NIST | AMMONIA GAS DETECTOR W/NIST CERT | $899.00 |
