REED Instruments

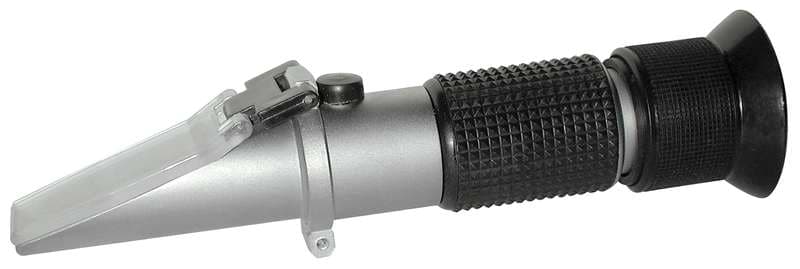

Reed R9700 Battery/Antifreeze Tester
Model R9700
REED R9700 Battery/Antifreeze Refractometer with ATC, C°: measures the freezing point of automotive coolants plus battery charge condition; range -50 to 0°C. Provides accurate and repeatable measurements of % Ethylene Glycol and Propylene Glycol and C° on easy to read scale.
From $125.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9700 is a battery/antifreeze refractometer with ATC (°C scale) from REED Instruments.
Features (REED datasheet)
- Measures the freezing point of automotive coolants plus battery charge condition.
- Provides accurate and repeatable measurements of % Ethylene Glycol and Propylene Glycol and C° on easy to read scale.
- Automatic Temperature Compensation (ATC).
- Requires only 2 or 3 drops of sample.
- Includes cover plate, calibration screwdriver, cleaning cloth, solution/sample applicator and hard carrying case.
Key specifications (REED datasheet)
Published specifications include Propylene and Ethylene Glycol Measuring Range: -50 to 0°C; Propylene and Ethylene Glycol Resolution: 1°C; Compensation Range: 10 to 30°C.
Specifications
| Ranges | |
| Propylene and Ethylene Glycol Measuring Range | -50 to 0°C |
| Propylene and Ethylene Glycol Resolution | 1°C |
| Compensation Range | 10 to 30°C |
| Power | |
| Specific Gravity of Battery Acid | 1.15 to 1.30 |
| General | |
| Minimum Scale Division | 5°C |
| Dimensions | 6.5 x 1 x 1.5" (170 x 30 x 40 mm) |
| Weight | 7oz (200g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R9700-NIST | BATTERY/ANTIFREEZE TESTER, -50/32°F, -45/0°C W/NIST CERT | $360.00 |
