REED Instruments

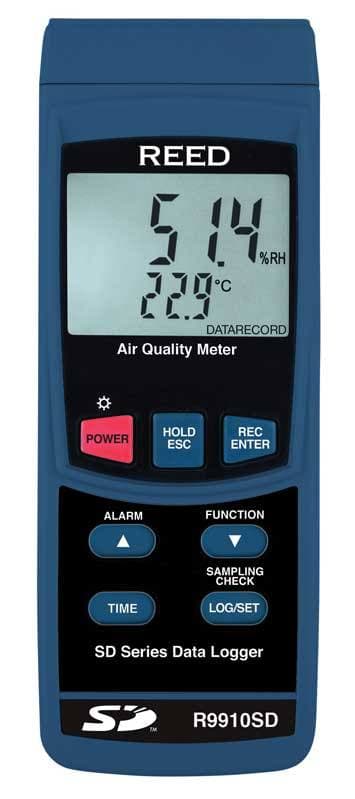

Reed R9910SD Data Logging Air Quality Meter
Model R9910SD
REED R9910SD Data Logging Air Quality Meter: measures oxygen (O2), carbon dioxide (CO2), carbon monoxide (CO), temperature and humidity; range 32 to 122.0°F (0 to 50.0°C). Records up to 3 readings simultaneously.
From $1,195.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9910SD is a data logging air quality meter from REED Instruments.
Features (REED datasheet)
- Measures oxygen (O2), carbon dioxide (CO2), carbon monoxide (CO), temperature and humidity.
- Records up to 3 readings simultaneously.
- User adjustable audible alarms.
- User selectable unit of measure (°F or °C).
- Data hold and Max/Min functions.
- Real-time datalogger with integrated SD memory card.
- User selectable sampling rate from 1 sec to 8 hrs.
- Easy-to-read backlit LCD display.
- Tripod mount for long-term monitoring.
- Low battery indicator and auto shut off.
- Includes humidity probe, carbon monoxide probe, carbon dioxide probe, oxygen probe, hard carrying case & batteries.
Specifications
| Accuracy | |
| Temperature Accuracy | ±1.5°F (±0.8°C) |
| Humidity Accuracy | >70%RH: ±(3% rdg + 1%RH) <70%RH: ±3%RH |
| CO2 Accuracy | <999 ppm: ±40 ppm >1,000 ppm ≤3000 ppm: ±5% rdg >3,000 ppm: ±250 ppm |
| CO Accuracy | ±(5% + 2 ppm) |
| O2 Accuracy | ±(1% + 0.2% O2) |
| Ranges | |
| Temperature Measuring Ranges | 32 to 122.0°F (0 to 50.0°C) |
| Dew Point | -13.5 to 120.1°F (-25.3 to 48.9°C) |
| Wet Bulb | -6.9 to 122.0°F (-21.6 to 50°C) |
| Temperature Resolution | 0.1°F/°C |
| Humidity Measuring Range | 5 to 95%RH |
| Humidity Resolution | 0.1%RH |
| CO2 Measuring Range | 0 to 4,000 ppm |
| CO2 Resolution | 1 ppm |
| CO Measuring Range | 0 to 1,000 ppm |
| CO Resolution | 1 ppm |
| O2 Measuring Range | 0 to 30% O2 |
| O2 Resolution | 0.10% |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R9910SD-KIT | DATA LOGGING INDOOR AIR QUALITY METER WITH POWER ADAPTER AND SD CARD | $1,199.00 | |
| R9910SD-NIST | DATA LOGGING AIR QUALITY METER W/NIST CERT | $1,625.00 |
Related products
Official compatibility and accessories for this model - not look-alike suggestions.
Official REED: R9910SD-CO2 CO2 sensor module for R9910SD multi-gas logger
Official REED: R9910SD-TH temperature/humidity module for R9910SD multi-gas logger
Official REED: R9910SD-CO CO sensor module for R9910SD multi-gas logger
Official REED: R9910SD-O2 O2 sensor module for R9910SD multi-gas logger
