REED Instruments

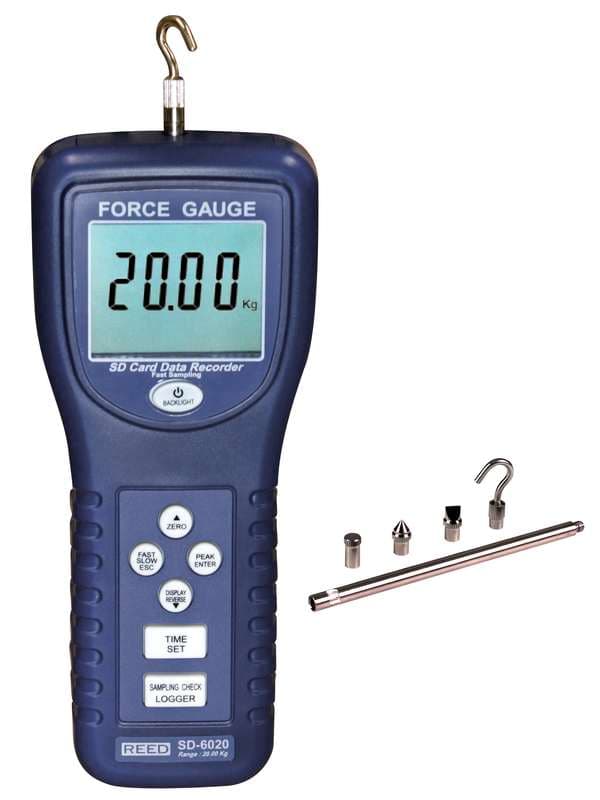

Reed SD-6020 Data Logging Force Gauge
Model SD-6020
REED SD-6020 Force Gauge Datalogger, 20kg: measures tension and compression; range 20.00kg 44.10lb 196.12N. Records in Peak hold or Normal mode.
From $795.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED SD-6020 is a force gauge datalogger, 20kg from REED Instruments.
Features (REED datasheet)
- Measures tension and compression.
- Records in Peak hold or Normal mode.
- Fast/Slow response selection.
- Full capacity tare (zero) capability.
- Force is measured in kg, lb or Newtons.
- Large, easy-to-read backlit display.
- Reversible display ensures legible readings regardless of direction.
- Real-time datalogger with integral SD memory card.
- User selectable sampling rate from 1 to 3600 seconds.
- Optional PC software features live tracking via.
Specifications
| Accuracy | |
| Accuracy | ±(0.5% rdg + 2 dgt.) |
| Ranges | |
| Measuring Range | 20.00kg 44.10lb 196.12N |
| Resolution | 0.01kg / 0.01lb / 0.02N |
| Response Time | Less than 1 sec. |
| General | |
| Full Scale Deflection | 0.4mm max. |
| Display | 4-digit LCD |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| SD-6020-NIST | DATA LOGGING FORCE GAUGE, 20KG W/NIST CERT | $1,040.00 |
