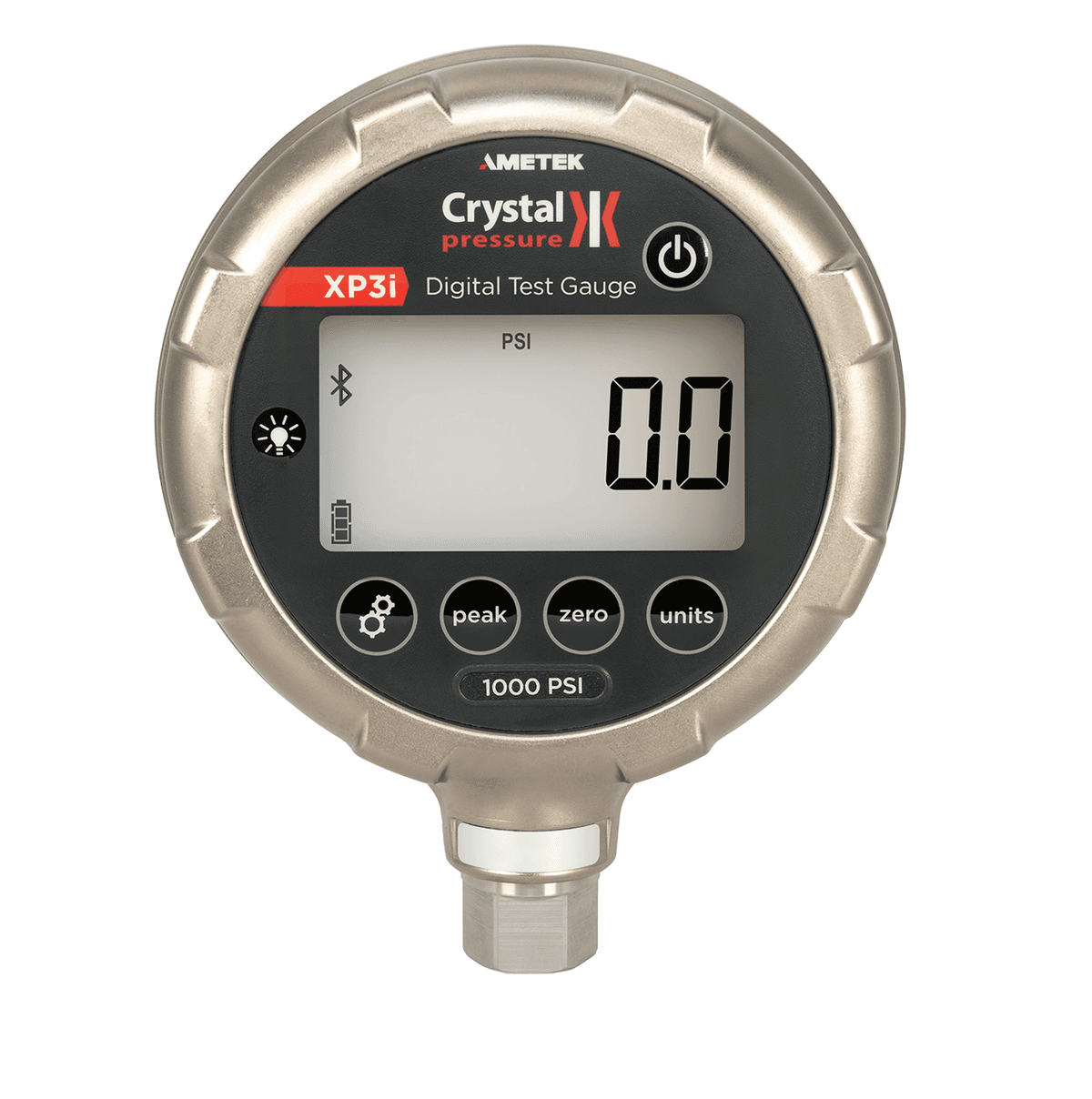

Crystal XP3i Digital Test Gauge
Ultra-rugged, intrinsically safe digital test gauge with 0.05% of reading accuracy, USB-C and Bluetooth, and optional DataLoggerXP storage of more than 200 million points. One XP3i typically replaces five or more of-scale gauges.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Crystal XP3i is the successor to the XP2i: an ultra-rugged, intrinsically safe digital test gauge with twice the of-reading accuracy and modern connectivity. Accuracy options are 0.05% of reading, 0.02% of full scale, or 0.05% of full scale. Carry one XP3i to cover a wide pressure range and replace multiple of-scale gauges.
Ranges run through 15,000 psi. The marine-grade enclosure resists corrosion (MIL-STD 810). Active digital temperature compensation holds accuracy from −20 to 50°C — an expanded range versus the XP2i — and every gauge ships with an ISO 17025 / A2LA calibration certificate with data at five temperatures.
USB-C and Bluetooth are standard. The CrystalConnect mobile app reads live pressure and starts logging runs from a safe area without removing the gauge from a hazardous location. Optional DataLoggerXP records more than 200 million data points (over a year of continuous recording). Free CrystalControlWeb cloud software graphs, shares, and exports tamper-proof PDF or spreadsheet files. Fast PSV mode and calibration reminders are built in.
Specifications
| Pressure | |
| Ranges | Vacuum through 15,000 psi / 1,000 bar |
| Accuracy | 0.05% of reading, 0.02% FS, or 0.05% FS |
| Compensation | −20 to 50°C (expanded vs XP2i) |
| Enclosure | |
| Housing | Marine-grade, corrosion-resistant (MIL-STD 810); IP67 |
| Safety | |
| Approvals | Intrinsically safe (ATEX / IECEx / CSA Class I, Div 1) |
| Communication | |
| Standard | USB-C and Bluetooth Low Energy |
| Software | |
| App / cloud | CrystalConnect mobile app and CrystalControlWeb |
| Data logging | |
| Optional DL | 200 million+ points; 1 year continuous with Ultra Low Power |
| Functions | |
| Modes | PSV, peak/valley, calibration reminders |
| Connection | |
| Fitting | Replaceable Crystal CPF adapter (NPT / BSP / M20) |
| Calibration | |
| Certificate | ISO 17025 / A2LA with data at 5 temperatures |
Documents
Build your part number
Configure your XP3i
Pick your options and we'll build the exact part number with a list-price estimate.
Select a pressure range to build your part number.
Prices come from the current Crystal price list. Pump systems G & H include a waterproof case as standard. Shipping and tax are confirmed when we review your order.
Ordering information
92 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| 6885 | Cable, USB-C / USB-A, 3 FT, Black | $44.00 | |
| 7095 | Protective Boot for XP3i | $54.00 | |
| 7190 | USB Universal Adapter, Wall Mount for XP3i * | $86.00 | |
| 7236 | Kit, Flange Adapter, 6 IN for XP3i w. -F4 Option | $183.00 | |
| 7237 | Kit, Flange Adapter, 8.5 IN for XP3i w. -F4 Option | $224.00 | |
| XP3i:100KKPA | 100000 kPa Gauge | $2,379.00 | |
| XP3i:100KPA | 100 kPa Gauge | $1,914.00 | |
| XP3i:100PSI | 100 PSI Gauge | $1,914.00 | |
| XP3i:10KPSI | 10K PSI Gauge | $2,011.00 | |
| XP3i:140BAR | 140 bar Gauge | $1,914.00 | |
| XP3i:14KKPA | 14000 kPa Gauge | $1,914.00 | |
| XP3i:15KPSI | 15K PSI Gauge | $2,379.00 | |
| XP3i:15PSI | 15 PSI Gauge | $1,914.00 | |
| XP3i:1BAR | 1 bar Gauge | $1,914.00 | |
| XP3i:1KBAR | 1000 bar Gauge | $2,379.00 | |
| XP3i:1KPSI | 1K PSI Gauge | $1,914.00 | |
| XP3i:200BAR | 200 bar Gauge | $1,914.00 | |
| XP3i:200KPA | 200 kPa Gauge | $1,914.00 | |
| XP3i:20BAR | 20 bar Gauge | $1,914.00 | |
| XP3i:20KKPA | 20000 kPa Gauge | $1,914.00 | |
| XP3i:2BAR | 2 bar Gauge | $1,914.00 | |
| XP3i:2KKPA | 2000 kPa Gauge | $1,914.00 | |
| XP3i:2KPSI | 2K PSI Gauge | $1,914.00 | |
| XP3i:300BAR | 300 bar Gauge | $1,914.00 | |
| XP3i:300PSI | 300 PSI Gauge | $1,914.00 | |
| XP3i:30BAR | 30 bar Gauge | $1,914.00 | |
| XP3i:30KKPA | 30000 kPa Gauge | $1,914.00 | |
| XP3i:30PSI | 30 PSI Gauge | $1,914.00 | |
| XP3i:3KKPA | 3000 kPa Gauge | $1,914.00 | |
| XP3i:3KPSI | 3K PSI Gauge | $1,914.00 | |
| XP3i:500PSI | 500 PSI Gauge | $1,914.00 | |
| XP3i:5KPSI | 5K PSI Gauge | $1,914.00 | |
| XP3i:700BAR | 700 bar Gauge | $2,011.00 | |
| XP3i:700KPA | 700 kPa Gauge | $1,914.00 | |
| XP3i:70BAR | 70 bar Gauge | $1,914.00 | |
| XP3i:70KKPA | 70000 kPa Gauge | $2,011.00 | |
| XP3i:7BAR | 7 bar Gauge | $1,914.00 | |
| XP3i:7KKPA | 7000 kPa Gauge | $1,914.00 | |
| XP3i:A100KKPA | 100000 kPa Absolute | $2,557.00 | |
| XP3i:A100PSI | 100 psi Absolute | $2,096.00 | |
| XP3i:A10BAR | 10 bar Absolute | $2,096.00 | |
| XP3i:A10KPSI | 10000 psi Absolute | $2,195.00 | |
| XP3i:A110KPA | 110 kPa Absolute (only in -S5 Option) | $2,096.00 | |
| XP3i:A1.1BAR | 1.1 bar Absolute (only in -S5 Option) | $2,096.00 | |
| XP3i:A140BAR | 140 bar Absolute | $2,096.00 | |
| XP3i:A14KKPA | 14000 kPa Absolute | $2,096.00 | |
| XP3i:A15KPSI | 15000 psi Absolute | $2,557.00 | |
| XP3i:A16PSI | 16 psi Absolute (only in -S5 Option) | $2,096.00 | |
| XP3i:A1KBAR | 1000 bar Absolute | $2,557.00 | |
| XP3i:A1KKPA | 1000 kPa Absolute | $2,096.00 | |
| XP3i:A1KPSI | 1000 psi Absolute | $2,096.00 | |
| XP3i:A200BAR | 200 bar Absolute | $2,096.00 | |
| XP3i:A20KKPA | 20000 kPa Absolute | $2,096.00 | |
| XP3i:A2KPSI | 2000 psi Absolute | $2,096.00 | |
| XP3i:A300BAR | 300 bar Absolute | $2,096.00 | |
| XP3i:A30BAR | 30 bar Absolute | $2,096.00 | |
| XP3i:A30KKPA | 30000 kPa Absolute | $2,096.00 | |
| XP3i:A3KKPA | 3000 kPa Absolute | $2,096.00 | |
| XP3i:A3KPSI | 3000 psi Absolute | $2,096.00 | |
| XP3i:A500PSI | 500 psi Absolute | $2,096.00 | |
| XP3i:A5KPSI | 5000 psi Absolute | $2,096.00 | |
| XP3i:A700BAR | 700 bar Absolute | $2,195.00 | |
| XP3i:A70BAR | 70 bar Absolute | $2,096.00 | |
| XP3i:A70KKPA | 70000 kPa Absolute | $2,195.00 | |
| XP3i:A7KKPA | 7000 kPa Absolute | $2,096.00 | |
| XP3i:AHX | System A (pneumatic) 0 to 40 bar | $2,113.00 | |
| XP3i:AXX | System A (pneumatic) 0 to 2 bar | $2,113.00 | |
| XP3i:BHX | System B (pneumatic) -0.91 to 40 bar | $2,291.00 | |
| XP3i:BSP | 1/4 BSP Male Pressure Fitting | Request a quote | |
| XP3i:BXX | System B (pneumatic) -0.91 to 2 bar | $2,291.00 | |
| XP3i:CHX | System C (oil) 0 to 350 bar | $2,206.00 | |
| XP3i:CXX | System C (oil) 0 to 200 bar | $1,940.00 | |
| XP3i:DD | Dual Line Display | $108.00 | |
| XP3i:DL | DataLoggerXP | $864.00 | |
| XP3i:DOX | System D (oil) 0 to 350 bar | $4,042.00 | |
| XP3i:DWX | System D (water) 0 to 350 bar | $4,042.00 | |
| XP3i:E | No Liquid (Pump Drained) | Request a quote | |
| XP3i:EOX | System E (oil) 0 to 700 bar | $5,702.00 | |
| XP3i:F4 | Rear Pressure Port & Panel Mount Flange | $286.00 | |
| XP3i:FOV | System F (oil) 0 to 1000 bar | $6,335.00 | |
| XP3i:FWV | System F (water) 0 to 1000 bar | $6,335.00 | |
| XP3i:GOX | System G (oil) 0 to 1000 bar | $6,758.00 | |
| XP3i:GWX | System G (water) 0 to 1000 bar | $6,758.00 | |
| XP3i:HOX | System H (oil/pneumatic) -0.91 to 350 bar | $3,863.00 | |
| XP3i:M20 | M20 x 1.5 Metric Male Pressure Fitting | $87.00 | |
| XP3i:NONE | Pump System Only | $213.00 | |
| XP3i:RP | Back / Rear Pressure Port | $206.00 | |
| XP3i:S2 | Accuracy 0.02% of FS | $442.00 | |
| XP3i:S5 | Accuracy 0.05% of FS | Request a quote | |
| XP3i:W | Additional Price for Waterproof Carrying Case | $270.00 | |
| XP3i:XP3I | XP3i Digital Test Gauge | Request a quote | |
| XP3i:XXX | See Pressure Range section for price and correct ordering code | Request a quote |
