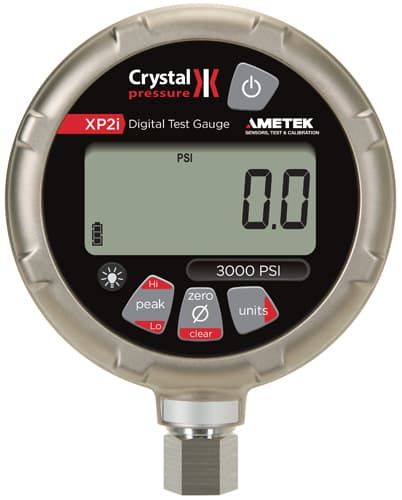

Crystal XP2i Digital Pressure Test Gauge
Ultra-rugged, intrinsically safe digital test gauge with 0.1% of reading accuracy (0.02% or 0.05% FS options), marine-grade enclosure, and optional DataLoggerXP recording of 32,000 points. One XP2i typically replaces five or more gauges.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Crystal XP2i is one of the world’s most popular digital test gauges — ultra-rugged, intrinsically safe, and accurate enough that a single gauge typically replaces five or more of-scale instruments. Accuracy is 0.1% of reading (or 0.02% / 0.05% of full scale). Ranges run through 15,000 psi. AMETEK's XP2i manual names Crystal Engineering Corporation as the company that designs, manufactures and services the XP2i, nVision and 30 Series; Crystal Engineering pressure gauges pioneered full temperature compensation and "of reading" accuracy ratings.
The marine-grade enclosure resists corrosion. Accuracy is unaffected from −10 to 50°C. Fast PSV mode, peak/valley capture, and calibration reminders are built in. The optional DataLoggerXP upgrade records up to 32,000 points over a year of continuous use with Ultra Low Power mode. ConfigXP software customizes units and features over RS-232.
Every XP2i includes an ISO 17025 / A2LA calibration certificate with NIST-traceable data. Everyday wear shifts to a replaceable Crystal CPF adapter.
XP2i options (AMETEK)
- -S2 / -S5: 0.02% or 0.05% of full scale accuracy, instead of the standard 0.1% of reading.
- -DL DataLoggerXP: records up to 32,000 measurements. The software handles transfer to your PC and can update the gauge firmware.
- -DD dual line display: a second display line shows peaks, average, leak rate, or differential pressure when the XP2i is connected to a second gauge with an ordinary DB-9 null modem cable. AMETEK recommends it for relief valve and leak testing.
- -F4 panel mounting: a 4.5 in panel mount kit with a rear pressure port, to replace a 6 in or 8.5 in panel-mount gauge. -RP rear port fitting is also available on its own.
- Process connections: -BSP G ¼ B parallel fitting, or -M20 M20 x 1.5 male CPF adapter.
- AMETEKCal: discounted three-year calibration program.
Documentation (AMETEK)
AMETEK publishes the XP2i datasheet in psi, bar and kPa versions, an XP3i / XP2i product comparison, and manuals for the XP2i, its external power supply and flange mount, XP2i / XP3i programming, and ConfigXP.
Related Crystal gauges
- XP3i digital test gauge
- XP2i-DP differential pressure gauge
- m1 pressure gauge
- For a pocket calibrator that also reads milliamps, see the Crystal 30 Series.
- Browse all digital pressure gauges.
Specifications
| Pressure | |
| Ranges | Vacuum through 15,000 psi / 1,000 bar |
| Accuracy | 0.1% of reading, 0.02% FS, or 0.05% FS |
| Compensation | −10 to 50°C |
| Enclosure | |
| Housing | Marine-grade, corrosion-resistant; intrinsically safe |
| Data logging | |
| Optional DL | 32,000 points; 1 year continuous with Ultra Low Power |
| Functions | |
| Modes | PSV, peak/valley, calibration reminders |
| Interface | |
| Digital | RS-232; ConfigXP configuration software |
| Connection | |
| Fitting | Replaceable Crystal CPF adapter |
| Calibration | |
| Certificate | ISO 17025 / A2LA, NIST traceable |
Videos
Documents
Build your part number
Configure your XP2i
Pick your options and we'll build the exact part number with a list-price estimate.
Select a pressure range to build your part number.
Prices come from the current Crystal price list. Pump systems G & H include a waterproof case as standard. Shipping and tax are confirmed when we review your order.
Ordering information
71 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| 125254 | Aluminum carrying case for system A / B | $1,136.00 | |
| 125255 | Aluminum carrying case for system C | $1,136.00 | |
| 2400 | Cable - RS232 DB9F to DB9M 2 m (6 ft) | $58.00 | |
| 2955 | Kit, Flange Adapter, 6 IN for XP2i w. -F4 Option | $183.00 | |
| 2956 | Kit, Flange Adapter, 8.5 IN for XP2i w. -F4 Option | $224.00 | |
| 2984 | AC Adapter Kit for XP2i | $285.00 | |
| 3313 | Adapter - USB A to RS232 DB9M | $183.00 | |
| 3456 | Adapter - RS232 null modem DB9M to DB9F | $58.00 | |
| 3696 | Protective Boot for XP2i, 2nd Generation | $67.00 | |
| 3696-RED | Protective Boot for XP2i, 2nd Generation RED | $67.00 | |
| 5778 | CPF Capture Strap | $42.00 | |
| XP2i:100KKPA | 100000 kPa Gauge | $2,425.00 | |
| XP2i:100KPA | 100 kPa Gauge | $1,913.00 | |
| XP2i:100PSI | 100 psi Gauge | $1,913.00 | |
| XP2i:10KPSI | 10K psi Gauge | $2,020.00 | |
| XP2i:140BAR | 140 bar Gauge | $1,913.00 | |
| XP2i:14KKPA | 14000 kPa Gauge | $1,913.00 | |
| XP2i:15KPSI | 15K psi Gauge | $2,425.00 | |
| XP2i:15PSI | 15 psi Gauge | $1,913.00 | |
| XP2i:1BAR | 1 bar Gauge | $1,913.00 | |
| XP2i:1KBAR | 1000 bar Gauge | $2,425.00 | |
| XP2i:1KPSI | 1K psi Gauge | $1,913.00 | |
| XP2i:200BAR | 200 bar Gauge | $1,913.00 | |
| XP2i:200KPA | 200 kPa Gauge | $1,913.00 | |
| XP2i:20BAR | 20 bar Gauge | $1,913.00 | |
| XP2i:20KKPA | 20000 kPa Gauge | $1,913.00 | |
| XP2i:2BAR | 2 bar Gauge | $1,913.00 | |
| XP2i:2KKPA | 2000 kPa Gauge | $1,913.00 | |
| XP2i:2KPSI | 2K psi Gauge | $1,913.00 | |
| XP2i:300BAR | 300 bar Gauge | $1,913.00 | |
| XP2i:300PSI | 300 psi Gauge | $1,913.00 | |
| XP2i:30BAR | 30 bar Gauge | $1,913.00 | |
| XP2i:30KKPA | 30000 kPa Gauge | $1,913.00 | |
| XP2i:30PSI | 30 psi Gauge | $1,913.00 | |
| XP2i:3KKPA | 3000 kPa Gauge | $1,913.00 | |
| XP2i:3KPSI | 3K psi Gauge | $1,913.00 | |
| XP2i:500PSI | 500 psi Gauge | $1,913.00 | |
| XP2i:5KPSI | 5K psi Gauge | $1,913.00 | |
| XP2i:700BAR | 700 bar Gauge | $2,020.00 | |
| XP2i:700KPA | 700 kPa Gauge | $1,913.00 | |
| XP2i:70BAR | 70 bar Gauge | $1,913.00 | |
| XP2i:70KKPA | 70000 kPa Gauge | $2,020.00 | |
| XP2i:7BAR | 7 bar Gauge | $1,913.00 | |
| XP2i:7KKPA | 7000 kPa Gauge | $1,913.00 | |
| XP2i:AHX | System A (pneumatic) 0 to 40 bar | $2,113.00 | |
| XP2i:AXX | System A (pneumatic) 0 to 2 bar | $2,113.00 | |
| XP2i:BHX | System B (pneumatic) -0.91 to 40 bar | $2,291.00 | |
| XP2i:BSP | 1/4 BSP Male Pressure Fitting | Request a quote | |
| XP2i:BXX | System B (pneumatic) -0.91 to 2 bar | $2,291.00 | |
| XP2i:CHX | System C (oil) 0 to 350 bar | $2,206.00 | |
| XP2i:CXX | System C (oil) 0 to 200 bar | $1,940.00 | |
| XP2i:DD | Dual Line Display | $378.00 | |
| XP2i:DL | DataLoggerXP | $990.00 | |
| XP2i:DOX | System D (oil) 0 to 350 bar | $4,042.00 | |
| XP2i:DWX | System D (water) 0 to 350 bar | $4,042.00 | |
| XP2i:E | No Liquid (Pump Drained) | Request a quote | |
| XP2i:EOX | System E (oil) 0 to 700 bar | $5,702.00 | |
| XP2i:F4 | Rear Pressure Port & Panel Mount Flange | $286.00 | |
| XP2i:FOV | System F (oil) 0 to 1000 bar | $6,335.00 | |
| XP2i:FWV | System F (water) 0 to 1000 bar | $6,335.00 | |
| XP2i:GOX | System G (oil) 0 to 1000 bar | $6,758.00 | |
| XP2i:GWX | System G (water) 0 to 1000 bar | $6,758.00 | |
| XP2i:HOX | System H (oil/pneumatic) -0.91 to 350 bar | $3,863.00 | |
| XP2i:M20 | M20 x 1.5 Metric Male Pressure Fitting | $87.00 | |
| XP2i:NONE | Pump System Only | $213.00 | |
| XP2i:RP | Back / Rear Pressure Port | $206.00 | |
| XP2i:S2 | Accuracy 0.02% of F.S. | $442.00 | |
| XP2i:S5 | Accuracy 0.05% of F.S. | Request a quote | |
| XP2i:W | Additional Price for Waterproof Carrying Case | $270.00 | |
| XP2i:XP2I | XP2i Digital Test Gauge | Request a quote | |
| XP2i:XXX | See Pressure Range section for price and correct ordering code | Request a quote |
