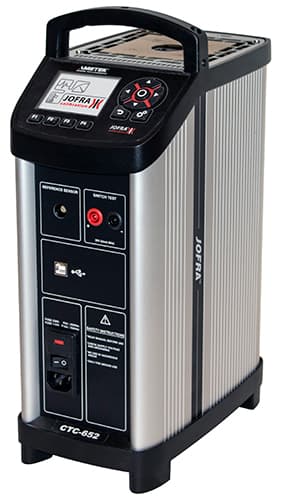

JOFRA CTC-652 Compact Temperature Calibrator
JOFRA CTC-652 compact dry-block calibrator, 28 to 650°C, with 190 mm immersion depth for long industrial sensors.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The CTC-652 covers 28 to 650°C (82 to 1202°F) and offers 190 mm immersion depth for long sensors. The JOFRA CTC Series is a compact dry-block calibrator for fast, accurate on-site work in oil and gas, pharmaceuticals, food processing, and HVAC. Across five models the series covers −25 to 1205°C (−13 to 2201°F), with accuracy up to ±0.2°C and stability of ±0.04°C. A large color display and one-key, one-function buttons provide automatic switch testing and auto-stepping. The CTC-652 offers 190 mm immersion depth for long sensors, and all C models include an input for an external reference sensor. MVI (Mains Voltage Immunity) circuitry maintains stability when supply voltage varies.
Specifications
| Temperature | |
| Range (ambient 23°C) | 28 to 650°C / 82 to 1202°F |
| Accuracy | |
| Accuracy, internal reference | ±0.65°C @ 650°C; ±0.60°C @ 400°C; ±0.50°C @ 200°C |
| Accuracy, external reference (STS-200-A-970) | ±0.45°C @ 650°C; ±0.40°C @ 400°C; ±0.35°C @ 200°C |
| Stability | |
| Stability | ±0.05°C / ±0.09°F |
| Radial homogeneity | 0.08°C @ 650°C; 0.03°C @ 400°C |
| Speed | |
| Heating time | 23 to 650°C in 33 minutes |
| Cooling time | 650 to 100°C in 48 minutes; 100 to 50°C in 25 minutes |
| Time to stability (typical) | 5 minutes |
| Mechanical | |
| Immersion depth | 190 mm / 7.48 in |
| Well diameter | 26 mm / 1.02 in |
| Insert dimensions (Ø × length) | 25.7 × 200 mm |
| Dimensions (L × W × H) | 248 × 148 × 390 mm / 9.76 × 5.83 × 15.35 in |
| Weight | 9.0 kg / 19.8 lb |
| Electrical | |
| Max power consumption | 1150 VA |
| Switch input (dry contact) | Max 14 VDC / 1 mA |
| Interface | |
| Digital interface | USB 2.0 |
| Environmental | |
| Operating temperature | 0 to 50°C / 32 to 122°F |
| Protection class | IP-10 |
| Source | |
| Specification source | JOFRA CTC-155/350/652/660 datasheet (AMETEK STC), model CTC-652 |
Documents
Build your part number
Configure your CTC652
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model version, power supply, mains cable to build your part number.
Well / insert codes and prices are from the official JOFRA insert table for this well. Shipping and tax are confirmed when we review your order.
Ordering information
29 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| CTC652:acc:CR | Solid Protective Carrying Case & Support rod set | $1,189.00 | |
| CTC652:acc:CX | Solid Protective Carrying Case | $768.00 | |
| CTC652:acc:SR | Support Rod Set | $449.00 | |
| CTC652:acc:XX | No Accessories (standard delivery) | Request a quote | |
| CTC652:base:CTC652 | 28°C to 650°C with Standard Accessories | Request a quote | |
| CTC652:cable:A | European, 230V | Request a quote | |
| CTC652:cable:B | USA / CANADA, 115V | Request a quote | |
| CTC652:cable:C | UK, 240V | Request a quote | |
| CTC652:cable:D | South Africa, 220V | Request a quote | |
| CTC652:cable:E | Italy, 220V | Request a quote | |
| CTC652:cable:F | Australia, 240V | Request a quote | |
| CTC652:cable:G | Denmark, 230V | Request a quote | |
| CTC652:cable:H | Switzerland, 230V | Request a quote | |
| CTC652:cable:I | Israel, 230V | Request a quote | |
| CTC652:cert:F | Traceable Certificate to International Standards (Standard delivery) | Request a quote | |
| CTC652:cert:H | Accredited Certificate - ISO17025 | $674.00 | |
| CTC652:cert:HS | System Calibration - Accredited Certificate - ISO17025 (Only with STS Sensor) | $1,079.00 | |
| CTC652:insert:MXX | 1 x Multi Hole Insert (Please see Insert Selection for correct code) | $644.00 | |
| CTC652:insert:NON | Without Insert (Standard delivery) | Request a quote | |
| CTC652:insert:SIM | Complete Set of Imperial Inserts - Inch | $3,502.00 | |
| CTC652:insert:SMM | Complete Set of Metric Inserts - MM | $4,051.00 | |
| CTC652:insert:UNX | 1 x Undrilled Insert (Please see Insert Selection for correct code) | $151.00 | |
| CTC652:insert:XXX | 1 x Single Hole Insert (Please see Insert Selection for correct code) | $395.00 | |
| CTC652:power:115 | 115VAC, 50/60Hz | Request a quote | |
| CTC652:power:230 | 230VAC, 50/60Hz | Request a quote | |
| CTC652:ref:R4 | STS-200 Reference Sensor, Diameter 4mm - Length 240mm, STS200A970EH | $2,252.00 | |
| CTC652:ref:XX | Without Reference Sensor (standard delivery) | Request a quote | |
| CTC652:version:A | Basic Model, No Inputs | $9,173.00 | |
| CTC652:version:C | Reference Sensor Input | $10,435.00 |
