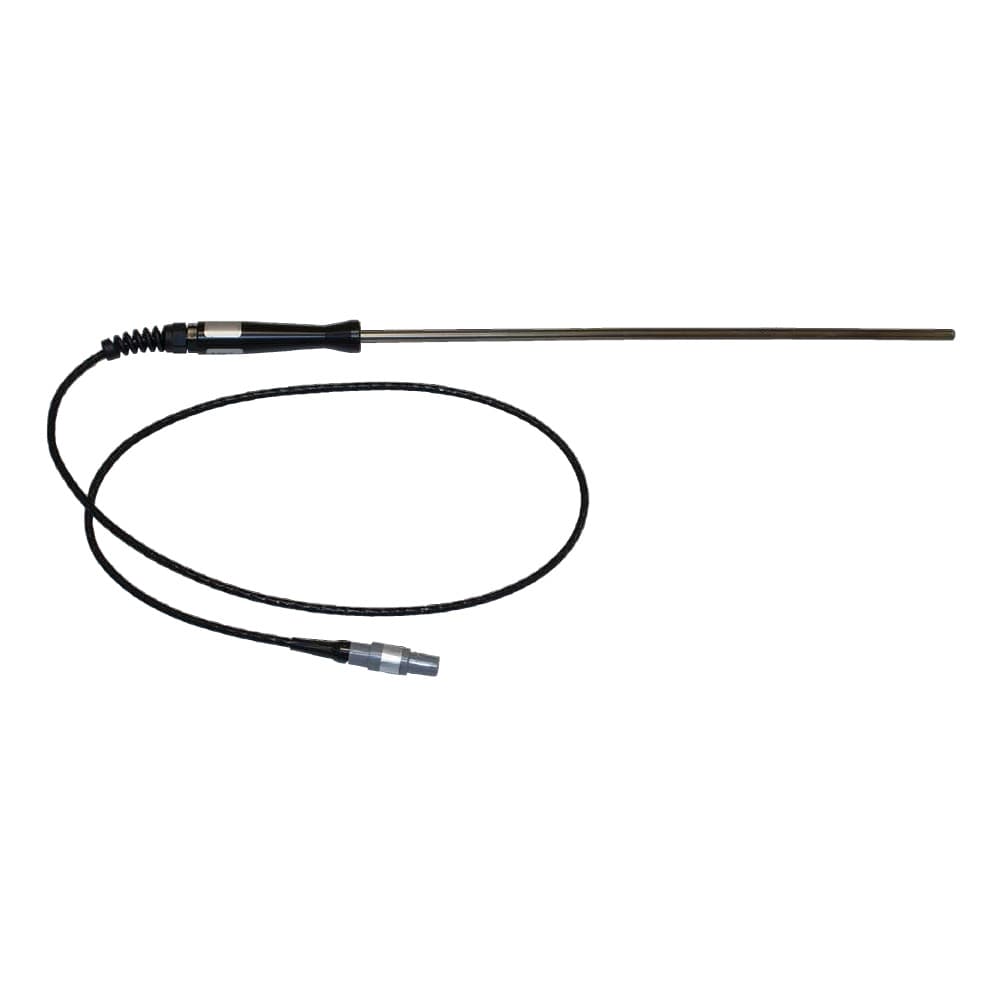

JOFRA STS-102 Reference Sensor
Short / cable-type Pt100 reference sensor for short and sanitary applications. Official AMETEK documentation lists −45 to 155°C (−49 to 311°F) for the STS-102 cable sensor.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The STS Reference Sensors are Pt100 reference probes used as the reference instrument to verify true temperature in any type of hand-held, liquid bath, or dry-block calibrator. Official AMETEK series features include fast response times, low immersion depths, compact physical sizes, specified low drift rates, and a special short sensor for short and sanitary applications.
AMETEK designed a special cable-type reference sensor, the STS-102 A. Due to the small size and flexible connection, the design permits positioning of the sensor throughout the depth of the well in a dry-block, for example under a sanitary flange. The reference sensor must be placed at the same level and in parallel with the sensor-under-test. Official DTI-1000 / STS documentation lists the STS-102 cable sensor −45 to 155°C (−49 to 311°F).
Official sources: https://www.ametekcalibration.com/products/temperature/reference-temperature-sensors/sts-reference-sensors and the official STS selection guide / DTI-1000 STS datasheet.
Specifications
| Sensor | |
| Type | Special short / cable-type Pt100 reference sensor for sanitary applications |
| Range | |
| Temperature | −45 to 155°C (−49 to 311°F) (STS-102 cable sensor, official DTI-1000 STS datasheet) |
| Application | |
| Use | Position throughout the depth of a dry-block well, e.g. under a sanitary flange |
| System | |
| With RTC (series) | ±0.04°C system accuracy (STS series, official AMETEK page) |
Documents
Ordering information
8 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| STS102:cable:D | Cable 1 m (3.3 ft.) with LEMO / Redel connector for DTI050 | Request a quote | |
| STS102:cable:E | Cable 1 m (3.3 ft.) with LEMO / Redel connector for RTC | Request a quote | |
| STS102:cable:S | Cable 1 m (3.3 ft.), Integrated Teflon Cable with LEMO connector | Request a quote | |
| STS102:cert:H | Accredited Certificate - ISO17025 - Standard | Request a quote | |
| STS102:cert:I | No Certificate - Annealed only * | Request a quote | |
| STS102:diameter-of-the-probe:A | Overall diameter 4 mm (0.16 in) | Request a quote | |
| STS102:shape-and-lenght:030 | Short Sensor 30mm, -50°C to 155°C | $1,436.00 | |
| STS102:shape-and-lenght:035 | Short Sensor 35mm, -50°C to 165°C | $1,608.00 |
