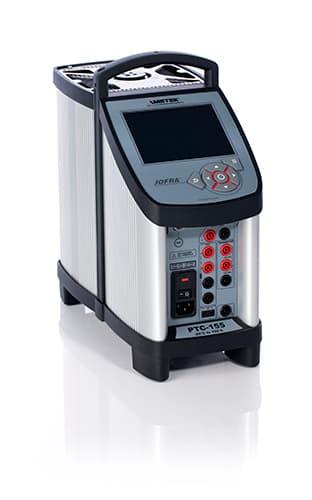

JOFRA PTC-155 Professional Temperature Calibrator
Model PTC155
JOFRA PTC-155 professional dry-block calibrator, −25 to 155°C, with active dual-zone control and Plug and Play reference sensors.
From $11,131.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PTC-155 covers −25 to 155°C (−13 to 311°F). The JOFRA PTC Series brings laboratory-grade temperature calibration into a portable package for pharmaceutical, oil and gas, and food-processing work. Active dual-zone temperature control maintains homogeneity in the well. Across five models the series covers −90 to 660°C (−130 to 1220°F), with accuracy up to ±0.06°C and stability of ±0.01°C. Fast heating — up to 350°C in seven minutes — reduces downtime. An easy-to-read color display and Plug and Play intelligent reference sensors simplify setup. JofraCal software supports data logging, thermocouple calibration, and reporting.
Specifications
| Temperature | |
| Range (ambient 23°C) | −25 to 155°C / −13 to 311°F |
| Accuracy | |
| Accuracy, external STS-150 reference | ±0.06°C / ±0.11°F |
| Accuracy, internal reference | ±0.18°C / ±0.32°F |
| Stability | |
| Stability | ±0.01°C / ±0.018°F |
| Radial homogeneity | 0.01°C / 0.02°F |
| Speed | |
| Heating time | −25 to 23°C in 4 minutes; 23 to 155°C in 12 minutes |
| Cooling time | 155 to 23°C in 10 minutes; 23 to −25°C in 15 minutes |
| Time to stability (approx.) | 10 minutes |
| Mechanical | |
| Immersion depth | 160 mm / 6.3 in |
| Well diameter | 26 mm / 1.02 in |
| Insert dimensions (Ø × length) | 25.8 × 150 mm |
| Dimensions (L × W × H) | 362 × 171 × 363 mm / 14.3 × 6.7 × 14.3 in |
| Weight | 10.3 kg / 22.7 lb |
| Electrical | |
| Max power consumption | 400 W |
| Switch input (model B, dry contact) | Max 5 VDC / 2.5 mA |
| Interface | |
| Digital interface | USB 2.0 device port |
| Environmental | |
| Operating temperature | 0 to 40°C / 32 to 104°F |
| Protection class | IP-10 |
| Source | |
| Specification source | JOFRA PTC-155/350/425/660 datasheet (AMETEK STC), model PTC-155 |
Documents
Build your part number
Configure your PTC155
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model version, power supply, mains cable to build your part number.
Well / insert codes and prices are from the official JOFRA insert table for this well. Shipping and tax are confirmed when we review your order.
Ordering information
46 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| PTC155:acc:CR | Solid Protective Carrying Case & Support rod set | $1,930.00 | |
| PTC155:acc:CT | Solid Protective Carrying Case with Trolley | $1,482.00 | |
| PTC155:acc:CX | Solid Protective Carrying Case | $1,063.00 | |
| PTC155:acc:SR | Support Rod Set | $867.00 | |
| PTC155:acc:TR | Solid Protective Carrying Case with Trolley & Support Rod set | $2,348.00 | |
| PTC155:and-sensor-under-test-in:C | Middle Model, Including Reference Sensor Input | $14,906.00 | |
| PTC155:base:PTC155 | -25°C to 155°C with Standard Accessories | Request a quote | |
| PTC155:cable:A | European, 230V | Request a quote | |
| PTC155:cable:B | USA / CANADA, 115V | Request a quote | |
| PTC155:cable:C | UK, 240V | Request a quote | |
| PTC155:cable:D | South Africa, 220V | Request a quote | |
| PTC155:cable:E | Italy, 220V | Request a quote | |
| PTC155:cable:F | Australia, 240V | Request a quote | |
| PTC155:cable:G | Denmark, 230V | Request a quote | |
| PTC155:cable:H | Switzerland, 230V | Request a quote | |
| PTC155:cable:I | Israel, 230V | Request a quote | |
| PTC155:cert:EA | Full EURAMET Accredited Certificate - ISO17025 | $1,924.00 | |
| PTC155:cert:EAS | System Calibration - Full EURAMET Accredited Certificate - ISO17025 (Only with STS) | $2,310.00 | |
| PTC155:cert:F | Traceable Certificate to International Standards (Standard delivery) | Request a quote | |
| PTC155:cert:H | Accredited Certificate - ISO17025 | $674.00 | |
| PTC155:cert:HS | System Calibration - Accredited Certificate - ISO17025 (Only with STS) | $1,079.00 | |
| PTC155:insert:MXX | 1 x Multi Hole Insert (Please see Insert Selection for correct code) | $374.00 | |
| PTC155:insert:NON | Without Insert (Standard delivery) | Request a quote | |
| PTC155:insert:SIM | Complete Set of Imperial Inserts (Please see Insert Selection for holes) | $1,846.00 | |
| PTC155:insert:SIX | Set of Imperial Multi Inserts (Please see Insert Selection for holes) | $878.00 | |
| PTC155:insert:SMM | Complete Set of Metric Inserts (Please see Insert Selection for holes) | $2,871.00 | |
| PTC155:insert:SMX | Set of Metric Multi Inserts (Please see Insert Selection for holes) | $1,365.00 | |
| PTC155:insert:UNX | 1 x Undrilled Insert (Please see Insert Selection for correct code) | $71.00 | |
| PTC155:insert:XXX | 1 x Single Hole Insert (Please see Insert Selection for correct code) | $244.00 | |
| PTC155:opt:60F135 | Mains cable - USA / Canada, 115VAC | $57.00 | |
| PTC155:opt:60F136 | Mains cable - UK, 240VAC | $57.00 | |
| PTC155:opt:60F137 | Mains cable - South Africa, 220VAC | $57.00 | |
| PTC155:opt:60F138 | Mains cable - Italy, 220VAC | $57.00 | |
| PTC155:opt:60F139 | Mains cable - Australia, 240VAC | $57.00 | |
| PTC155:opt:60F140 | Mains cable - European, 230VAC | $57.00 | |
| PTC155:opt:60F141 | Mains cable - Denmark, 230VAC | $57.00 | |
| PTC155:opt:60F142 | Mains cable - Switzerland, 220VAC | $57.00 | |
| PTC155:opt:60F143 | Mains cable - Israel, 230VAC | $57.00 | |
| PTC155:opt:60F170 | Tool for Insert | $40.00 | |
| PTC155:power:115 | 115VAC, 50/60Hz | Request a quote | |
| PTC155:power:230 | 230VAC, 50/60Hz | Request a quote | |
| PTC155:ref:R1 | STS-102 Reference Sensor, Diameter 4mm - Length 30mm, STS102A030EH | $1,436.00 | |
| PTC155:ref:R11 | STS-150 Reference Sensor, Diameter 4mm - Length 180mm, STS150A915EH | $1,876.00 | |
| PTC155:user-interface-functiona:U1 | Complete functionality Package (U1 is only available for B models) | $537.00 | |
| PTC155:version:A | Basic Model, Without Input | $11,131.00 | |
| PTC155:version:B | Full Model, Including Reference Sensor Input | $15,626.00 |
