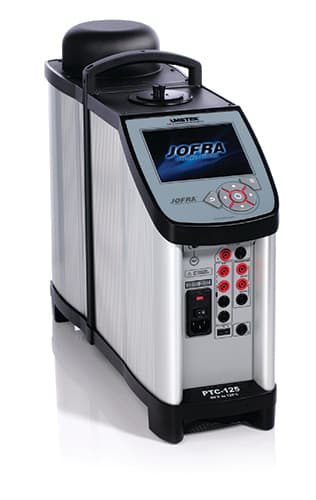

JOFRA PTC-125 Professional Temperature Calibrator
JOFRA PTC-125 professional dry-block calibrator, −90 to 125°C, with active dual-zone control for lab-grade field work.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PTC-125 cooler covers −90 to 125°C (−130 to 257°F), the low end of the PTC family’s −90 to 660°C span. The JOFRA PTC Series brings laboratory-grade temperature calibration into a portable package for pharmaceutical, oil and gas, and food-processing work. Active dual-zone temperature control maintains homogeneity in the well. Across five models the series covers −90 to 660°C (−130 to 1220°F), with accuracy up to ±0.06°C and stability of ±0.01°C. Fast heating — up to 350°C in seven minutes — reduces downtime. An easy-to-read color display and Plug and Play intelligent reference sensors simplify setup. JofraCal software supports data logging, thermocouple calibration, and reporting.
Specifications
| Temperature | |
| Range (ambient 0°C or 23°C) | −90 to 125°C / −130 to 257°F |
| Range (ambient 40°C) | −73 to 125°C / −99 to 257°F |
| Accuracy | |
| Accuracy, external STS-150 reference (models B and C) | ±0.07°C / ±0.13°F |
| Accuracy, internal reference | ±0.30°C / ±0.54°F |
| Stability | |
| Stability | ±0.03°C / ±0.054°F |
| Radial homogeneity | 0.01°C / 0.02°F |
| Speed | |
| Heating time | −90 to 23°C in 15 minutes; 23 to 125°C in 13 minutes |
| Cooling time | 125 to 23°C in 40 minutes; 23 to −90°C in 105 minutes |
| Time to stability (approx.) | 10 minutes |
| Mechanical | |
| Immersion depth | 190 mm |
| Insert dimensions | 29.7 mm OD × 150 mm |
| Dimensions (L × W × H) | 531 × 169 × 432 mm / 20.9 × 6.65 × 17.0 in |
| Weight | 15.2 kg / 33.5 lb |
| Electrical | |
| Max power consumption | 450 VA |
| Switch input (model B, dry contact) | Max 5 VDC / 2.5 mA |
| Interface | |
| Digital interface | USB 2.0 device port |
| Environmental | |
| Operating temperature | 0 to 40°C / 32 to 104°F |
| Protection class | IP-10 |
| Source | |
| Specification source | JOFRA PTC-125 datasheet (AMETEK STC), model PTC-125 |
Documents
Build your part number
Configure your PTC125
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model version, power supply, mains cable to build your part number.
Well / insert codes and prices are from the official JOFRA insert table for this well. Shipping and tax are confirmed when we review your order.
Ordering information
42 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| PTC125:acc:CT | Solid Protective Carrying Case with Trolley | Request a quote | |
| PTC125:acc:TR | Solid Protective Carrying Case with Trolley & Support Rod set | $867.00 | |
| PTC125:and-sensor-under-test-in:C | Middle Model, Including Reference Sensor Input | $27,131.00 | |
| PTC125:base:PTC125 | -90°C to 125°C with Standard Accessories | Request a quote | |
| PTC125:cable:A | European, 230V | Request a quote | |
| PTC125:cable:B | USA / CANADA, 115V | Request a quote | |
| PTC125:cable:C | UK, 240V | Request a quote | |
| PTC125:cable:D | South Africa, 220V | Request a quote | |
| PTC125:cable:E | Italy, 220V | Request a quote | |
| PTC125:cable:F | Australia, 240V | Request a quote | |
| PTC125:cable:G | Denmark, 230V | Request a quote | |
| PTC125:cable:H | Switzerland, 230V | Request a quote | |
| PTC125:cable:I | Israel, 230V | Request a quote | |
| PTC125:cert:EA | Full EURAMET Accredited Certificate - ISO17025 | $1,924.00 | |
| PTC125:cert:EAS | System Calibration - Full EURAMET Accredited Certificate - ISO17025 (Only with STS) | $2,310.00 | |
| PTC125:cert:F | Traceable Certificate to International Standards (Standard delivery) | Request a quote | |
| PTC125:cert:H | Accredited Certificate - ISO17025 | $674.00 | |
| PTC125:cert:HS | System Calibration - Accredited Certificate - ISO17025 (Only with STS) | $1,079.00 | |
| PTC125:insert:MXX | 1 x Multi Hole Insert (Please see Insert Selection for correct code) | $396.00 | |
| PTC125:insert:NON | Without Insert (Standard delivery) | Request a quote | |
| PTC125:insert:SIM | Complete Set of Imperial Inserts (Please see Insert Selection for holes) | $1,930.00 | |
| PTC125:insert:SIX | Set of Imperial Multi Inserts (Please see Insert Selection for holes) | $923.00 | |
| PTC125:insert:SMM | Complete Set of Metric Inserts (Please see Insert Selection for holes) | $3,011.00 | |
| PTC125:insert:SMX | Set of Metric Multi Inserts (Please see Insert Selection for holes) | $1,433.00 | |
| PTC125:insert:UNX | 1 x Undrilled Insert (Please see Insert Selection for correct code) | $71.00 | |
| PTC125:insert:XXX | 1 x Single Hole Insert (Please see Insert Selection for correct code) | $250.00 | |
| PTC125:opt:60F135 | Mains cable - USA / Canada, 115VAC | $57.00 | |
| PTC125:opt:60F136 | Mains cable - UK, 240VAC | $57.00 | |
| PTC125:opt:60F137 | Mains cable - South Africa, 220VAC | $57.00 | |
| PTC125:opt:60F138 | Mains cable - Italy, 220VAC | $57.00 | |
| PTC125:opt:60F139 | Mains cable - Australia, 240VAC | $57.00 | |
| PTC125:opt:60F140 | Mains cable - European, 230VAC | $57.00 | |
| PTC125:opt:60F141 | Mains cable - Denmark, 230VAC | $57.00 | |
| PTC125:opt:60F142 | Mains cable - Switzerland, 220VAC | $57.00 | |
| PTC125:opt:60F143 | Mains cable - Israel, 230VAC | $57.00 | |
| PTC125:opt:60F170 | Tool for Insert | $40.00 | |
| PTC125:power:115 | 115VAC, 50/60Hz | Request a quote | |
| PTC125:power:230 | 230VAC, 50/60Hz | Request a quote | |
| PTC125:ref:R16 | STS-150 Reference Sensor, Diameter 4mm - Length 210mm, STS150A912EH | $2,006.00 | |
| PTC125:user-interface-functiona:U1 | Complete functionality Package (U1 is only available for B models) | $537.00 | |
| PTC125:version:A | Basic Model, Without Input | $25,750.00 | |
| PTC125:version:B | Full Model, Including Reference Sensor Input | $27,833.00 |
