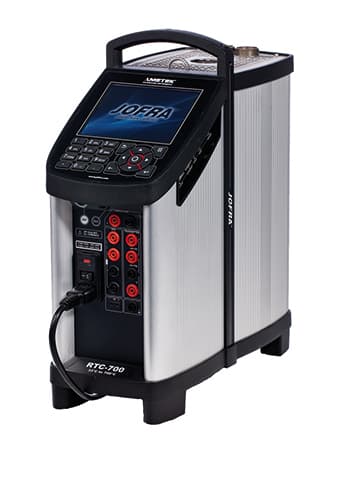

JOFRA RTC-700 Reference Temperature Calibrator
Model RTC700
JOFRA RTC-700 high-temperature reference dry-block calibrator, 33 to 700°C, with triple-zone control and patented DLC.
From $15,194.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The RTC-700 is a high-temperature dry-block reference calibrator covering 33 to 700°C (91 to 1292°F). The JOFRA RTC Series is AMETEK’s most advanced portable reference temperature calibrator family, covering −100 to 700°C (−148 to 1292°F) across the series. Patented Dynamic Load Compensation delivers temperature uniformity in the insert when calibrating large or multiple sensors, and dual- or triple-zone control maintains homogeneity in the well. Accuracy is up to ±0.04°C with stability to ±0.005°C (model dependent). Every RTC model uses an advanced-simplicity interface available in English, German, Chinese, and Japanese, with Plug and Play intelligent reference sensors, fast heating and cooling, and JofraCal calibration software. Dry-block and combination dry-block/liquid-bath models are available.
Specifications
| Temperature | |
| Range (ambient 23°C) | 33 to 700°C / 91 to 1292°F |
| Range (ambient 0°C / 40°C) | 10 to 700°C / 50 to 700°C |
| Accuracy | |
| Accuracy, external STS-200 reference (models B and C) | ±0.11°C / ±0.2°F (33 to 660°C) |
| Accuracy, internal reference (models A, B and C) | ±0.29°C / ±0.52°F (33 to 660°C) |
| Stability | |
| Stability | ±0.008°C (33 to 125°C); ±0.015°C (125 to 425°C); ±0.02°C (425 to 700°C) |
| Axial homogeneity @ 60 mm | ±0.10°C (33 to 100°C); ±0.25°C (100 to 420°C); ±0.40°C (420 to 700°C) |
| Speed | |
| Heating time | 33 to 700°C in 45 minutes |
| Cooling time | 700 to 100°C in 43 min; 100 to 50°C in 17 min; 50 to 33°C in 20 min |
| Time to stability (approx.) | 10 minutes |
| Mechanical | |
| Immersion depth | 200 mm / 7.9 in |
| Insert dimensions | 29.8 mm OD × 210 mm |
| Dimensions (L × W × H) | 362 × 171 × 421 mm |
| Weight | 11.3 kg |
| Electrical | |
| Max power consumption | 1150 W |
| Interface | |
| Digital interface | USB 2.0 device port |
| Environmental | |
| Operating temperature | 0 to 40°C / 32 to 104°F |
| Protection class | IP-10 |
| Source | |
| Specification source | JOFRA RTC-700 datasheet (AMETEK STC), model RTC-700 |
Documents
Build your part number
Configure your RTC700
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model version, power supply, mains cable to build your part number.
Well / insert codes and prices are from the official JOFRA insert table for this well. Shipping and tax are confirmed when we review your order.
Ordering information
44 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| RTC700:acc:CT | Solid Protective Carrying Case with Trolley | $1,581.00 | |
| RTC700:acc:SR | Support Rod Set | Request a quote | |
| RTC700:acc:TR | Solid Protective Carrying Case with Trolley & Support Rod set | $2,448.00 | |
| RTC700:and-sensor-under-test-in:C | Middle Model, Including DLC Sensor Input, Reference Sensor Input | $17,663.00 | |
| RTC700:base:RTC700 | 33°C to 700°C with Standard Accessories | Request a quote | |
| RTC700:cable:A | European, 230V | Request a quote | |
| RTC700:cable:B | USA / CANADA, 115V | Request a quote | |
| RTC700:cable:C | UK, 240V | Request a quote | |
| RTC700:cable:D | South Africa, 220V | Request a quote | |
| RTC700:cable:E | Italy, 220V | Request a quote | |
| RTC700:cable:F | Australia, 240V | Request a quote | |
| RTC700:cable:G | Denmark, 230V | Request a quote | |
| RTC700:cable:H | Switzerland, 230V | Request a quote | |
| RTC700:cable:I | Israel, 230V | Request a quote | |
| RTC700:cert:EA | Full EURAMET Accredited Certificate - ISO17025 | $1,924.00 | |
| RTC700:cert:EAS | System Calibration - Full EURAMET Accredited Certificate - ISO17025 (Only with STS) | $2,310.00 | |
| RTC700:cert:EASD | System Calibration - Full EURAMET Accredited Certificate w. DLC - ISO17025 (Only with STS) | $2,494.00 | |
| RTC700:cert:H | Accredited Certificate - ISO17025 | Request a quote | |
| RTC700:cert:HS | System Calibration - Accredited Certificate - ISO17025 (Only with STS) | $1,079.00 | |
| RTC700:dlc:DLC | DLC - Dynamic Load Compensation Sensor | $1,398.00 | |
| RTC700:insert:MXX | 1 x Multi Hole Insert (Please see Insert Selection for correct code) | $776.00 | |
| RTC700:insert:NON | Without Insert (Standard delivery) | Request a quote | |
| RTC700:insert:SIM | Complete Set of Imperial Inserts (Please see Insert Selection for holes) | $5,120.00 | |
| RTC700:insert:SIX | Set of Imperial Multi Inserts (Please see Insert Selection for holes) | $2,094.00 | |
| RTC700:insert:SMM | Complete Set of Metric Inserts (Please see Insert Selection for holes) | $7,957.00 | |
| RTC700:insert:SMX | Set of Metric Multi Inserts (Please see Insert Selection for holes) | $3,148.00 | |
| RTC700:insert:UNX | 1 x Undrilled Insert (Please see Insert Selection for correct code) | $530.00 | |
| RTC700:insert:XXX | 1 x Single Hole Insert (Please see Insert Selection for correct code) | $589.00 | |
| RTC700:opt:60F135 | Mains cable - USA / Canada, 115VAC | $57.00 | |
| RTC700:opt:60F136 | Mains cable - UK, 240VAC | $57.00 | |
| RTC700:opt:60F137 | Mains cable - South Africa, 220VAC | $57.00 | |
| RTC700:opt:60F138 | Mains cable - Italy, 220VAC | $57.00 | |
| RTC700:opt:60F139 | Mains cable - Australia, 240VAC | $57.00 | |
| RTC700:opt:60F140 | Mains cable - European, 230VAC | $57.00 | |
| RTC700:opt:60F141 | Mains cable - Denmark, 230VAC | $57.00 | |
| RTC700:opt:60F142 | Mains cable - Switzerland, 220VAC | $57.00 | |
| RTC700:opt:60F143 | Mains cable - Israel, 230VAC | $57.00 | |
| RTC700:opt:60F170 | Tool for Insert | $40.00 | |
| RTC700:power:115 | 115VAC, 50/60Hz | Request a quote | |
| RTC700:power:230 | 230VAC, 50/60Hz | Request a quote | |
| RTC700:ref:R4 | STS-200 Reference Sensor, Diameter 4mm - Length 240mm, STS200A970EH | $2,252.00 | |
| RTC700:ref:R5 | STS-200 Reference Sensor, Diameter 1/4 Inch - Length 240mm, STS200B970EH | $2,655.00 | |
| RTC700:version:A | Basic Model, Without Input | $15,194.00 | |
| RTC700:version:B | Full Model, Including DLC Sensor Input, Reference Sensor Input and Sensor Under Test Input | $18,502.00 |
