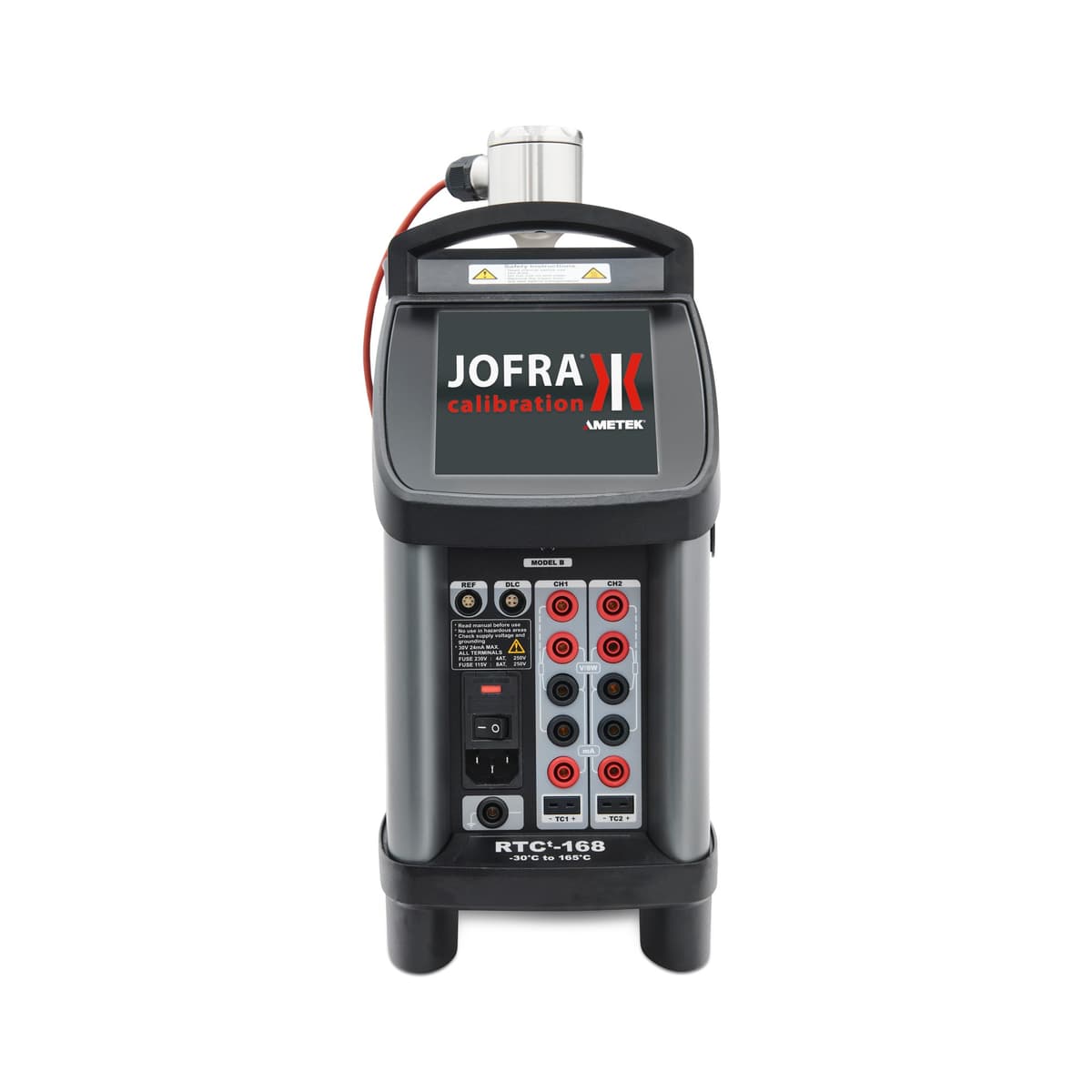

JOFRA RTCt-168 Reference Temperature Calibrator
JOFRA RTCt-168 combination dry-block and bath calibrator, −30 to 165°C, with touchscreen control, Wi-Fi, and DLC.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The RTCt-168 covers −30 to 165°C (−22 to 329°F) as a dual-zone dry-block and bath calibrator with DLC. The RTCt Series delivers advanced dry-block calibration performance for professionals who need high stability and a streamlined user experience from deep-cold through elevated temperatures. A shared platform across the series provides consistent operation, an intuitive touchscreen with real-time adaptive graphing, and Wi-Fi for browser-based monitoring and control. Patented Dynamic Load Compensation (DLC) monitors and compensates for thermal differences caused by sensor mass or multiple probes. Most models allow simultaneous calibration of two sensors. Flexible workflows include Auto Step (up to 20 programmable steps), switch testing with automatic open/close/hysteresis capture on Model B, and a built-in screenshot for documentation. JofraCal software automates sensor calibration routines and certificate generation.
Specifications
| Temperature | |
| Range, dry and liquid (ambient 0°C or 23°C) | −30 to 165°C / −22 to 329°F |
| Range, liquid in container (ambient 23°C) | −26 to 160°C / −15 to 320°F |
| Type | |
| Configuration | Dry block & bath, dual heating zones (wet/dry), DLC |
| Accuracy | |
| Accuracy, external STS-200 reference (models B and C) | ±0.045°C / ±0.081°F in insert, bath or bath in container |
| Total system accuracy, 12 months (incl. STS sensor and calibration uncertainty) | ±0.070°C in insert; ±0.060°C in bath |
| Accuracy, internal reference | ±0.18°C in insert; ±0.14°C in bath (calibrated in bath) |
| Stability | |
| Stability | ±0.01°C / ±0.018°F (block, bath, bath in container) |
| Radial uniformity | Block 0.02°C @ −30°C, 0.03°C @ 165°C; bath 0.015°C (−20 to 165°C) |
| Speed | |
| Heating time | −30 to 23°C in 5 min; 23 to 100°C in 10 min; 100 to 165°C in 12 min |
| Cooling time | 165 to 100°C in 12 min; 100 to 23°C in 22 min; 23 to 0°C in 13 min; 0 to −15°C in 17 min; −15 to −30°C in 47 min |
| Time to stability (approx.) | Block 30 min; bath 15 min; bath in container 30 min |
| Mechanical | |
| Immersion depth | 180 mm incl. insulation plug; 150 mm bath version |
| Dimensions (L × W × H) | 366 × 171 × 363 mm / 14.4 × 6.7 × 14.3 in |
| Weight | 10.9 kg / 24.0 lb |
| Electrical | |
| Max power consumption | 400 VA |
| Interface | |
| Digital interface | USB 2.0 device port |
| Environmental | |
| Protection class | IP-10 |
| Source | |
| Specification source | JOFRA RTCt-168 datasheet (AMETEK STC), model RTCt-168 |
Documents
Build your part number
Configure your RTCT168
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model version, power supply, mains cable to build your part number.
Well / insert codes and prices are from the official JOFRA insert table for this well. Shipping and tax are confirmed when we review your order.
Ordering information
41 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| RTCT168:acc:CT | Solid Protective Carrying Case with Trolley | $1,581.00 | |
| RTCT168:acc:SR | Support Rod Set | $867.00 | |
| RTCT168:acc:TR | Solid Protective Carrying Case with Trolley & Support Rod set | $2,448.00 | |
| RTCT168:base:RTCT168 | Temperature Range from -30°C to 165°C | Request a quote | |
| RTCT168:cable:A | European, 230V | Request a quote | |
| RTCT168:cable:B | USA / CANADA, 115V | Request a quote | |
| RTCT168:cable:C | UK, 240V | Request a quote | |
| RTCT168:cable:D | South Africa, 220V | Request a quote | |
| RTCT168:cable:E | Italy, 220V | Request a quote | |
| RTCT168:cable:F | Australia, 240V | Request a quote | |
| RTCT168:cable:G | Denmark, 230V | Request a quote | |
| RTCT168:cable:H | Switzerland, 230V | Request a quote | |
| RTCT168:cable:I | Israel, 230V | Request a quote | |
| RTCT168:cert:EA | Full EURAMET Accredited Certificate - ISO17025 | $1,924.00 | |
| RTCT168:cert:EAS | System Calibration - Full EURAMET Accredited Certificate - ISO17025 (Only with STS) | $2,310.00 | |
| RTCT168:cert:EASD | System Calibration - Full EURAMET Accredited Certificate w. DLC - ISO17025 (Only with STS) | $2,494.00 | |
| RTCT168:cert:H | Accredited Certificate - ISO17025 | Request a quote | |
| RTCT168:cert:HL | Accredited Certificate - ISO17025 - In Liquid | $782.00 | |
| RTCT168:cert:HS | System Calibration - Accredited Certificate - ISO17025 (Only with STS) | $1,079.00 | |
| RTCT168:cert:HSCL | System Calibration - Accredited Certificate - ISO17025 (Only with STS) - In Container Liquid | $1,104.00 | |
| RTCT168:cert:HSL | System Calibration - Accredited Certificate - ISO17025 (Only with STS) - In Liquid | $1,104.00 | |
| RTCT168:dlc:DLC | DLC - Dynamic Load Compensation Sensor | $1,398.00 | |
| RTCT168:insert:NON | Without Insert (Standard delivery) | Request a quote | |
| RTCT168:opt:60F135 | Mains cable - USA / Canada, 115VAC | $57.00 | |
| RTCT168:opt:60F136 | Mains cable - UK, 240VAC | $57.00 | |
| RTCT168:opt:60F137 | Mains cable - South Africa, 220VAC | $57.00 | |
| RTCT168:opt:60F138 | Mains cable - Italy, 220VAC | $57.00 | |
| RTCT168:opt:60F139 | Mains cable - Australia, 240VAC | $57.00 | |
| RTCT168:opt:60F140 | Mains cable - European, 230VAC | $57.00 | |
| RTCT168:opt:60F141 | Mains cable - Denmark, 230VAC | $57.00 | |
| RTCT168:opt:60F142 | Mains cable - Switzerland, 220VAC | $57.00 | |
| RTCT168:opt:60F143 | Mains cable - Israel, 230VAC | $57.00 | |
| RTCT168:opt:60F170 | Tool for Insert | $40.00 | |
| RTCT168:power:115 | 115VAC, 50/60Hz | Request a quote | |
| RTCT168:power:230 | 230VAC, 50/60Hz | Request a quote | |
| RTCT168:ref:R24 | STS-200 Reference Sensor, Diameter 4mm - Length 201mm, STS200A919EH | $2,252.00 | |
| RTCT168:ref:R25 | STS-200 Reference Sensor, Diameter 1/4 Inch - Length 201mm, STS200B919EH | $2,655.00 | |
| RTCT168:ref:R26 | STS-102 Reference Sensor, Diameter 4mm - Length 35mm, STS102A035EH | $1,608.00 | |
| RTCT168:version:A | Basic Model, Without Input | $19,126.00 | |
| RTCT168:version:B | Full Model, Including DLC Sensor Input, Reference Sensor Input and Sensor Under Test Input | $22,287.00 | |
| RTCT168:version:C | Middle Model, Including DLC Sensor Input, Reference Sensor Input | $21,492.00 |
