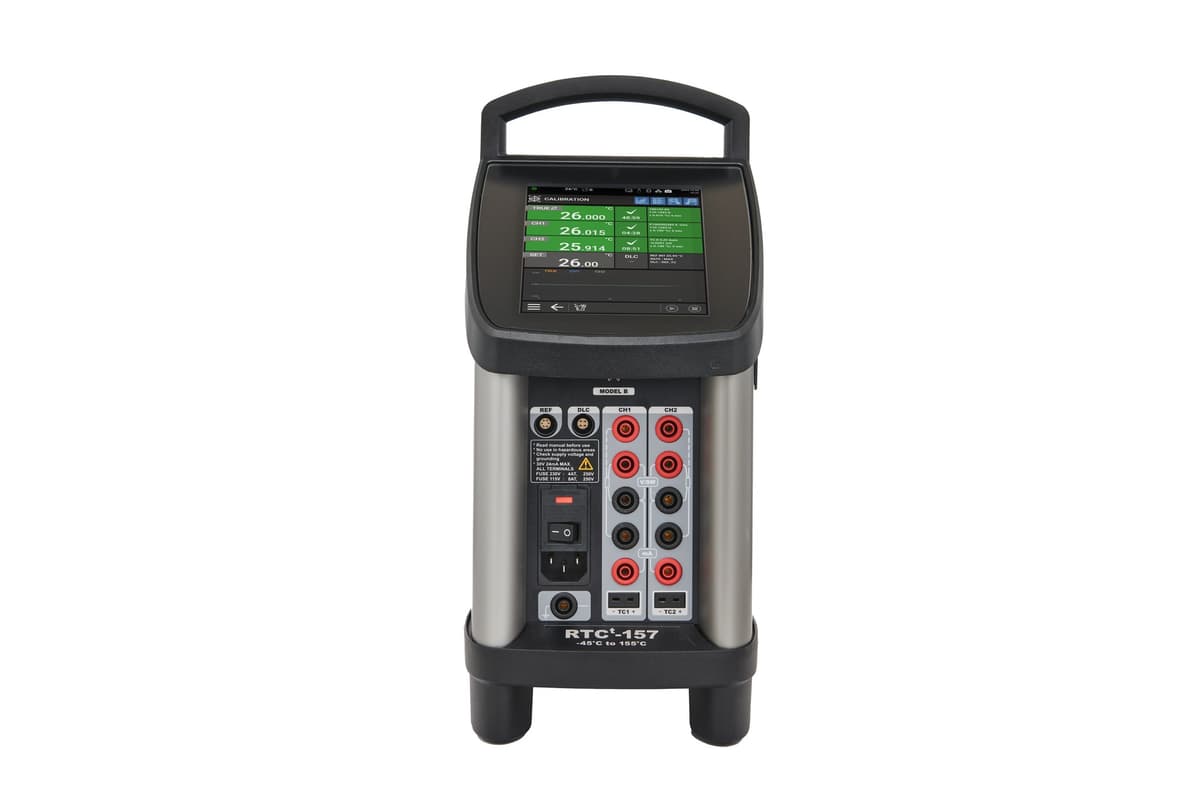

JOFRA RTCt-157 Reference Temperature Calibrator
JOFRA RTCt-157 reference dry-block calibrator, −45 to 155°C, with touchscreen workflows, Wi-Fi, dual-sensor inputs, and DLC.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The RTCt-157 covers −45 to 155°C (−49 to 311°F) as a dual-zone dry block with DLC. The RTCt Series delivers advanced dry-block calibration performance for professionals who need high stability and a streamlined user experience from deep-cold through elevated temperatures. A shared platform across the series provides consistent operation, an intuitive touchscreen with real-time adaptive graphing, and Wi-Fi for browser-based monitoring and control. Patented Dynamic Load Compensation (DLC) monitors and compensates for thermal differences caused by sensor mass or multiple probes. Most models allow simultaneous calibration of two sensors. Flexible workflows include Auto Step (up to 20 programmable steps), switch testing with automatic open/close/hysteresis capture on Model B, and a built-in screenshot for documentation. JofraCal software automates sensor calibration routines and certificate generation.
Specifications
| Temperature | |
| Range (ambient 23°C) | −45 to 155°C / −49 to 311°F |
| Range (ambient 0°C / 40°C) | −57 to 155°C / −31 to 155°C |
| Type | |
| Configuration | Dry block, dual heating zones, DLC |
| Accuracy | |
| Accuracy, external STS-200 reference (models B and C) | ±0.040°C / ±0.072°F |
| Total system accuracy, 12 months (incl. STS sensor and calibration uncertainty) | ±0.065°C / ±0.117°F |
| Accuracy, internal reference (models A, B and C) | ±0.11°C / ±0.2°F |
| Stability | |
| Stability | ±0.005°C / ±0.009°F |
| Speed | |
| Heating time | −45 to 23°C in 7 minutes; 23 to 155°C in 17 minutes |
| Cooling time | 155 to 100°C in 5 min; 100 to 23°C in 10 min; 23 to −30°C in 17 min; −30 to −45°C in 20 min (155 to −45°C in 52 min) |
| Time to stability (approx.) | 10 minutes |
| Mechanical | |
| Immersion depth | 160 mm / 6.3 in |
| Dimensions (L × W × H) | 362 × 171 × 363 mm / 14.3 × 6.7 × 14.3 in |
| Weight | 10.3 kg / 22.7 lb |
| Electrical | |
| Max power consumption | 350 VA |
| Interface | |
| Digital interface | USB 2.0 device port |
| Environmental | |
| Protection class | IP-10 |
| Source | |
| Specification source | JOFRA RTCt-156/157 datasheet (AMETEK STC), model RTCt-157 |
Documents
Build your part number
Configure your RTCT157
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model version, power supply, mains cable to build your part number.
Well / insert codes and prices are from the official JOFRA insert table for this well. Shipping and tax are confirmed when we review your order.
Ordering information
38 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| RTCT157:acc:CT | Solid Protective Carrying Case with Trolley | $1,482.00 | |
| RTCT157:acc:SR | Support Rod Set | $867.00 | |
| RTCT157:acc:TR | Solid Protective Carrying Case with Trolley & Support Rod set | $2,348.00 | |
| RTCT157:base:RTCT157 | Temperature Range from -45°C to 155°C | Request a quote | |
| RTCT157:cable:A | European, 230V | Request a quote | |
| RTCT157:cable:B | USA / CANADA, 115V | Request a quote | |
| RTCT157:cable:C | UK, 240V | Request a quote | |
| RTCT157:cable:D | South Africa, 220V | Request a quote | |
| RTCT157:cable:E | Italy, 220V | Request a quote | |
| RTCT157:cable:F | Australia, 240V | Request a quote | |
| RTCT157:cable:G | Denmark, 230V | Request a quote | |
| RTCT157:cable:H | Switzerland, 230V | Request a quote | |
| RTCT157:cable:I | Israel, 230V | Request a quote | |
| RTCT157:cert:EA | Full EURAMET Accredited Certificate - ISO17025 | $1,924.00 | |
| RTCT157:cert:EAS | System Calibration - Full EURAMET Accredited Certificate - ISO17025 (Only with STS) | $2,310.00 | |
| RTCT157:cert:EASD | System Calibration - Full EURAMET Accredited Certificate w. DLC - ISO17025 (Only with STS) | $2,494.00 | |
| RTCT157:cert:H | Accredited Certificate - ISO17025 | Request a quote | |
| RTCT157:cert:HS | System Calibration - Accredited Certificate - ISO17025 (Only with STS) | $1,079.00 | |
| RTCT157:dlc:DLC | DLC - Dynamic Load Compensation Sensor | $1,398.00 | |
| RTCT157:insert:NON | Without Insert (Standard delivery) | Request a quote | |
| RTCT157:opt:60F135 | Mains cable - USA / Canada, 115VAC | $57.00 | |
| RTCT157:opt:60F136 | Mains cable - UK, 240VAC | $57.00 | |
| RTCT157:opt:60F137 | Mains cable - South Africa, 220VAC | $57.00 | |
| RTCT157:opt:60F138 | Mains cable - Italy, 220VAC | $57.00 | |
| RTCT157:opt:60F139 | Mains cable - Australia, 240VAC | $57.00 | |
| RTCT157:opt:60F140 | Mains cable - European, 230VAC | $57.00 | |
| RTCT157:opt:60F141 | Mains cable - Denmark, 230VAC | $57.00 | |
| RTCT157:opt:60F142 | Mains cable - Switzerland, 220VAC | $57.00 | |
| RTCT157:opt:60F143 | Mains cable - Israel, 230VAC | $57.00 | |
| RTCT157:opt:60F170 | Tool for Insert | $40.00 | |
| RTCT157:power:115 | 115VAC, 50/60Hz | Request a quote | |
| RTCT157:power:230 | 230VAC, 50/60Hz | Request a quote | |
| RTCT157:ref:R1 | STS-102 Reference Sensor, Diameter 4mm - Length 30mm, STS102A030EH | $1,436.00 | |
| RTCT157:ref:R2 | STS-200 Reference Sensor, Diameter 4mm - Length 179mm, STS200A915EH | $2,252.00 | |
| RTCT157:ref:R3 | STS-200 Reference Sensor, Diameter 1/4 Inch - Length 179mm, STS200B915EH | $2,655.00 | |
| RTCT157:version:A | Basic Model, Without Input | $17,067.00 | |
| RTCT157:version:B | Full Model, Including DLC Sensor Input, Reference Sensor Input and Sensor Under Test Input | $19,993.00 | |
| RTCT157:version:C | Middle Model, Including DLC Sensor Input, Reference Sensor Input | $19,096.00 |
