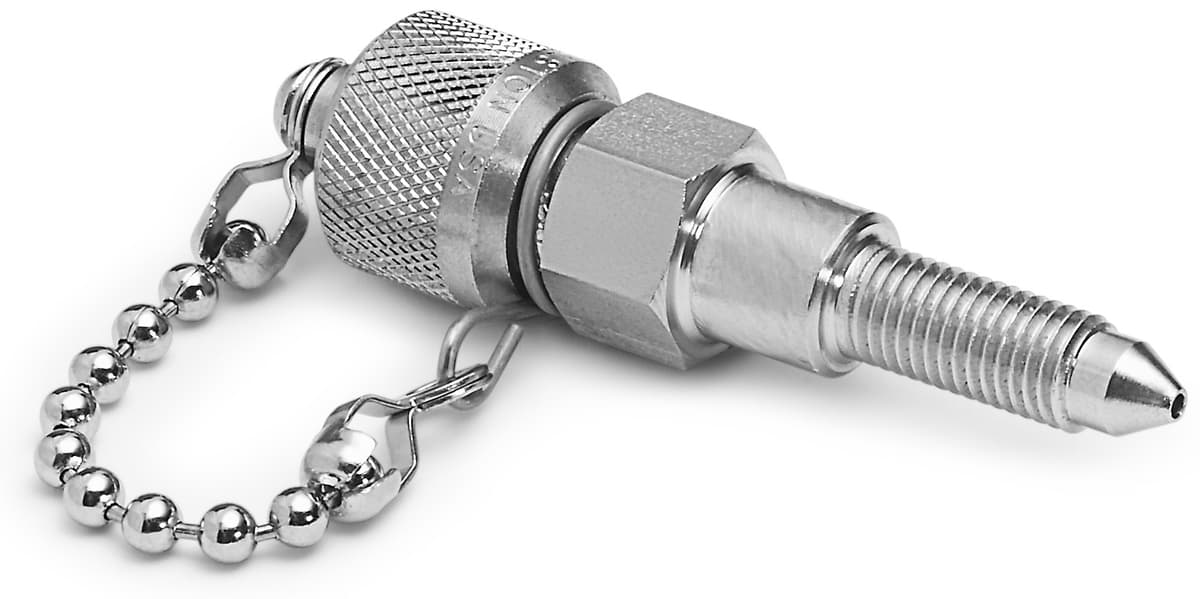

Ralston DP Transmitter Quick-test Fittings
Bleed-port × male Quick-test fittings with cap and chain for DP transmitters and gauge valves — up to 5,000 psi
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
DP Transmitter Quick-test fittings connect a Quick-test hose to a transmitter or gauge-valve bleed port and include a cap and chain on the Quick-test end.
- Match the bleed-port thread on your transmitter or manifold
- Male Quick-test with cap and chain
- Max pressure 5,000 psi / 350 bar / 35 MPa
- Stainless steel
- Made in USA

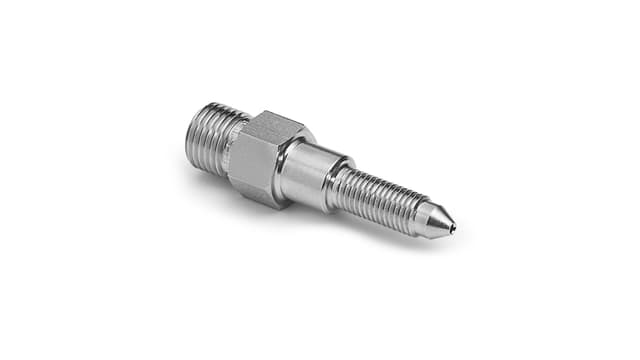

For adapters without cap and chain see DP Transmitter Quick-test Adapters. For XT hose see the XT fittings page.
Part of the Ralston Quick-test system of safe, stable, leak-free connections.
Shipping and tax are confirmed when we review your order.
OEM family: DP Transmitter Quick-test Fittings (https://www.ralstoninst.com/dp-transmitter-quick-test-fittings).
Specifications
| Family | DP Transmitter Quick-test Fittings |
| Process connection | Transmitter / gauge-valve bleed port (thread varies by model) |
| Hose connection | Male Quick-test with cap and chain |
| Max pressure | 5,000 psi / 350 bar / 35 MPa |
| Materials | Stainless steel |
| Country of origin | USA |
Build your part number
Configure your QTFT-DP
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model to build your part number.
Choose the bleed-port thread. Same threads as the DP Quick-test adapters family, with cap and chain on the Quick-test end. Shipping and tax are confirmed when we review your order.
Ordering information
8 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| QTFT-ABS0 | M6 x 0.75 MM x male Quick-test, with cap and chain, S.S. | $98.26 | |
| QTFT-EHS0 | DP Transmittter Quick-test fitting for DP Transmitters with M8 x 1.25 bleed plugs | $139.24 | |
| QTFT-FRS0 | 5/16"-24 UNF x male Quick-test, with cap and chain, S.S. | $72.33 | |
| QTFT-FRS0-SN | 5/16"-24 UNF (Short threads) x male Quick-test, with cap and chain, S.S. | $119.93 | |
| QTFT-HNS0 | 1/4"-28 UNF x male Quick-test, with cap and chain, S.S. | $77.19 | |
| QTFT-NPS0 | 1/4"-20 UNC Male Bleed Port x male Quick-test adapter, with cap and chain, S.S. | $128.93 | |
| QTFT-RGS0 | M8 x 1.0 gauge valve bleed port x male Quick-test adapter, with cap and chain, S.S. | $128.93 | |
| QTFT-SES0 | M6 x 1mm Transmitter x Male QT Adapter, S.S. with cap and chain | $117.32 |
