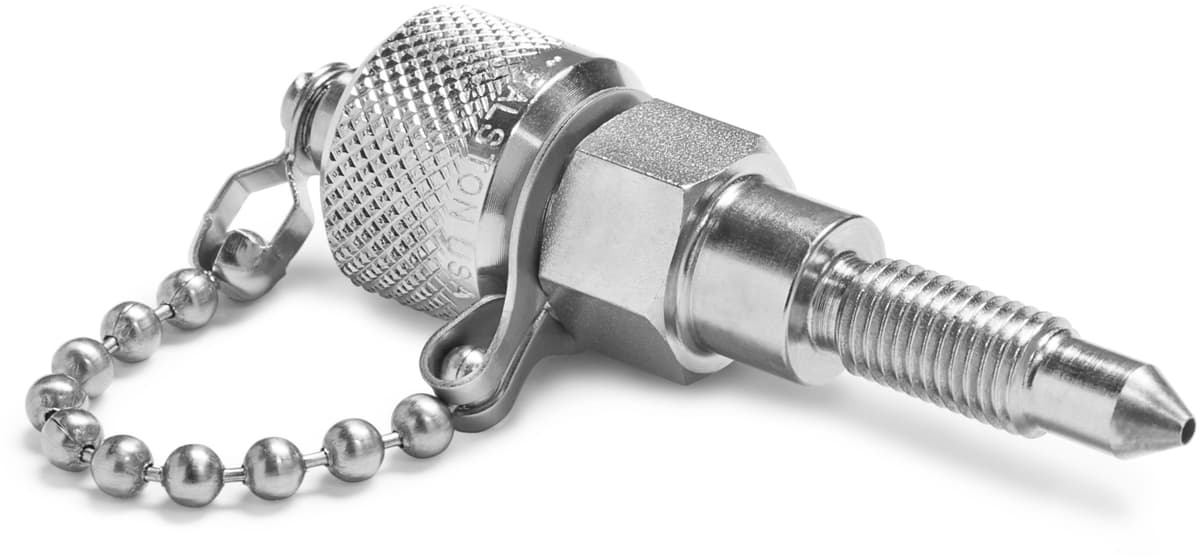

Ralston DP Transmitter Quick-test XT Fittings
Bleed-port × male Quick-test XT fittings with cap and chain for high-pressure DP work — up to 10,000 psi
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
DP Transmitter Quick-test XT fittings connect Quick-test XT hose to a transmitter or gauge-valve bleed port and include a cap and chain.
- 5/16"-24 UNF or 1/4"-28 UNF bleed-port threads
- Male Quick-test XT with cap and chain
- Max pressure 10,000 psi / 700 bar / 70 MPa
- Stainless steel
- Made in USA
Part of the Ralston Quick-test XT system.
Shipping and tax are confirmed when we review your order.
OEM family: DP Transmitter Quick-test XT Fittings (https://www.ralstoninst.com/dp-transmitter-quick-test-xt-fittings).
Specifications
| Family | DP Transmitter Quick-test XT Fittings |
| Hose connection | Male Quick-test XT with cap and chain |
| Max pressure | 10,000 psi / 700 bar / 70 MPa |
| Materials | Stainless steel |
| Country of origin | USA |
Build your part number
Configure your XTFT-DP
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model to build your part number.
Choose the bleed-port thread. For Quick-test XT hose only. Shipping and tax are confirmed when we review your order.
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| XTFT-FRS0 | 5/16"-24 UNF DP Transmitter x male Quick-test XT fitting, with cap and chain, 316 S.S. | $125.95 | |
| XTFT-HNS0 | 1/4"-28 UNF DP Transmitter x male Quick-test XT fitting with cap and chain, 316 S.S. | $119.09 |
